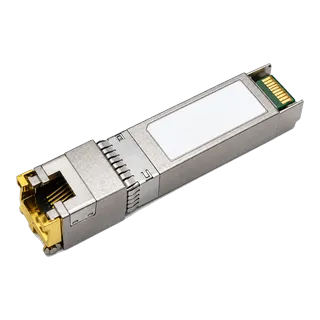

SFP-1G-T 1000BASE-T Gigabit Copper RJ45 Transceiver
SFP-1G-T | 1000BASE-T Gigabit Copper RJ45 Transceiver (10/100/1000M)
The SFP-1G-T is a Gigabit SFP copper transceiver with an RJ45 electrical interface, delivering 1000BASE-T over Cat5e/Cat6 copper up to 100 m with 10/100/1000M auto-negotiation. Running on 3.3 V at under 0.4 W and hot-pluggable, it brings Gigabit copper connectivity to switches and data center ports over existing cabling.

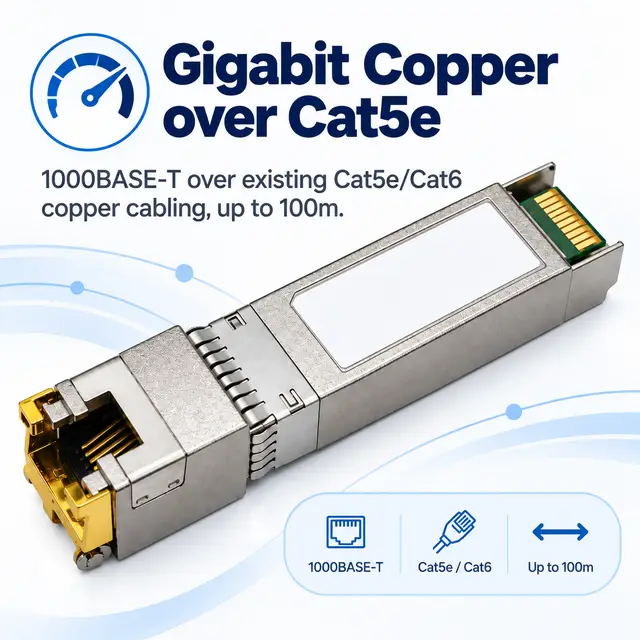

- Gigabit (1000BASE-T) over existing Cat5e/Cat6 copper, up to 100 m
- RJ45 copper interface (8-pin) — no fiber required

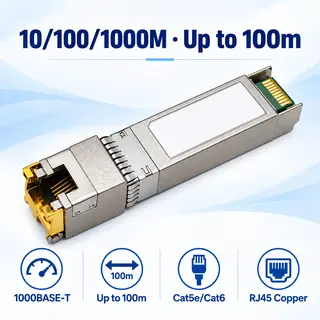

- 10/100/1000M auto-negotiation
- Low power (<0.4 W) at 3.3 V, hot-pluggable
- Data rate
- 1 Gbps (10/100/1000M auto-negotiation)
- Reach
- 100 m (Cat5e / Cat6)
- Interface
- RJ45 (Copper)
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
The SFP-1G-T is a Gigabit SFP copper transceiver with an RJ45 electrical interface, delivering 1000BASE-T over Cat5e/Cat6 copper up to 100 m with 10/100/1000M auto-negotiation. Running on 3.3 V at under 0.4 W and hot-pluggable, it brings Gigabit copper connectivity to switches and data center ports over existing cabling. CE / FCC / RoHS certified.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points

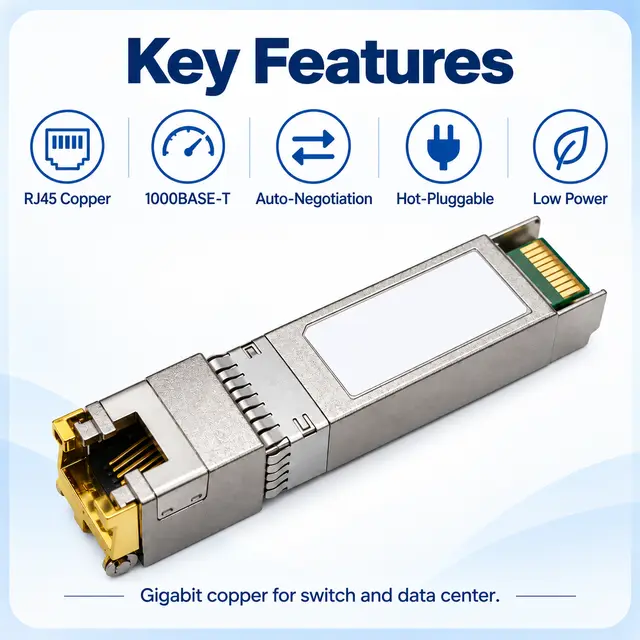

- Gigabit (1000BASE-T) over existing Cat5e/Cat6 copper, up to 100 m
- RJ45 copper interface (8-pin) — no fiber required
- 10/100/1000M auto-negotiation
- Low power (<0.4 W) at 3.3 V, hot-pluggable

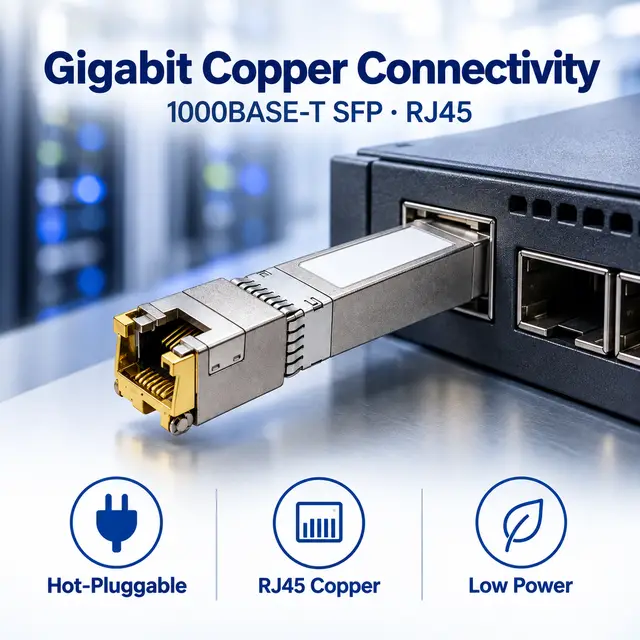

- Simple copper connectivity for switch and data center ports

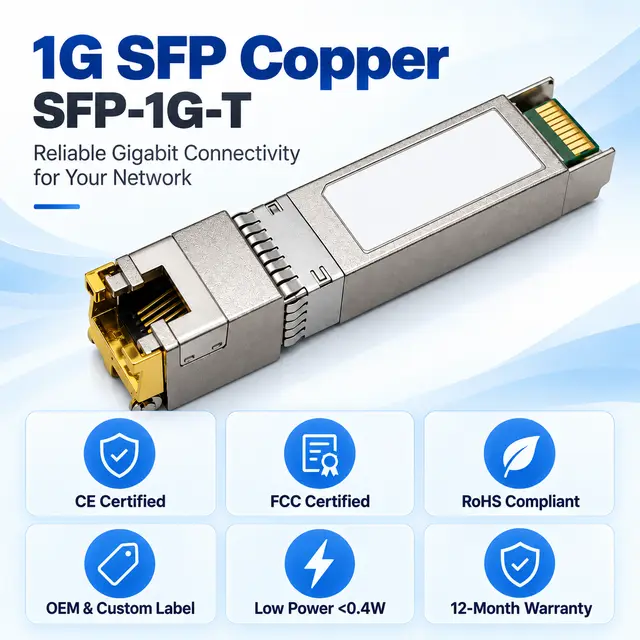

- CE / FCC / RoHS certified; OEM and custom label supported
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Model Number | SFP-1G-T |
| Data Rate | 1 Gbps (10/100/1000M auto-negotiation) |
| Connector Type | RJ45 (Copper) |
| Transmission Distance | 100 m (Cat5e / Cat6) |
| Supply Voltage | 3.3 V |
| Power Consumption | < 0.4 W |
| Form Factor | SFP, Hot-Pluggable |
| Operating Temperature | 0 ~ 70 °C |
| Application | Data Center, Switch |
| Certification | CE, FCC, RoHS |
| Warranty | 12 Months |

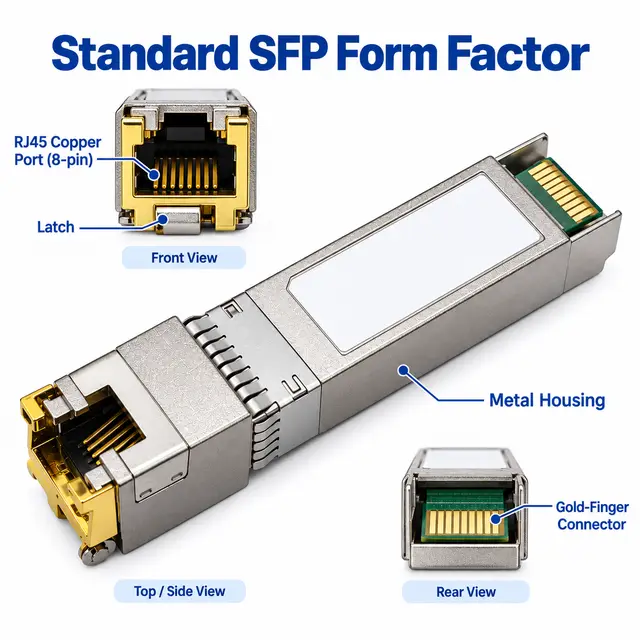

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

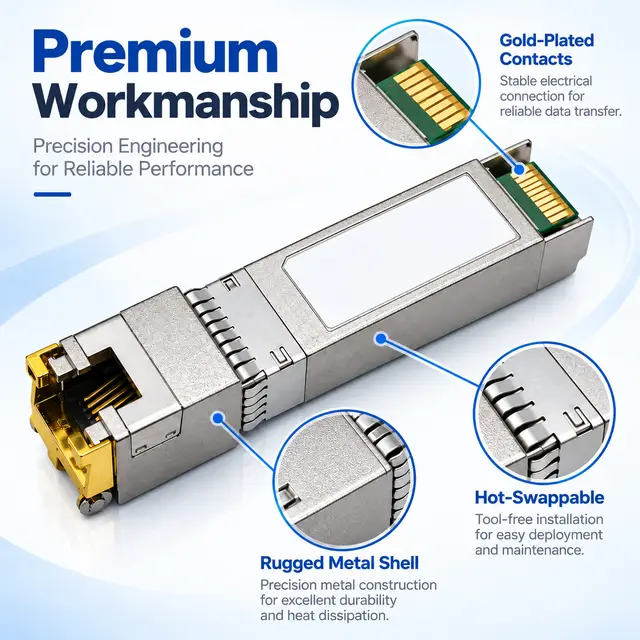

Build quality
Details that decide reliability.
Low-power design for dense switch deployments

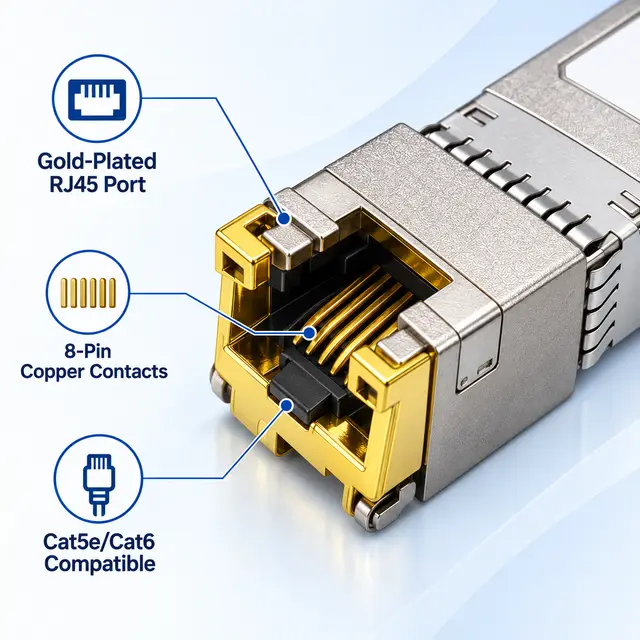

Gold-plated 8-pin RJ45 contacts for reliable connectivity
Hot-swappable, rugged metal housing
Where it is used
Typical applications.

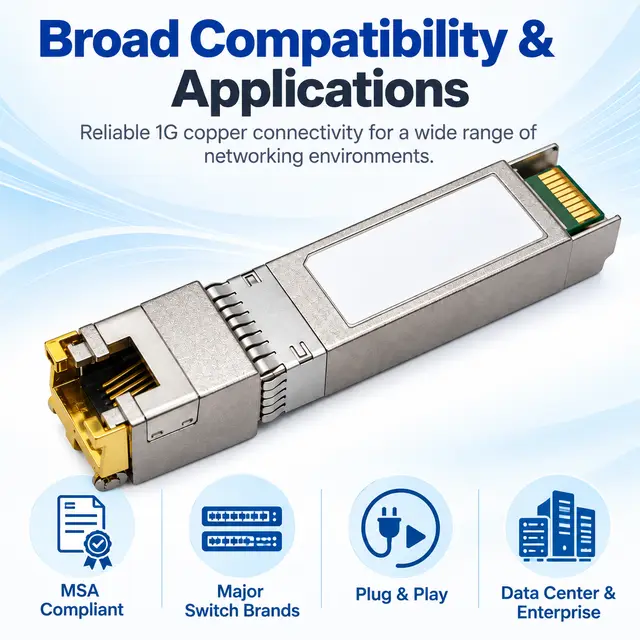

- Gigabit switch and data center copper connectivity
- Enterprise and campus network access
- Server and NIC Gigabit copper links
- Mixed copper/fiber environments
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
OEM / ODM
Customization options.
- OEM and custom label / coding supported
- Compatible coding for major switch brands on request
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- Model
- SFP-1G-T
- Note
- MOQ, lead time, and custom coding available on request
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the SFP-1G-T 1000BASE-T Gigabit Copper RJ45 Transceiver?
The listed reach is 100 m (Cat5e / Cat6). Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
What connector and fibre does it need?
The listed interface is RJ45 (Copper). Check that your patch cords, panel adapters and polarity match before installation.
Is an industrial temperature version available?
The listed operating temperature is 0 ~ 70 °C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
How much power does the module draw?
Listed power consumption is < 0.4 W. Confirm the per-port power budget of the host when a full chassis is populated, particularly for copper RJ45 modules and long-reach optics.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
