1.25G SFP UTP PoE Media Converter
1.25G SFP UTP PoE Media Converter (RJ45 to Fiber, PoE Output)
This 1.25G PoE media converter bridges optical fiber and copper Ethernet while delivering Power over Ethernet to connected devices. With an SFP fiber port and an RJ45 UTP interface, it converts fiber to Ethernet and powers IP cameras over a single cable — ideal for CCTV surveillance and weak-current security projects.

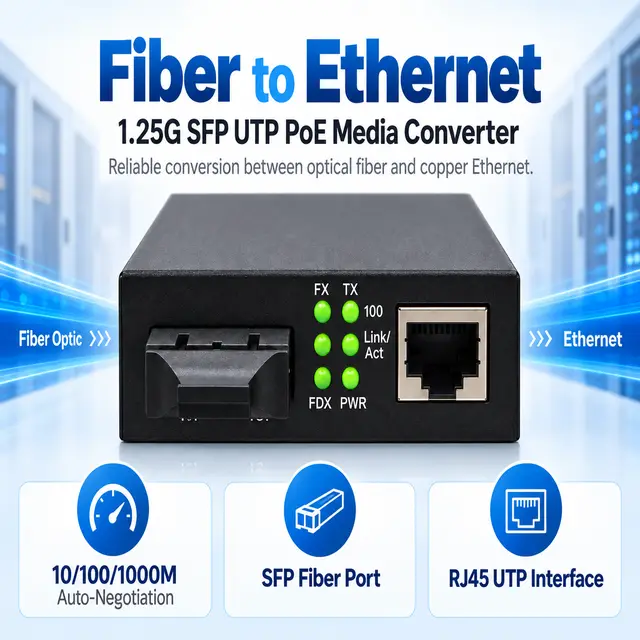

- **Fiber to Ethernet** — 10/100/1000M auto-negotiation between SFP fiber and RJ45 UTP.

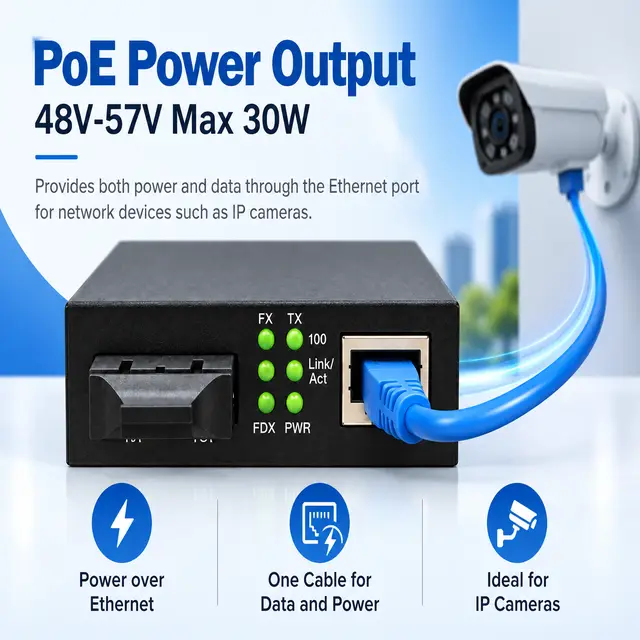

- **PoE Power Output** — 48V-57V, up to 30W; delivers data and power over one Ethernet cable to IP cameras.

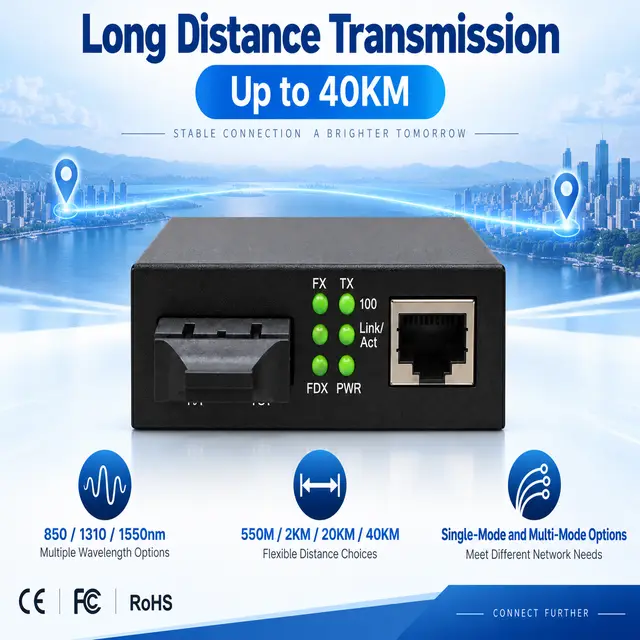

- **Long Distance** — Up to 40KM reach with 850/1310/1550nm single-mode or multi-mode options.

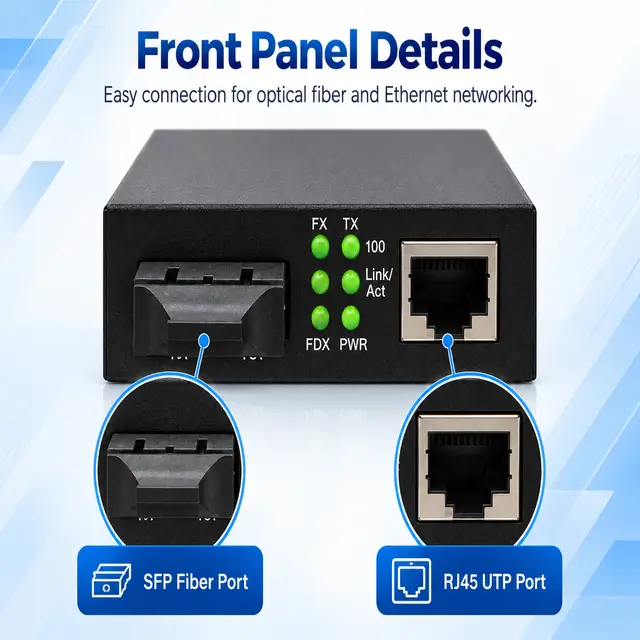

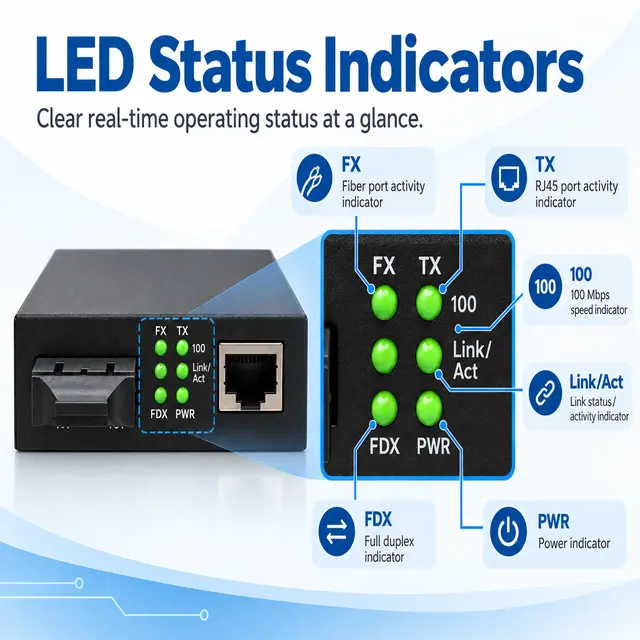

- **Plug and Play** — Clear FX/TX/100/Link-Act/FDX/PWR LED status indicators for instant diagnostics.
- Data rate
- 10/100/1000M
- Wavelength
- 850 / 1310 / 1550nm
- Reach
- up to 40KM (550M / 2KM / 20KM / 40KM)
- Interface
- SC / LC / ST / FC (Optional)
- Fibre / media
- SFP
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
This 1.25G PoE media converter bridges optical fiber and copper Ethernet while delivering Power over Ethernet to connected devices. With an SFP fiber port and an RJ45 UTP interface, it converts fiber to Ethernet and powers IP cameras over a single cable — ideal for CCTV surveillance and weak-current security projects. The durable iron housing and clear LED indicators make deployment simple and reliable.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- **Fiber to Ethernet** — 10/100/1000M auto-negotiation between SFP fiber and RJ45 UTP.
- **PoE Power Output** — 48V-57V, up to 30W; delivers data and power over one Ethernet cable to IP cameras.
- **Long Distance** — Up to 40KM reach with 850/1310/1550nm single-mode or multi-mode options.

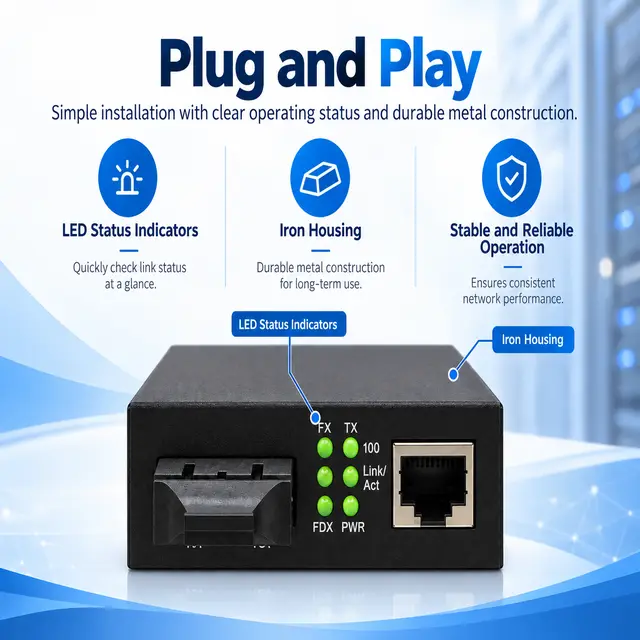

- **Plug and Play** — Clear FX/TX/100/Link-Act/FDX/PWR LED status indicators for instant diagnostics.

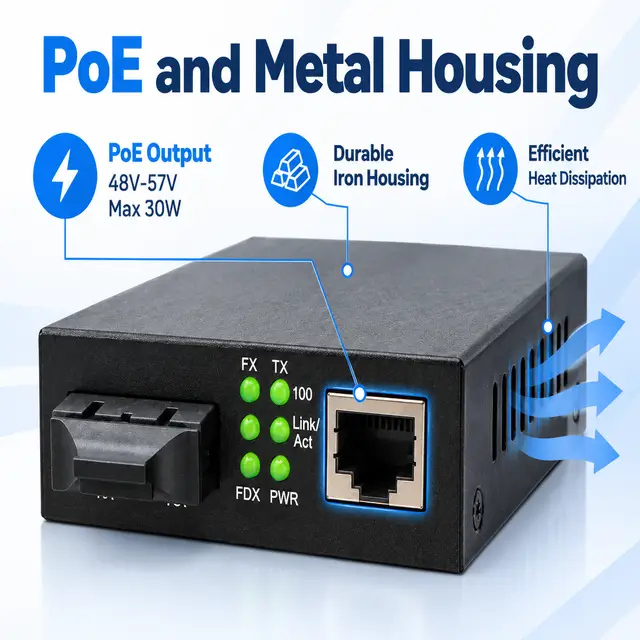

- **Durable Iron Housing** — Rugged metal construction with efficient heat dissipation for long-term use.
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

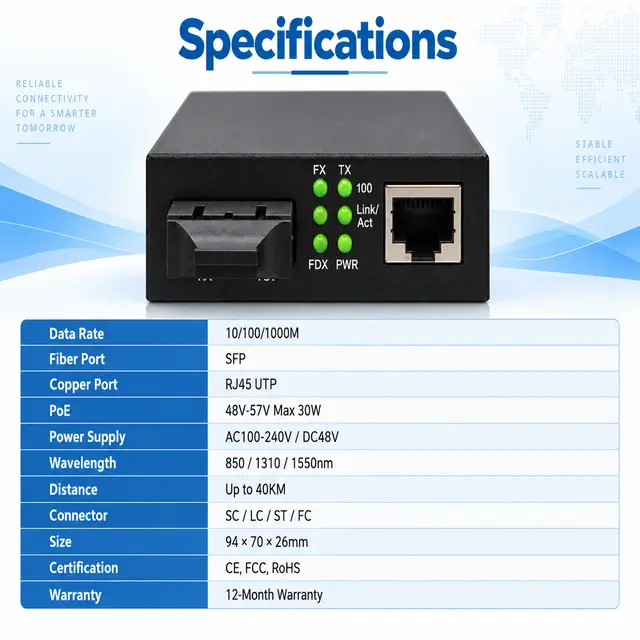

| Parameter | Listed value |
|---|---|
| Data Rate | 10/100/1000M |
| Fiber Port | SFP |
| Copper Port | RJ45 UTP |
| PoE | 48V-57V, Max 30W |
| Power Supply | AC 100-240V / DC 48V |
| Wavelength | 850 / 1310 / 1550nm |
| Transmission Distance | up to 40KM (550M / 2KM / 20KM / 40KM) |
| Fiber Connector | SC / LC / ST / FC (Optional) |
| Dimensions | 94 × 70 × 26mm |
| Certification | CE, FCC, RoHS |
| Warranty | 12-Month Warranty |
Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Where it is used
Typical applications.

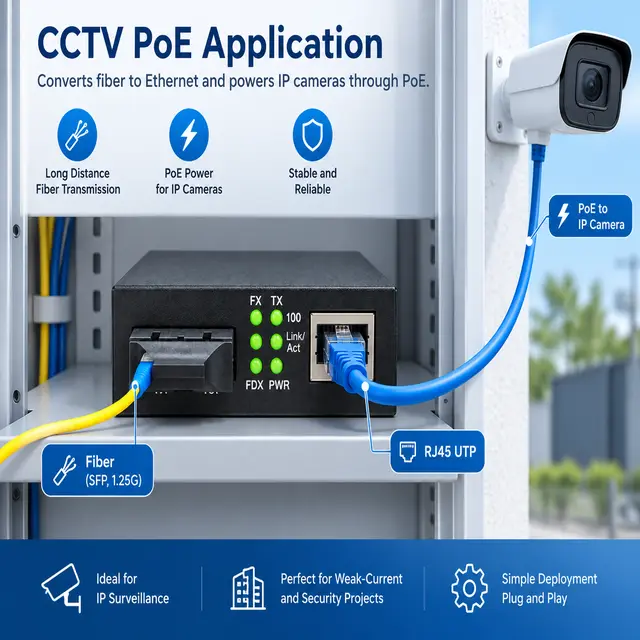

- CCTV / IP camera surveillance networks
- weak-current and security projects
- fiber-to-copper conversion with PoE power delivery
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
Ordering
What is confirmed, and what we need from you.
Listed ordering information
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 1.25G SFP UTP PoE Media Converter?
The listed reach is up to 40KM (550M / 2KM / 20KM / 40KM). Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 850 / 1310 / 1550nm. Both ends of a duplex link must use the same wavelength plan.
What connector and fibre does it need?
The listed interface is SC / LC / ST / FC (Optional) on SFP. Check that your patch cords, panel adapters and polarity match before installation.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
