Gigabit PoE IP Ethernet Switch — 4 PoE Ports + 1 Uplink
Gigabit PoE IP Ethernet Switch — 4 PoE Ports + 1 Uplink Port
This Gigabit PoE Ethernet switch delivers both data and power over standard network cabling, making it ideal for IP surveillance, wireless access points, and VoIP deployments. Four IEEE 802.3af/at PoE ports (up to 30W each) power and connect devices over a single cable, while the dedicated Gigabit uplink links back to your router or core network.

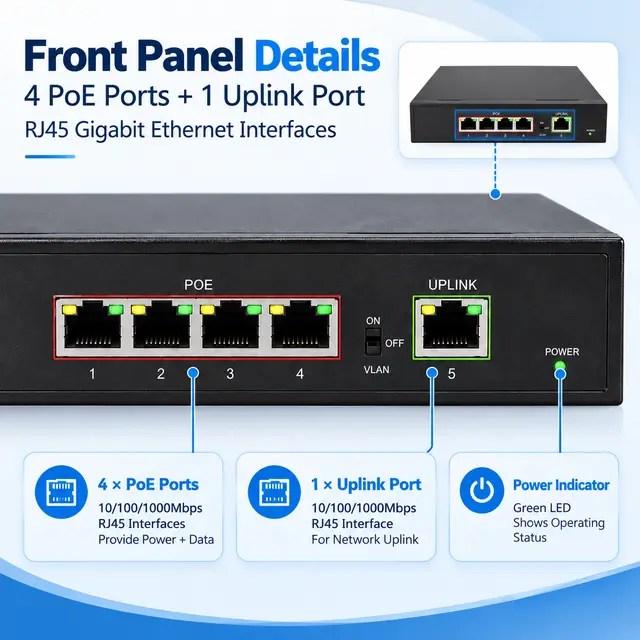

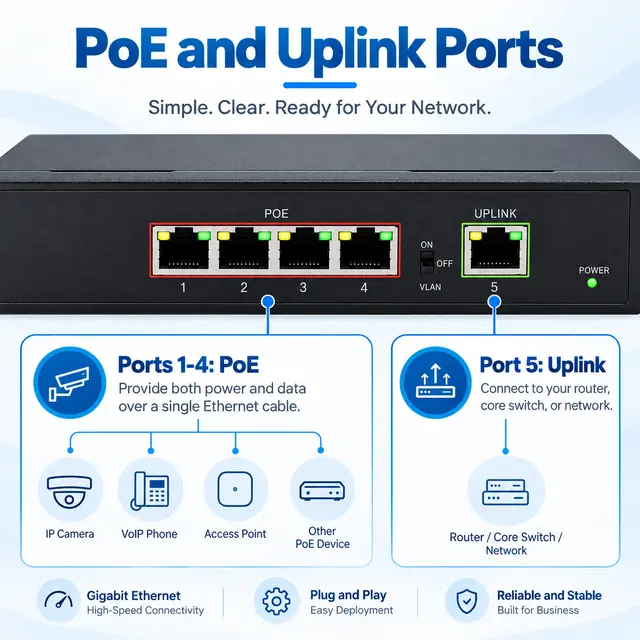

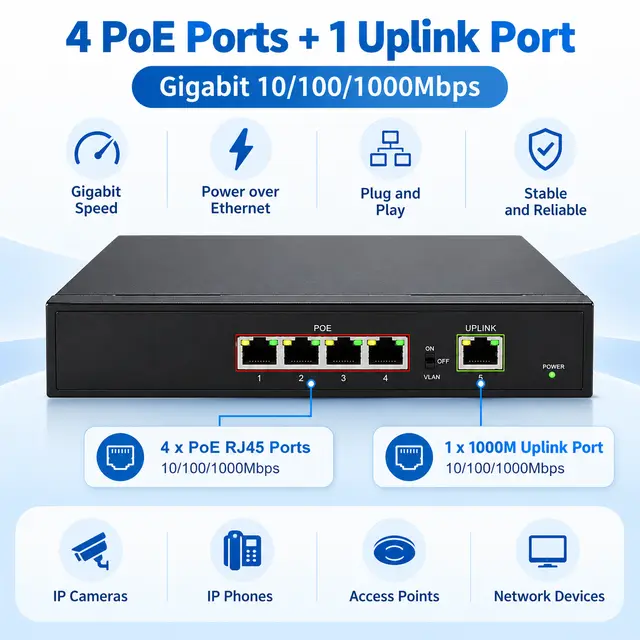

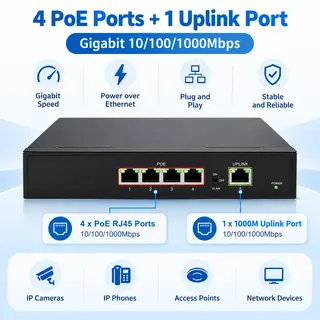

- **4 PoE + 1 Uplink** — Four Gigabit 10/100/1000Mbps PoE ports plus one 1000M RJ45 uplink.

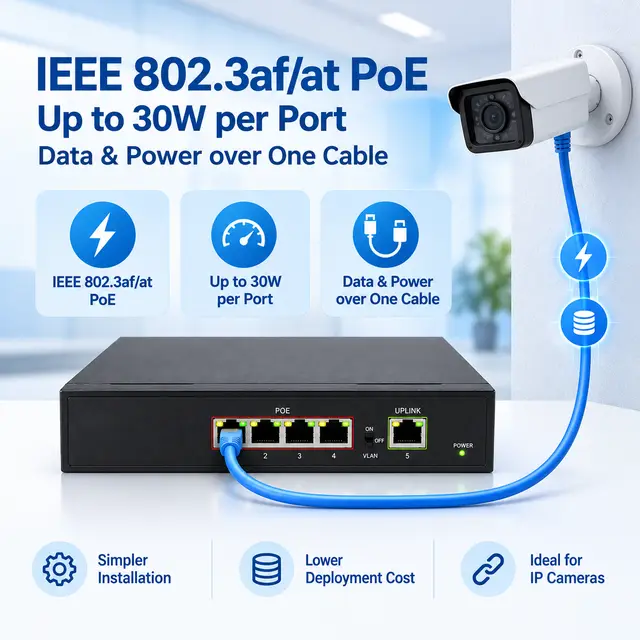

- **IEEE 802.3af/at PoE** — Up to 30W per port; data and power delivered over one cable.

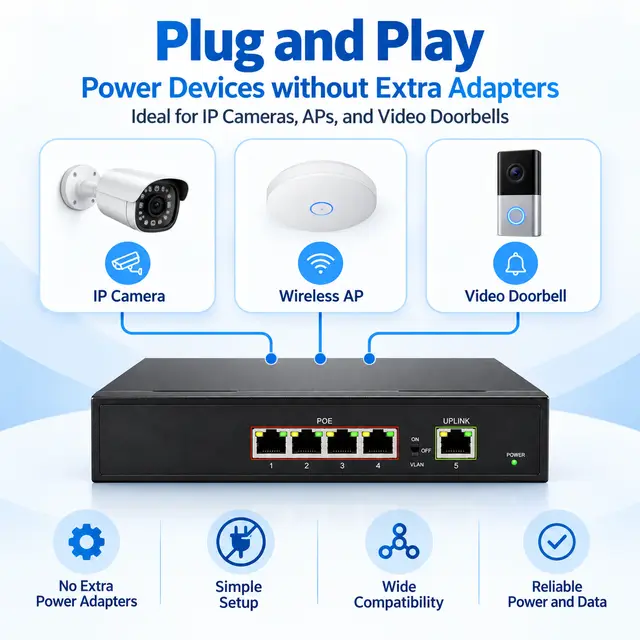

- **Plug and Play** — Powers IP cameras, APs, and video doorbells with no extra adapters.

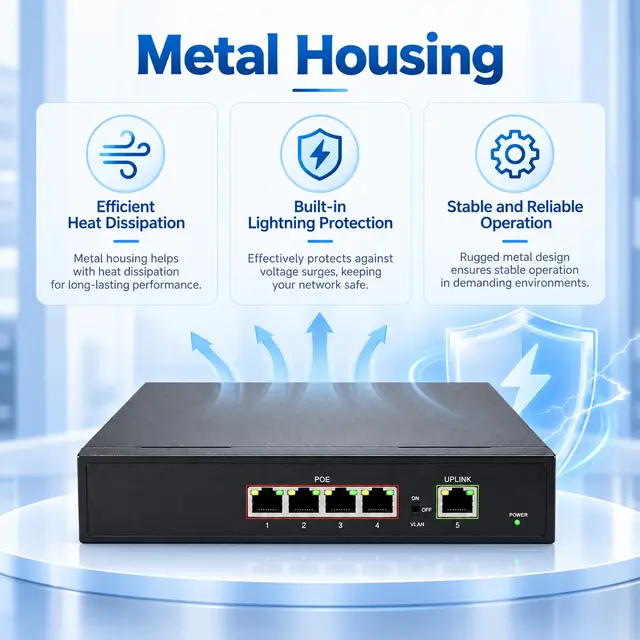

- **Metal Housing** — Efficient heat dissipation and built-in lightning protection for reliability.
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
This Gigabit PoE Ethernet switch delivers both data and power over standard network cabling, making it ideal for IP surveillance, wireless access points, and VoIP deployments. Four IEEE 802.3af/at PoE ports (up to 30W each) power and connect devices over a single cable, while the dedicated Gigabit uplink links back to your router or core network. The rugged metal housing ensures stable operation in demanding environments.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- **4 PoE + 1 Uplink** — Four Gigabit 10/100/1000Mbps PoE ports plus one 1000M RJ45 uplink.
- **IEEE 802.3af/at PoE** — Up to 30W per port; data and power delivered over one cable.
- **Plug and Play** — Powers IP cameras, APs, and video doorbells with no extra adapters.
- **Metal Housing** — Efficient heat dissipation and built-in lightning protection for reliability.
- **Security-Ready** — Purpose-built for IP camera surveillance networks in business and home.
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

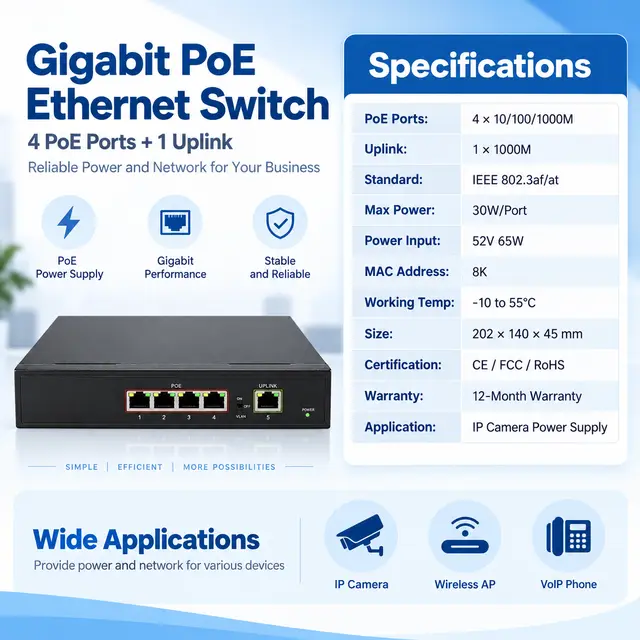

| Parameter | Listed value |
|---|---|
| PoE Ports | 4 × 10/100/1000Mbps |
| Uplink Port | 1 × 1000M RJ45 |
| Standard | IEEE 802.3af/at |
| Max Power Per Port | 30W |
| Total Power Input | 52V 65W |
| MAC Address Table | 8K |
| Operating Temperature | -10 ~ 55°C |
| Dimensions | 202 × 140 × 45mm |
| Certification | CE, FCC, RoHS |
| Warranty | 12-Month Warranty |
| Application | IP Camera / Security Surveillance |
Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Where it is used
Typical applications.

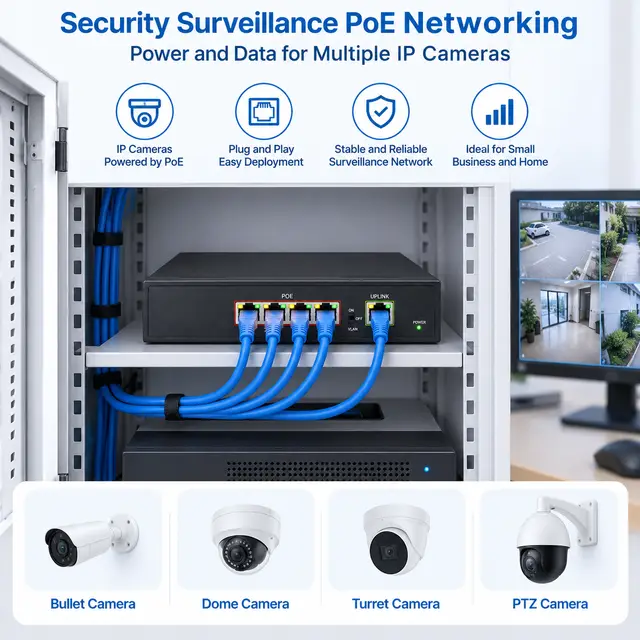

- Security surveillance IP camera power supply
- wireless AP deployment
- VoIP phones
- small business and home networking
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
Ordering
What is confirmed, and what we need from you.
Listed ordering information
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
Is an industrial temperature version available?
The listed operating temperature is -10 ~ 55°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
