100G QSFP28 to QSFP28 Passive Direct Attach Copper Cable
100G QSFP28 to QSFP28 Passive Direct Attach Copper (DAC) Cable
The 100G QSFP28 Passive Direct Attach Copper (DAC) cable is a cost-effective, low-power interconnect solution for short-reach data center links. With QSFP28 connectors on both ends joined by high-quality twinax copper, it delivers full 100Gbps performance for Top-of-Rack (ToR) switch-to-switch and switch-to-server connections — with zero transceiver optics required.

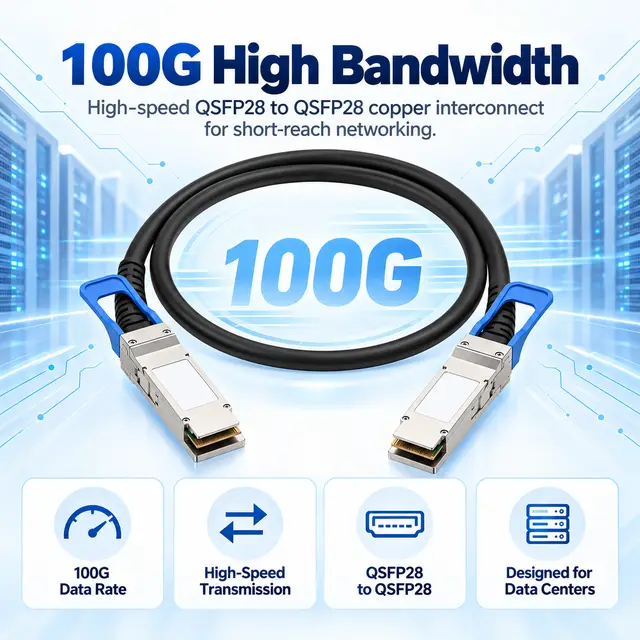

- **100G High Bandwidth** — Full 100Gbps QSFP28-to-QSFP28 throughput for high-density networking.

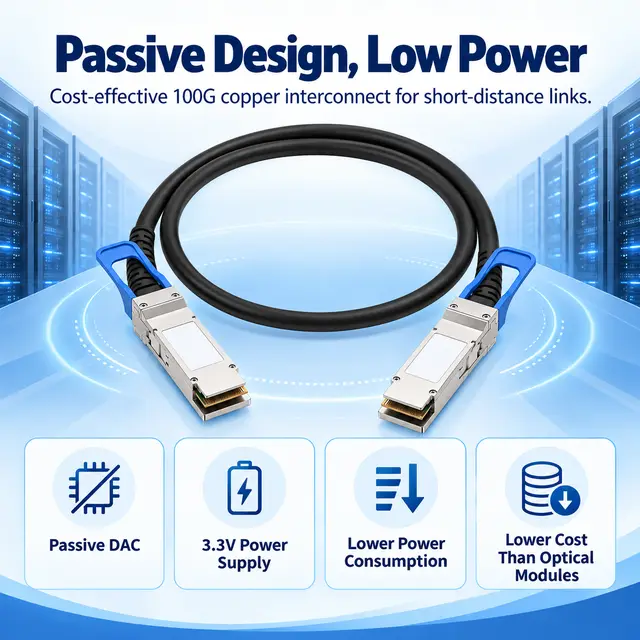

- **Passive Design, Low Power** — Passive DAC at 3.3V; far lower power consumption and cost than optical modules.

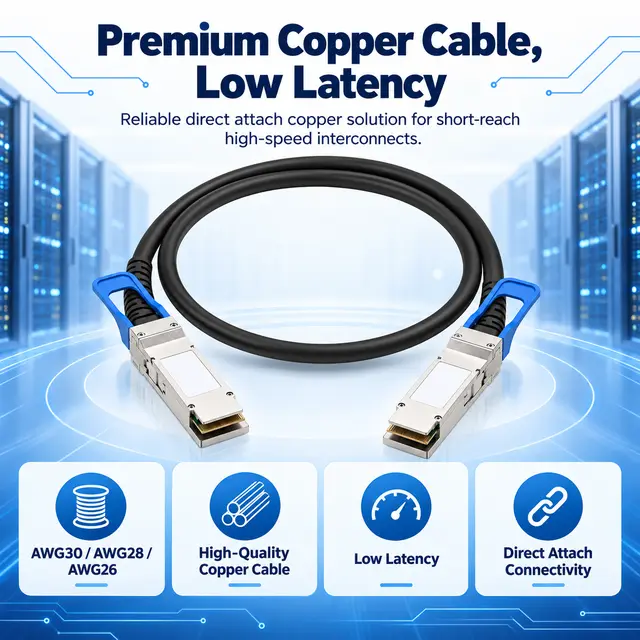

- **Premium Copper, Low Latency** — AWG30 / AWG28 / AWG26 twinax copper for reliable, low-latency direct attach.

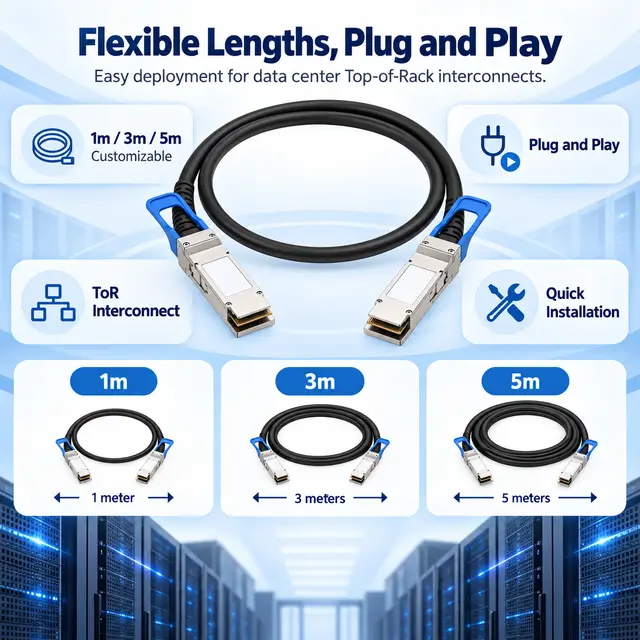

- **Flexible Lengths, Plug & Play** — 1m / 3m / 5m or customized; quick installation, no configuration needed.
- Data rate
- 100G
- Interface
- QSFP28 to QSFP28
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
The 100G QSFP28 Passive Direct Attach Copper (DAC) cable is a cost-effective, low-power interconnect solution for short-reach data center links. With QSFP28 connectors on both ends joined by high-quality twinax copper, it delivers full 100Gbps performance for Top-of-Rack (ToR) switch-to-switch and switch-to-server connections — with zero transceiver optics required.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- **100G High Bandwidth** — Full 100Gbps QSFP28-to-QSFP28 throughput for high-density networking.
- **Passive Design, Low Power** — Passive DAC at 3.3V; far lower power consumption and cost than optical modules.
- **Premium Copper, Low Latency** — AWG30 / AWG28 / AWG26 twinax copper for reliable, low-latency direct attach.
- **Flexible Lengths, Plug & Play** — 1m / 3m / 5m or customized; quick installation, no configuration needed.

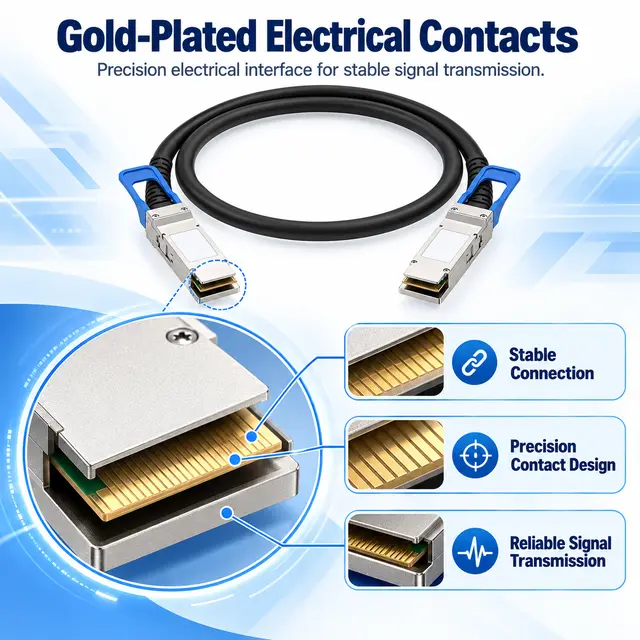

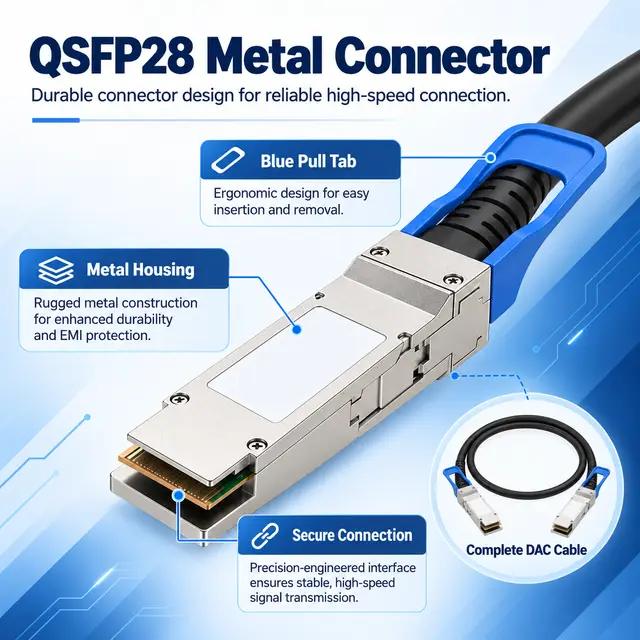

- **Durable Build** — Rugged metal housing with ergonomic blue pull tab; gold-plated contacts for stable signal.
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Data Rate | 100G |
| Connector | QSFP28 to QSFP28 |
| Type | Passive Direct Attach Copper (DAC) |
| Cable Gauge | AWG30 / AWG28 / AWG26 |
| Length | 1m / 3m / 5m (customizable) |
| Power Supply | 3.3V |
| Operating Temperature | 0 ~ 70°C |
| Certification | CE, RoHS |
| Warranty | 3-Year Warranty |
| Application | Data Center, ToR Interconnect |

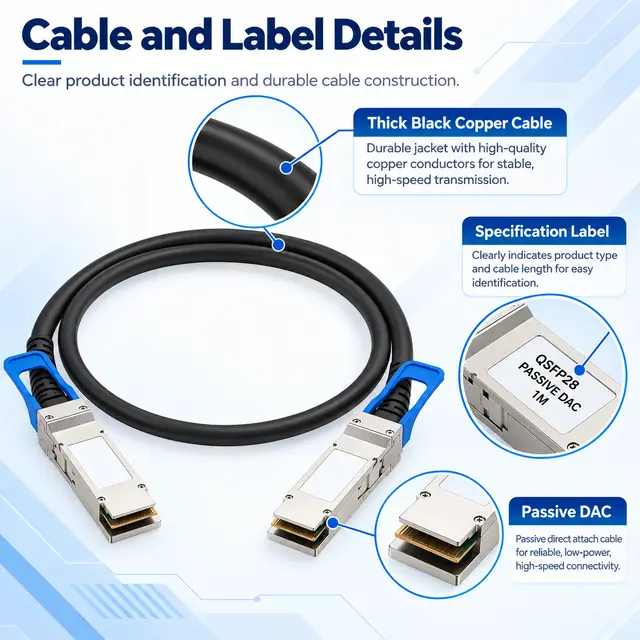

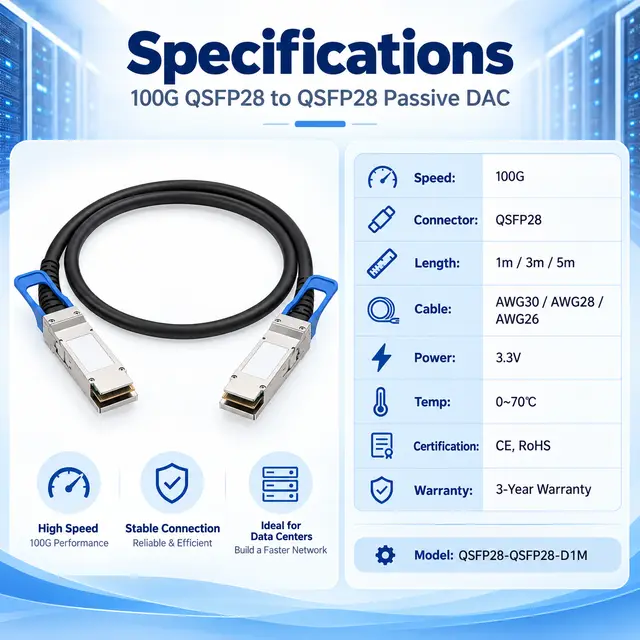

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Where it is used
Typical applications.

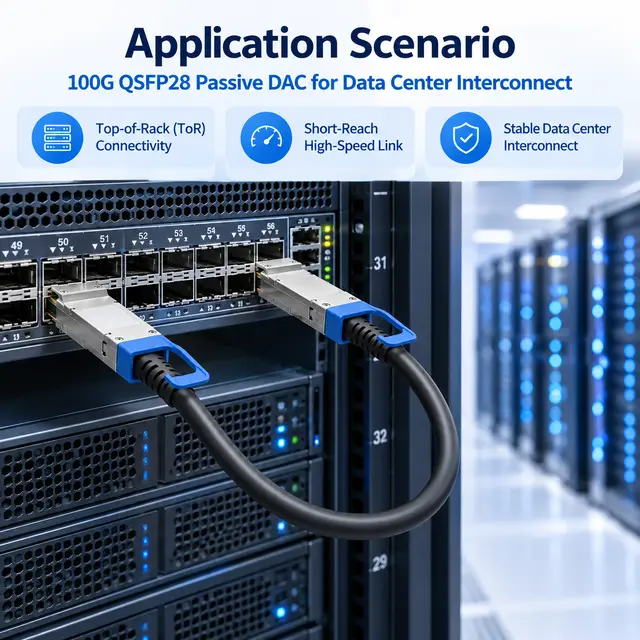

- Data center Top-of-Rack (ToR) connectivity
- short-reach 100G high-speed links
- switch-to-switch and switch-to-server interconnects
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
Ordering
What is confirmed, and what we need from you.
Listed ordering information
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What connector and fibre does it need?
The listed interface is QSFP28 to QSFP28. Check that your patch cords, panel adapters and polarity match before installation.
Is an industrial temperature version available?
The listed operating temperature is 0 ~ 70°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
