100G BiDi QSFP28 Single-Fiber Transceiver 1270/1330nm LC
100G BiDi QSFP28 Single-Fiber Transceiver 1270/1330nm LC Simplex 10-80km LR1/ER1/ZR1
This 100G QSFP28 single-fiber bidirectional (BiDi) transceiver transmits and receives over one strand of single-mode fiber, pairing 1270nm and 1330nm wavelengths across LR1/ER1/ZR1 reaches from 10km to 80km, with an LC simplex interface and DDM. Built to QSFP28 MSA SFF-8636, it halves fiber usage for data-center and IP network 100G links.
- 100Gb/s in a compact QSFP28 form factor
- Single-fiber BiDi design — 50% fiber saving over dual-fiber links
- LR1/ER1/ZR1 reaches from 10km up to 80km
- 1270nm/1330nm WDM with real-time DDM/DOM monitoring
- Data rate
- 100 Gb/s
- Wavelength
- 1270nm / 1330nm (single fiber BiDi)
- Reach
- 10 – 80 km (LR1 / ER1 / ZR1)
- Interface
- LC (Simplex)
- Fibre / media
- Single-Mode Fiber (SMF)
- Diagnostics
- Yes
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
This 100G QSFP28 single-fiber bidirectional (BiDi) transceiver transmits and receives over one strand of single-mode fiber, pairing 1270nm and 1330nm wavelengths across LR1/ER1/ZR1 reaches from 10km to 80km, with an LC simplex interface and DDM. Built to QSFP28 MSA SFF-8636, it halves fiber usage for data-center and IP network 100G links.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- 100Gb/s in a compact QSFP28 form factor
- Single-fiber BiDi design — 50% fiber saving over dual-fiber links
- LR1/ER1/ZR1 reaches from 10km up to 80km
- 1270nm/1330nm WDM with real-time DDM/DOM monitoring
- QSFP28 MSA SFF-8636 compliant, hot-pluggable, plug-and-play
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Type | Fiber Optic Transceiver (QSFP28) |
| Data Rate | 100 Gb/s |
| Form Factor | QSFP28 |
| Wavelength | 1270nm / 1330nm (single fiber BiDi) |
| Transmission Distance | 10 – 80 km (LR1 / ER1 / ZR1) |
| Connector | LC (Simplex) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Supply Voltage | 3.3 V |
| DDM / DOM | Yes |
| Compliance | QSFP28 MSA SFF-8636 |
| Certification | CE / FCC / RoHS |

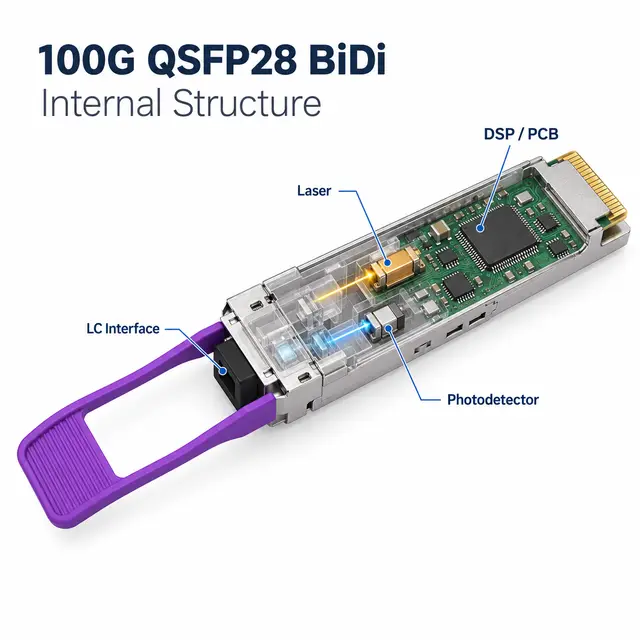

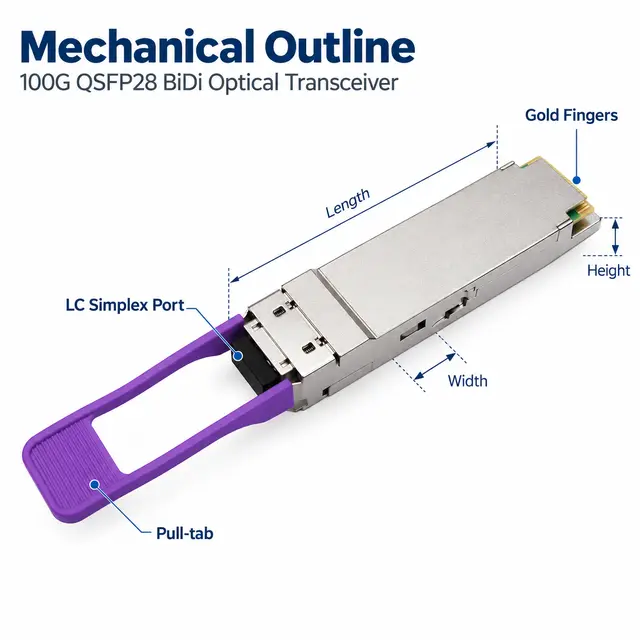

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Build quality
Details that decide reliability.

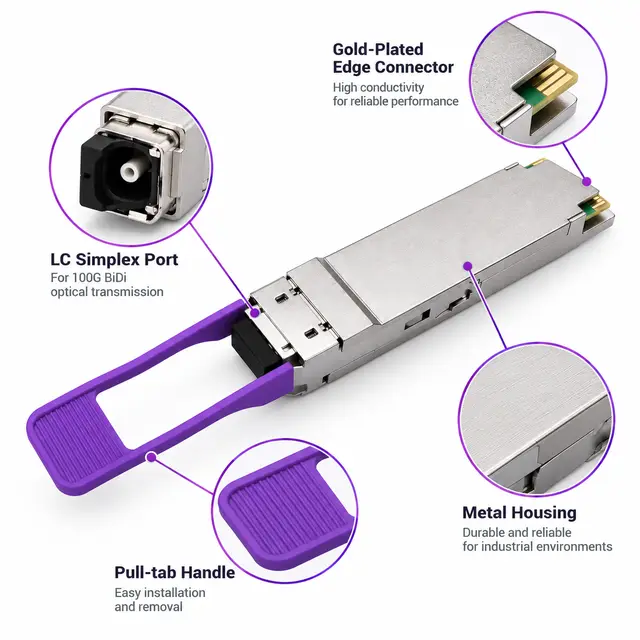

Gold-plated edge connector for high conductivity and stable signaling
Precision LC optical port for reliable single-fiber connection
Efficient thermal design for sustained 100G operation
Where it is used
Typical applications.
- Data center 100G single-fiber interconnect
- Metro and IP core aggregation
- Long-reach 100G links up to 80km
- FTTX and transport networks
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
OEM / ODM
Customization options.

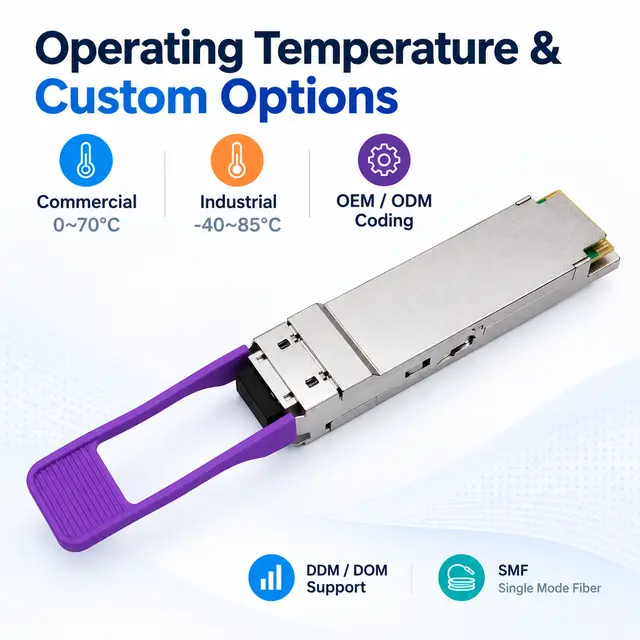

- Commercial (0~70°C) and Industrial (-40~85°C) temperature grades
- OEM/ODM coding for major switch platforms
- LR1/ER1/ZR1 reach selection (10–80km)
- Neutral / custom export packaging
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- MOQ
- 1 piece
- Single package size
- 25 × 20 × 10 cm; gross weight ~2.0 kg
- Warranty
- 12 months
- Lead time
- samples in stock; bulk built to order
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 100G BiDi QSFP28 Single-Fiber Transceiver 1270/1330nm LC?
The listed reach is 10 – 80 km (LR1 / ER1 / ZR1). Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 1270nm / 1330nm (single fiber BiDi). Single-fibre BiDi modules must be ordered as matched A/B pairs so the transmit wavelength at one end matches the receive wavelength at the other. Ordering two of the same end will not link.
What connector and fibre does it need?
The listed interface is LC (Simplex) on Single-Mode Fiber (SMF). Check that your patch cords, panel adapters and polarity match before installation.
Does it support DDM / DOM diagnostics?
Listed as: Yes. Digital diagnostics report optical transmit power, receive power, bias current, supply voltage and module temperature through the host, which makes commissioning and fault isolation far faster than swapping parts.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
More in the procurement FAQ.
