Outdoor Industrial Gigabit Ethernet Switch — 5× RJ45 Port
Outdoor Industrial Gigabit Ethernet Switch — 5× RJ45 Port
Built for harsh environments, this industrial-grade Gigabit Ethernet switch provides five 10/100/1000Base-T RJ45 ports in a rugged aluminum-alloy housing. Wide voltage input (10~47V DC) and a wide operating temperature range (-40~85°C) make it ideal for outdoor cabinets, factories, and telecom deployments.

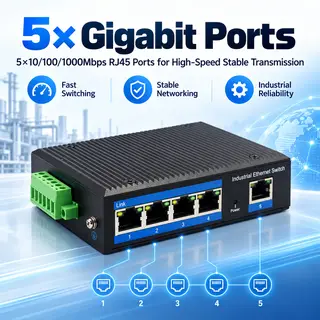

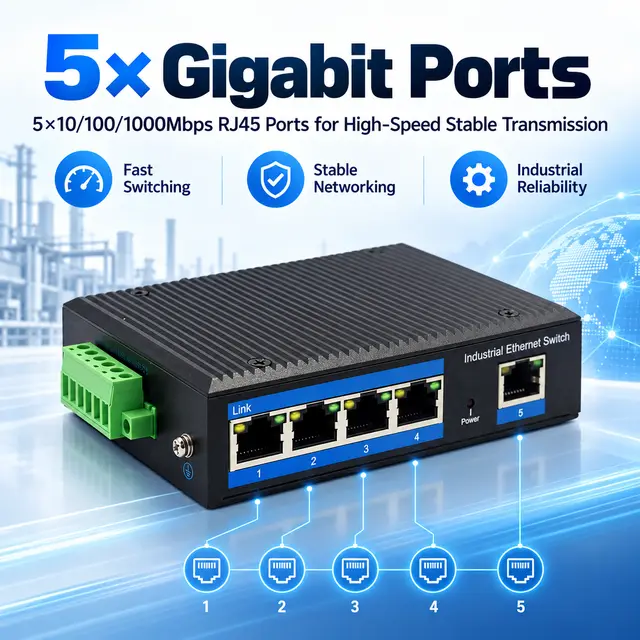

- **5× Gigabit Ports** — Five 10/100/1000Mbps RJ45 ports for high-speed, stable transmission.

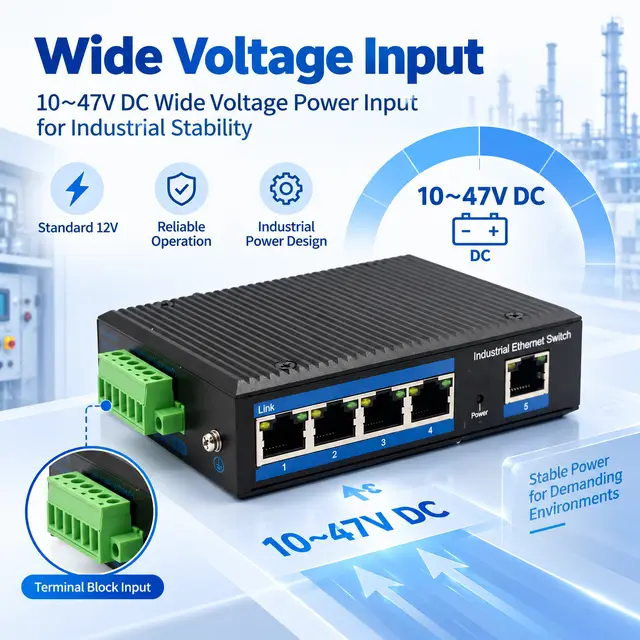

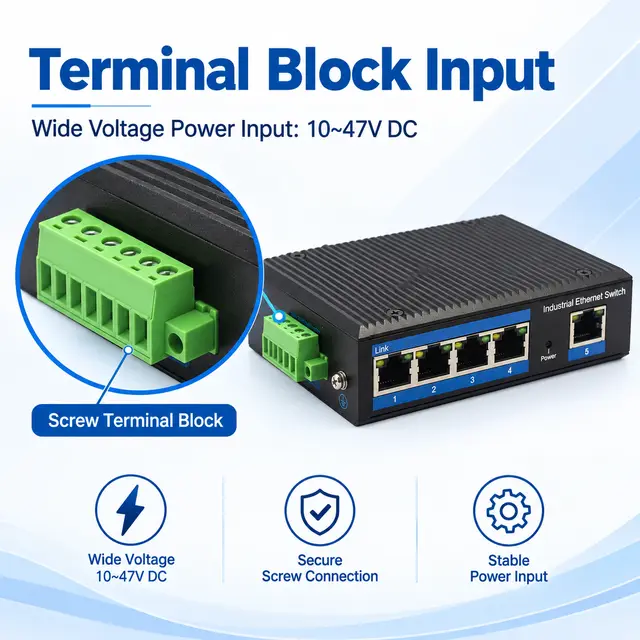

- **Wide Voltage Input** — 10~47V DC (standard 12V) screw terminal for industrial power stability.

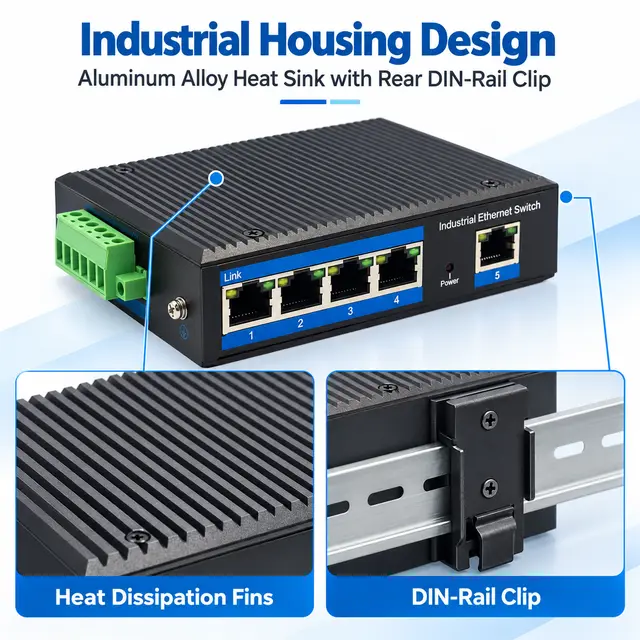

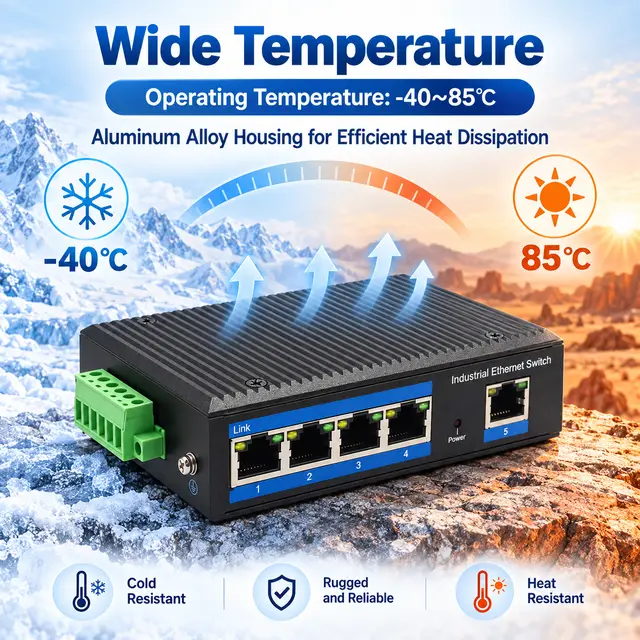

- **Wide Temperature** — Operates from -40°C to 85°C; aluminum-alloy heat sink for efficient dissipation.

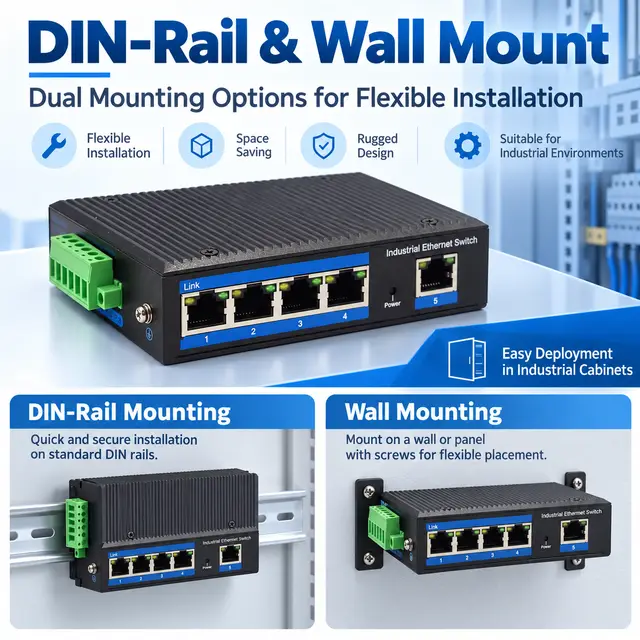

- **DIN-Rail & Wall Mount** — Dual mounting options for flexible installation in industrial cabinets.
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
Built for harsh environments, this industrial-grade Gigabit Ethernet switch provides five 10/100/1000Base-T RJ45 ports in a rugged aluminum-alloy housing. Wide voltage input (10~47V DC) and a wide operating temperature range (-40~85°C) make it ideal for outdoor cabinets, factories, and telecom deployments. Flexible DIN-rail or wall mounting and a secure screw terminal block ensure fast, reliable installation.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- **5× Gigabit Ports** — Five 10/100/1000Mbps RJ45 ports for high-speed, stable transmission.
- **Wide Voltage Input** — 10~47V DC (standard 12V) screw terminal for industrial power stability.
- **Wide Temperature** — Operates from -40°C to 85°C; aluminum-alloy heat sink for efficient dissipation.
- **DIN-Rail & Wall Mount** — Dual mounting options for flexible installation in industrial cabinets.
- **Rugged & Reliable** — Fanless aluminum housing, PoE optional, purpose-built for demanding environments.
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

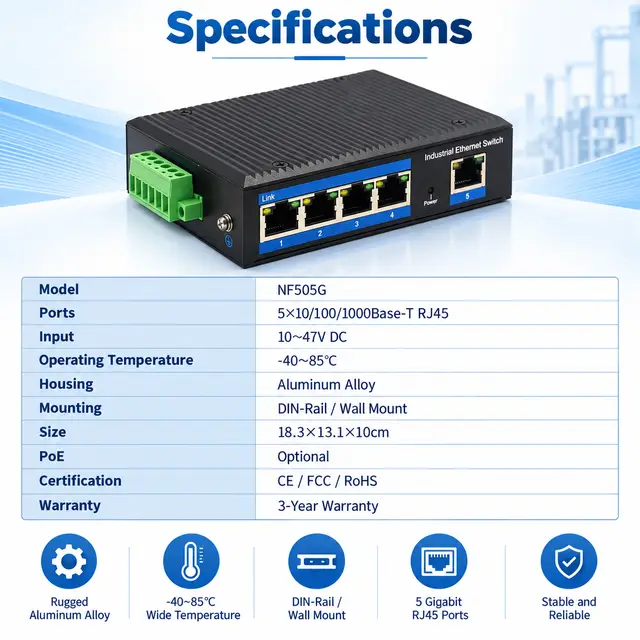

| Parameter | Listed value |
|---|---|
| Model | NF505G |
| Ports | 5 × 10/100/1000Base-T RJ45 |
| Input Power | 10~47V DC |
| Operating Temperature | -40 ~ 85°C |
| Housing | Aluminum Alloy |
| Mounting | DIN-Rail / Wall Mount |
| Dimensions | 18.3 × 13.1 × 10cm |
| PoE | Optional |
| Certification | CE, FCC, RoHS |
| Warranty | 3-Year Warranty |

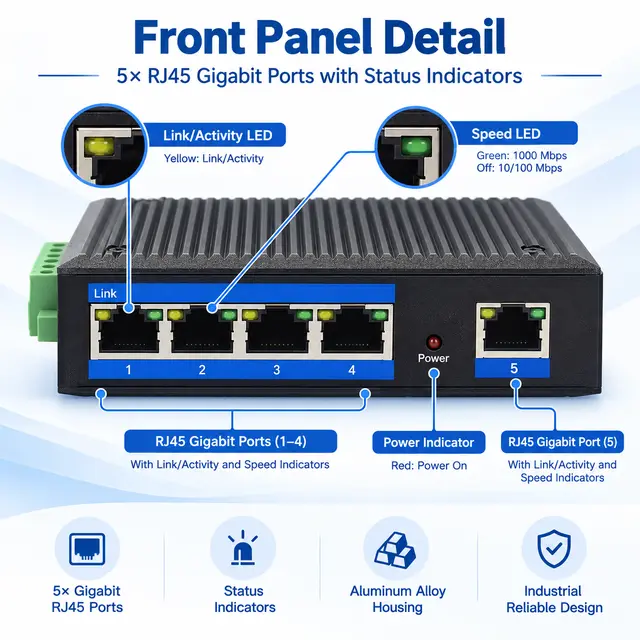

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Where it is used
Typical applications.

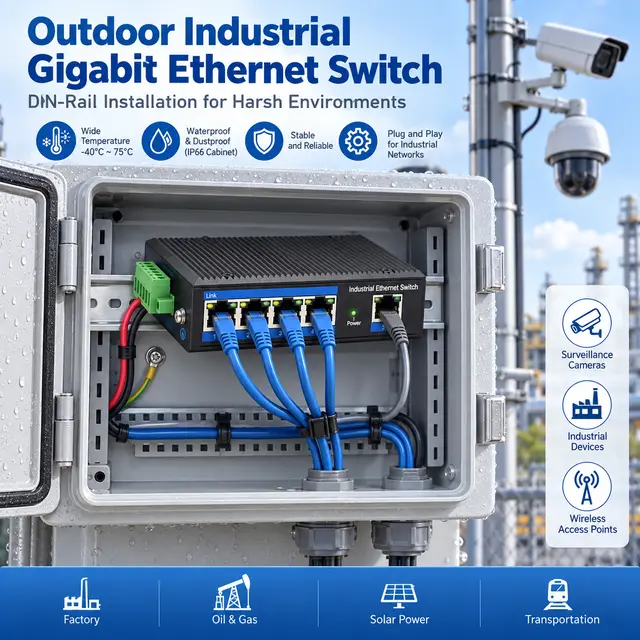

- Outdoor surveillance networks
- factory automation
- oil & gas
- solar power sites
- transportation
- and telecom / FTTX deployments in harsh environments
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
Ordering
What is confirmed, and what we need from you.
Listed ordering information
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
Is an industrial temperature version available?
The listed operating temperature is -40 ~ 85°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
