10/100/1000 Gigabit Fiber Media Converter — Single-Mode
10/100/1000 Gigabit Fiber Media Converter — Single-Mode 1310nm SC Port
This Gigabit fiber media converter bridges single-mode optical fiber and copper Ethernet, extending network reach up to 20KM. With a dual-fiber SC port (1310nm) and an RJ45 Gigabit copper port, it delivers reliable fiber-to-Ethernet conversion for FTTH / FTTP / FTTX broadband access in homes, offices, and campus networks.

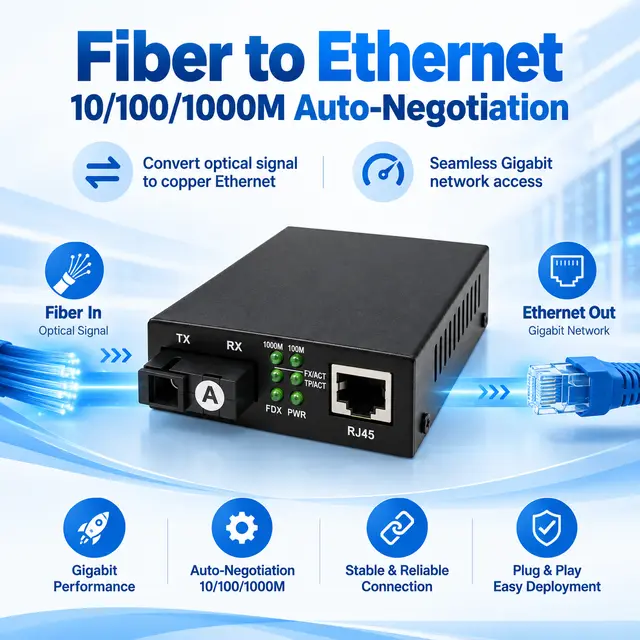

- **Fiber to Ethernet** — 10/100/1000M auto-negotiation between fiber and copper.

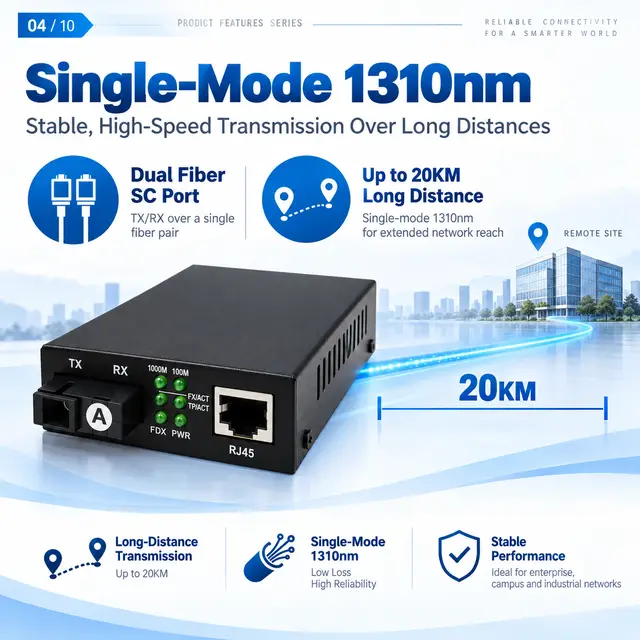

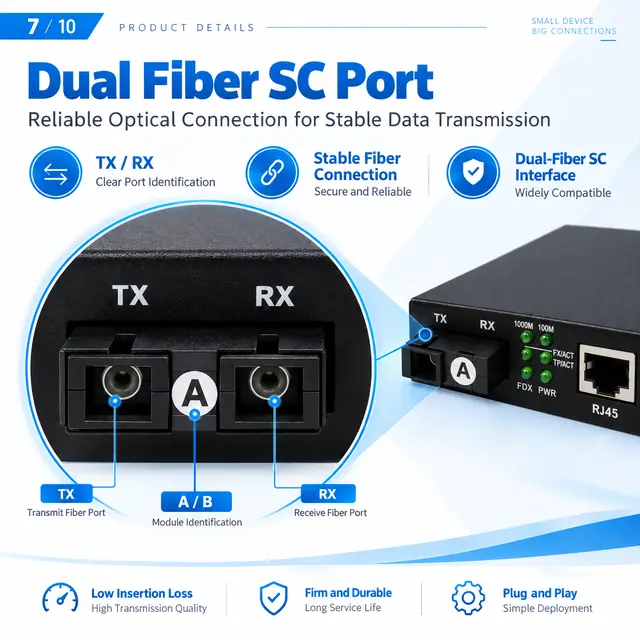

- **Single-Mode 1310nm** — Dual-fiber SC port for stable, high-speed transmission over long distances.
- **Up to 20KM** — Extended single-mode reach for enterprise, campus, and industrial links.

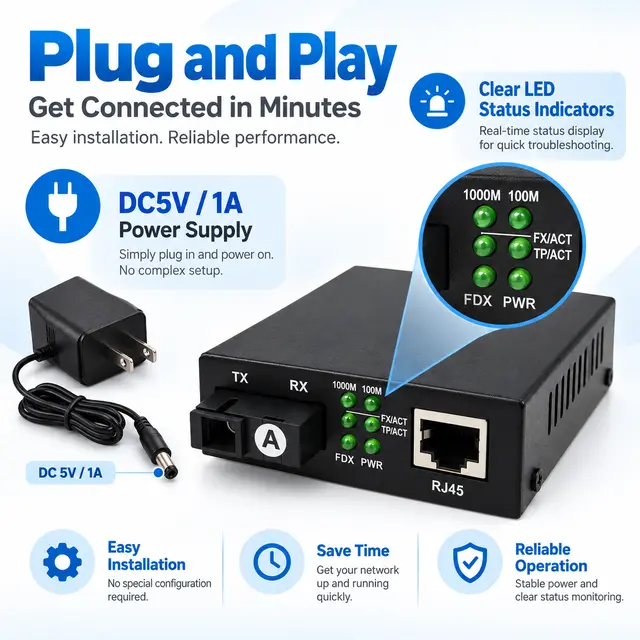

- **Plug and Play** — Simple DC5V/1A power; no configuration required.
- Data rate
- 10/100/1000M
- Wavelength
- 1310nm
- Reach
- 20KM
- Fibre / media
- Dual Fiber SC
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.

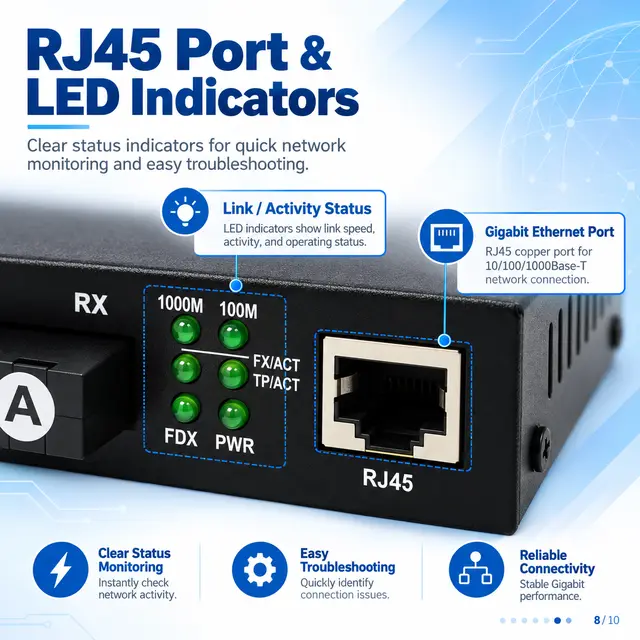

This Gigabit fiber media converter bridges single-mode optical fiber and copper Ethernet, extending network reach up to 20KM. With a dual-fiber SC port (1310nm) and an RJ45 Gigabit copper port, it delivers reliable fiber-to-Ethernet conversion for FTTH / FTTP / FTTX broadband access in homes, offices, and campus networks. Plug-and-play DC5V operation and clear LED indicators make deployment effortless.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- **Fiber to Ethernet** — 10/100/1000M auto-negotiation between fiber and copper.
- **Single-Mode 1310nm** — Dual-fiber SC port for stable, high-speed transmission over long distances.
- **Up to 20KM** — Extended single-mode reach for enterprise, campus, and industrial links.
- **Plug and Play** — Simple DC5V/1A power; no configuration required.

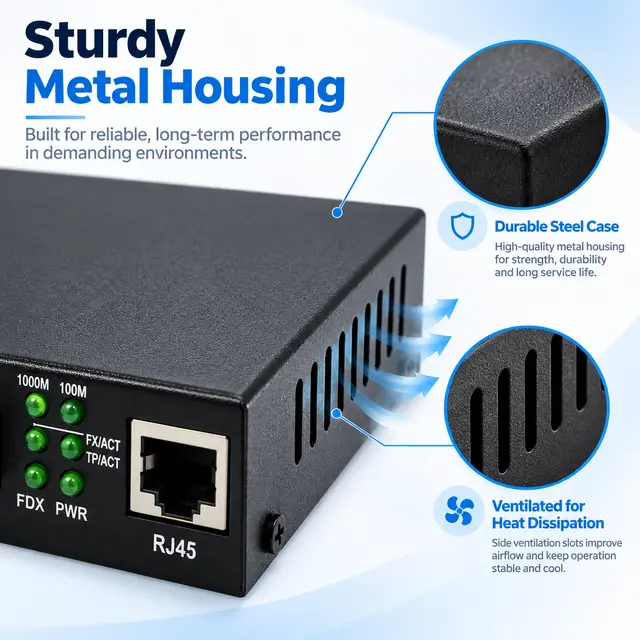

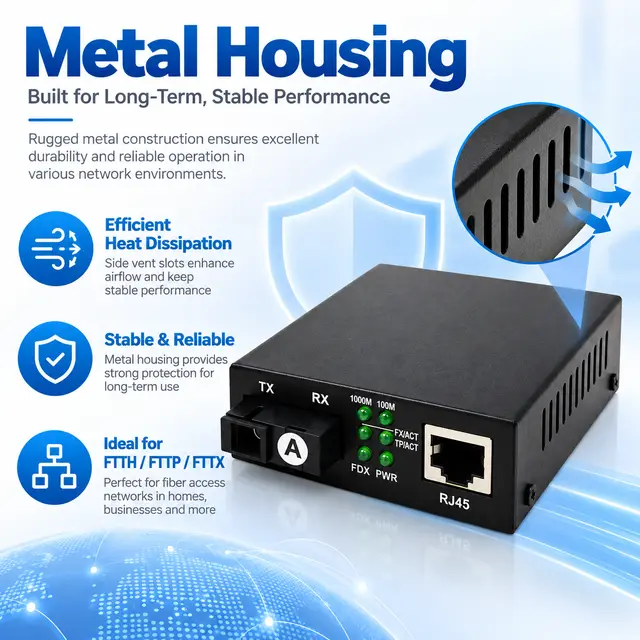

- **Durable Metal Housing** — Rugged steel case with side vents for efficient heat dissipation.
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

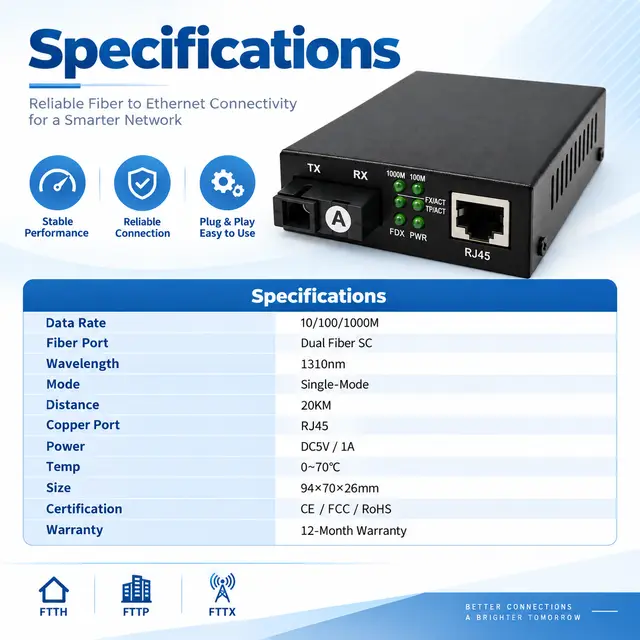

| Parameter | Listed value |
|---|---|
| Data Rate | 10/100/1000M |
| Fiber Port | Dual Fiber SC |
| Wavelength | 1310nm |
| Mode | Single-Mode |
| Transmission Distance | 20KM |
| Copper Port | RJ45 |
| Power Supply | DC 5V / 1A |
| Operating Temperature | 0 ~ 70°C |
| Dimensions | 94 × 70 × 26mm |
| Certification | CE, FCC, RoHS |
| Warranty | 12-Month Warranty |
Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Where it is used
Typical applications.

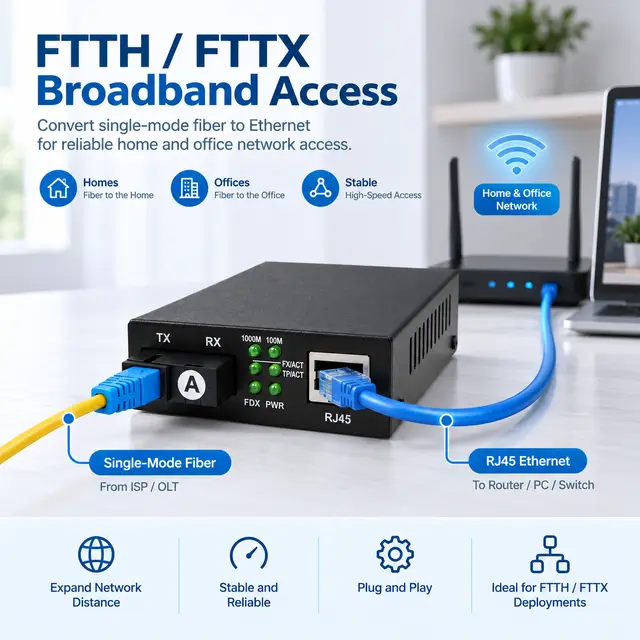

- FTTH / FTTP / FTTX broadband access
- home and office fiber-to-Ethernet conversion
- enterprise and campus network extension
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
Ordering
What is confirmed, and what we need from you.
Listed ordering information
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 10/100/1000 Gigabit Fiber Media Converter — Single-Mode?
The listed reach is 20KM. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 1310nm. Both ends of a duplex link must use the same wavelength plan.
Is an industrial temperature version available?
The listed operating temperature is 0 ~ 70°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
