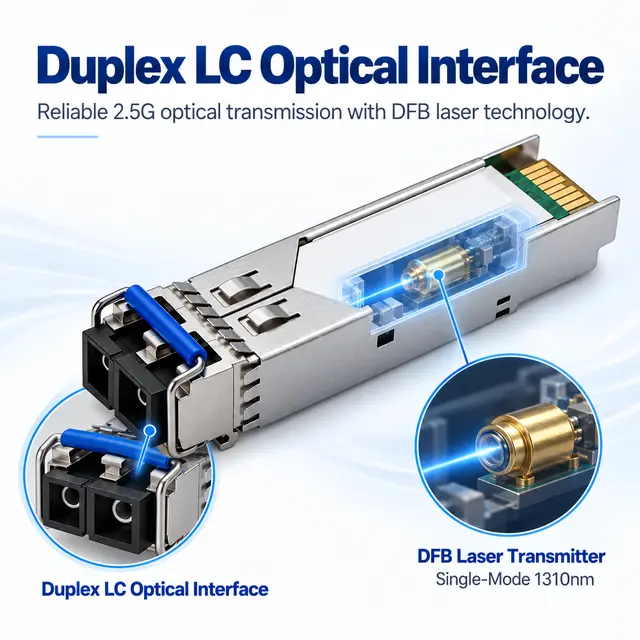

Reliable single-mode optical performance with DFB laser technology
Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.

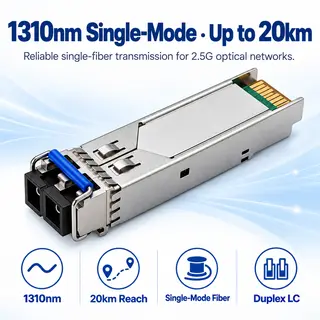

2.5G SFP-2.5G-LX20 Single-Mode 1310nm 20km Duplex LC
2.5G SFP-2.5G-LX20 Single-Mode 1310nm 20km Duplex LC Optical Transceiver Module
The SFP-2.5G-LX20-SM1310 is a 2.5 Gigabit SFP optical transceiver designed for reliable single-mode fiber transmission over distances up to 20 km. Operating at 1310 nm with a duplex LC interface, it delivers stable 2.5 Gbps connectivity for switch uplinks, access aggregation, and data center links.

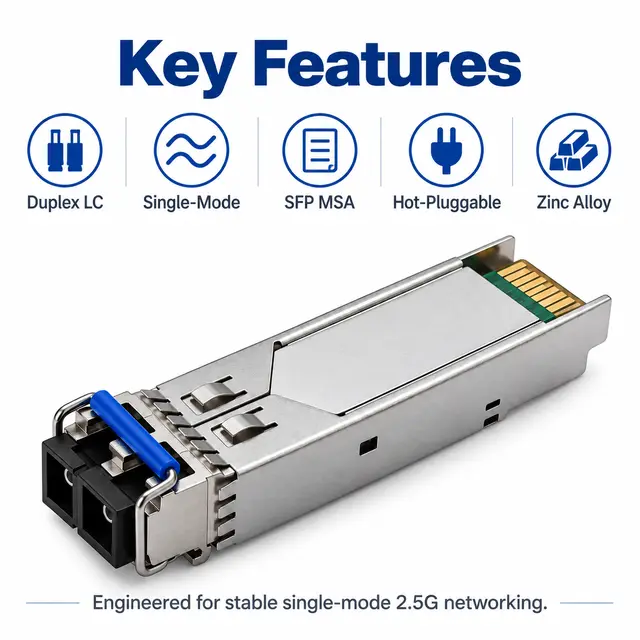

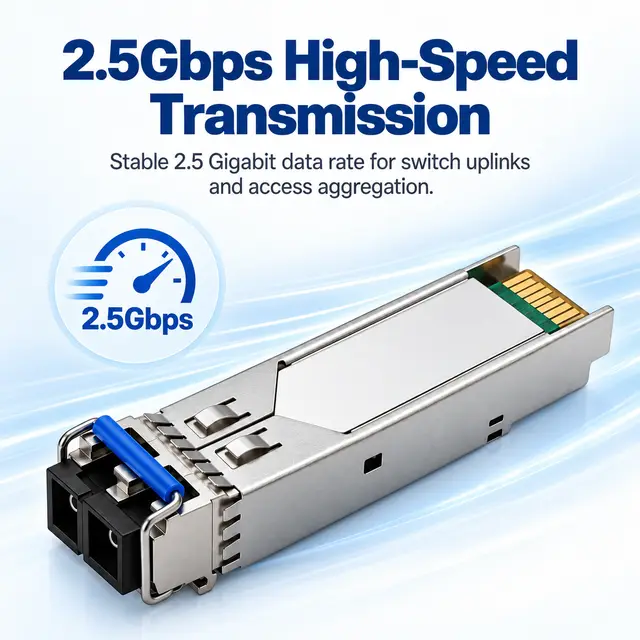

- Stable 2.5 Gbps data rate for switch uplinks and access aggregation

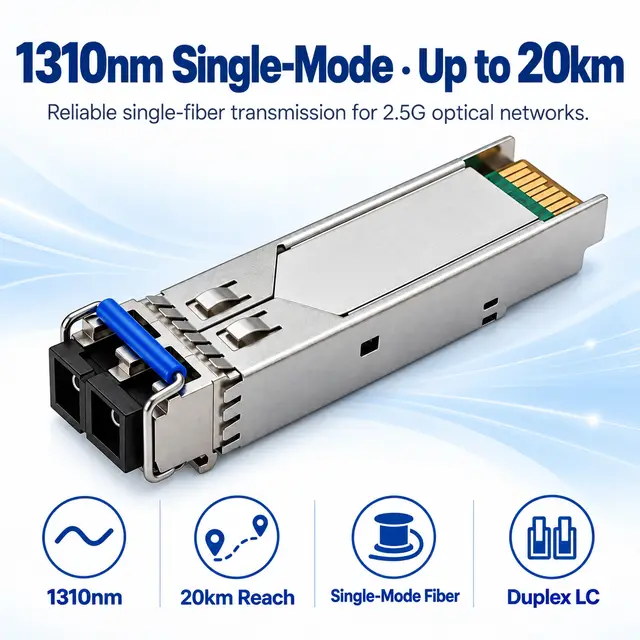

- 1310 nm single-mode transmission, reach up to 20 km
- Duplex LC connector with dual-fiber single-mode operation
- Standard SFP form factor, hot-pluggable, MSA-compliant design
- Data rate
- 2.5 Gbps
- Wavelength
- 1310 nm
- Reach
- 20 km
- Interface
- Duplex LC
- Fibre / media
- Dual Fiber
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
The SFP-2.5G-LX20-SM1310 is a 2.5 Gigabit SFP optical transceiver designed for reliable single-mode fiber transmission over distances up to 20 km. Operating at 1310 nm with a duplex LC interface, it delivers stable 2.5 Gbps connectivity for switch uplinks, access aggregation, and data center links. Built in a rugged zinc-alloy housing and fully hot-pluggable, it drops into any standard SFP port for fast, plug-and-play deployment.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- Stable 2.5 Gbps data rate for switch uplinks and access aggregation
- 1310 nm single-mode transmission, reach up to 20 km
- Duplex LC connector with dual-fiber single-mode operation
- Standard SFP form factor, hot-pluggable, MSA-compliant design
- Rugged zinc-alloy housing with gold-plated edge connector

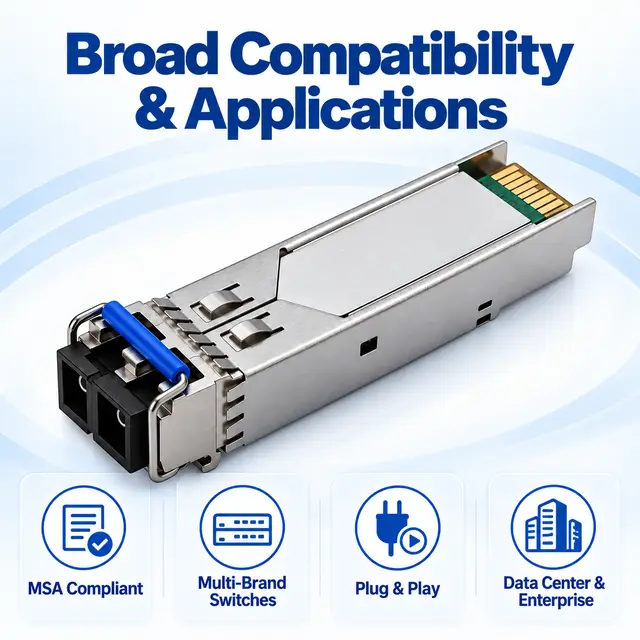

- Broad multi-brand switch compatibility, plug-and-play

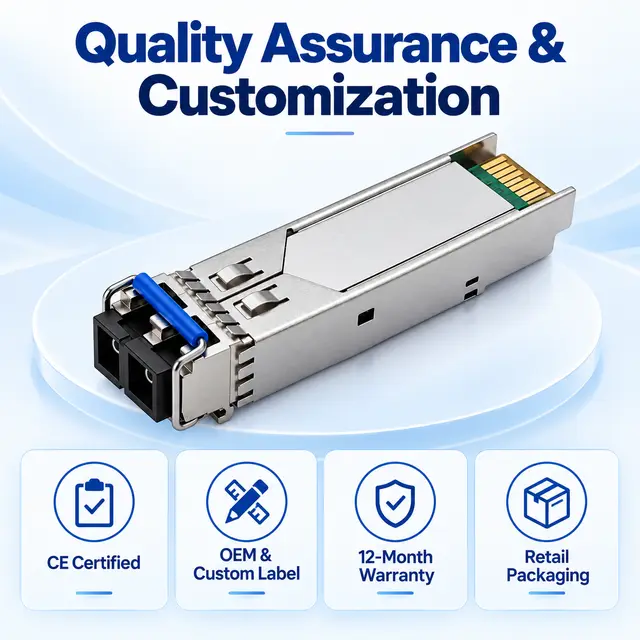

- CE certified, OEM and custom labeling supported
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Product Name | 2.5G SFP Module |
| Model Number | SFP-2.5G-LX20-SM1310 |
| Data Rate | 2.5 Gbps |
| Wavelength | 1310 nm |
| Transmission Distance | 20 km |
| Connector Type | Duplex LC |
| Mode Type | Single-Mode |
| Fiber Type | Dual Fiber |
| Form Factor | SFP, Hot-Pluggable |
| Housing Material | Zinc Alloy |
| Application | Switches, Data Center, IP Network |
| Certification | CE |
| Warranty | 12 Months |

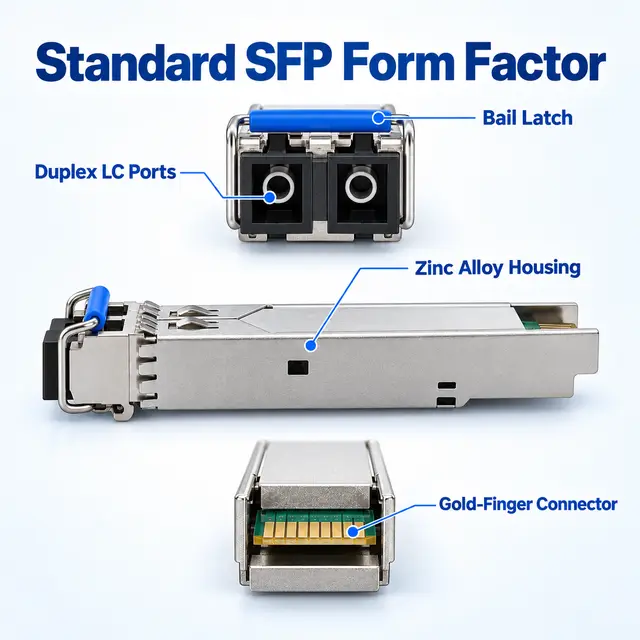

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

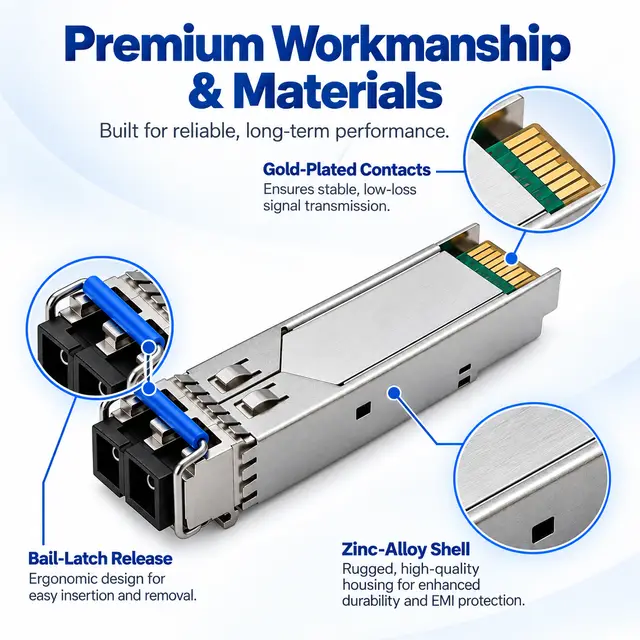

Build quality
Details that decide reliability.

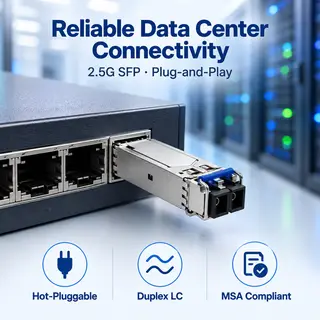

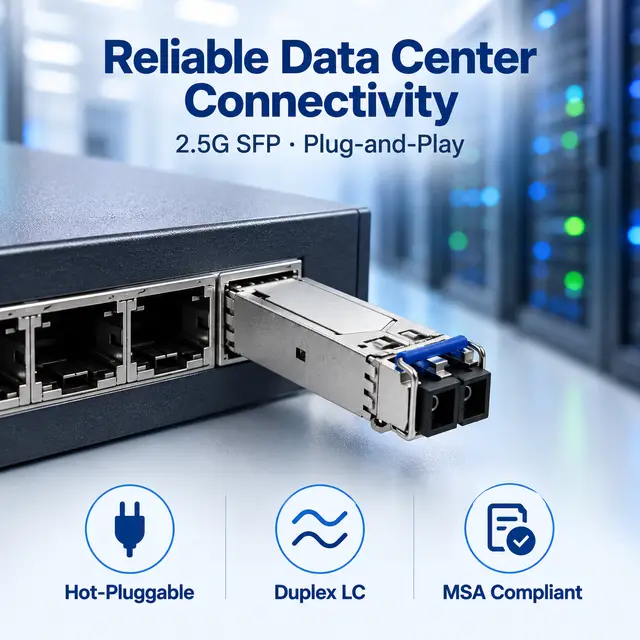

Hot-swappable SFP design for zero-downtime installation and replacement
Low-loss gold-plated contacts for stable signal integrity
Zinc-alloy shell for enhanced durability and EMI protection
Where it is used
Typical applications.
- Enterprise and campus switch uplinks
- Data center top-of-rack and aggregation links
- Metro and access IP networks
- FTTx and carrier-grade single-mode deployments
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
OEM / ODM
Customization options.
- OEM and custom label / coding supported
- Compatible coding for major switch brands on request
- Flexible packaging and bulk supply options
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- Model
- SFP-2.5G-LX20-SM1310
- Packaging
- single item, 23 x 18 x 8 cm, 1.0 kg gross weight
- Note
- MOQ, lead time, and custom coding available on request
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 2.5G SFP-2.5G-LX20 Single-Mode 1310nm 20km Duplex LC?
The listed reach is 20 km. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 1310 nm. Both ends of a duplex link must use the same wavelength plan.
What connector and fibre does it need?
The listed interface is Duplex LC on Dual Fiber. Check that your patch cords, panel adapters and polarity match before installation.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
