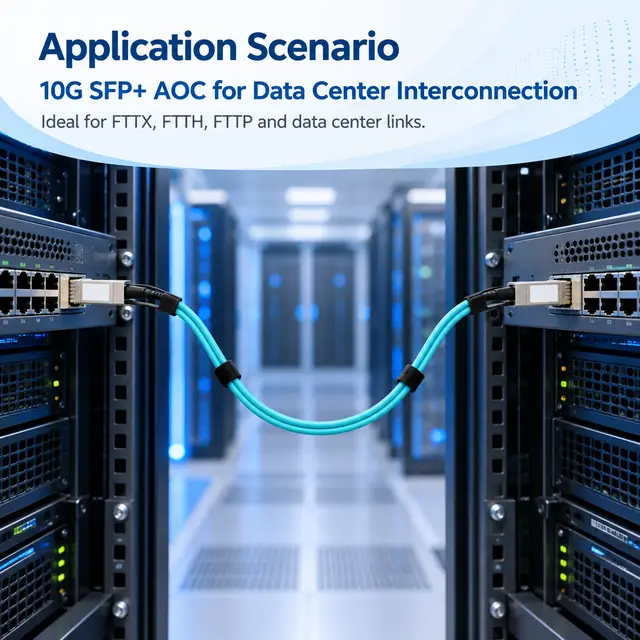

High Speed 10G SFP+ AOC Active Optical Cable — In a host switch 2
In a host switch · 2 / 6
High Speed 10G SFP+ AOC Active Optical Cable — Application view 3
Application view · 3 / 6
High Speed 10G SFP+ AOC Active Optical Cable — Application view 4
Application view · 4 / 6
High Speed 10G SFP+ AOC Active Optical Cable — Application view 5
Application view · 5 / 6
High Speed 10G SFP+ AOC Active Optical Cable — Application view 6
Application view · 6 / 6

Product renders for reference. Housing marking, label and bail colour follow the confirmed order.

DAC & AOC Cable

High Speed 10G SFP+ AOC Active Optical Cable

High Speed 10G SFP+ AOC Active Optical Cable (OM3 Multimode, 2-20m)

This 10G SFP+ Active Optical Cable (AOC) integrates two SFP+ optical connectors with a lightweight, flexible OM3 multimode fiber cable, delivering reliable 10Gbps transmission for short- to mid-range data center and FTTX links. Powered by VCSEL laser technology, the AOC combines the reach and EMI immunity of fiber with the plug-and-play simplicity of a direct attach cable.

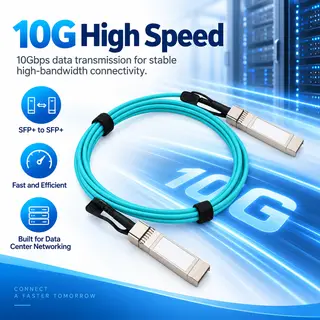

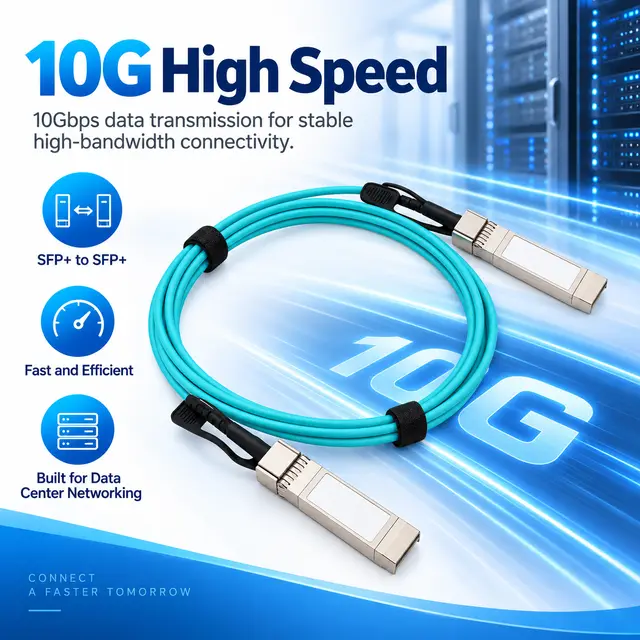

  • **10G High Speed** — Stable 10Gbps SFP+ to SFP+ data transmission.

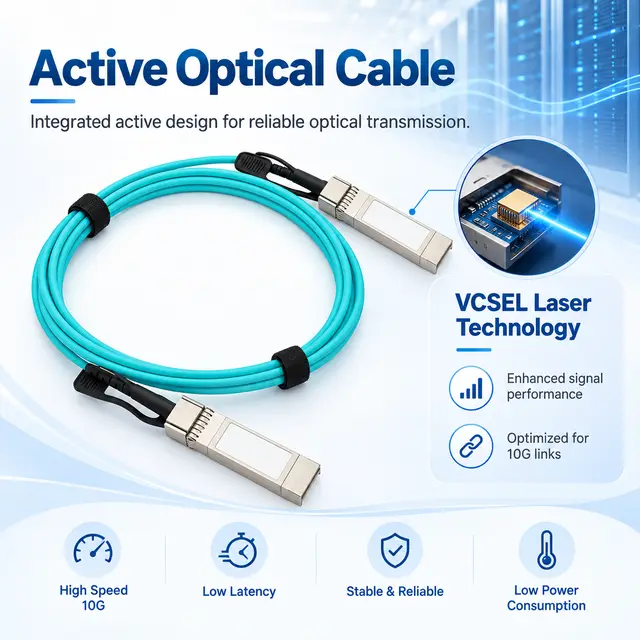

  • **Active Optical Cable** — Integrated VCSEL laser design for enhanced signal performance on 10G links.

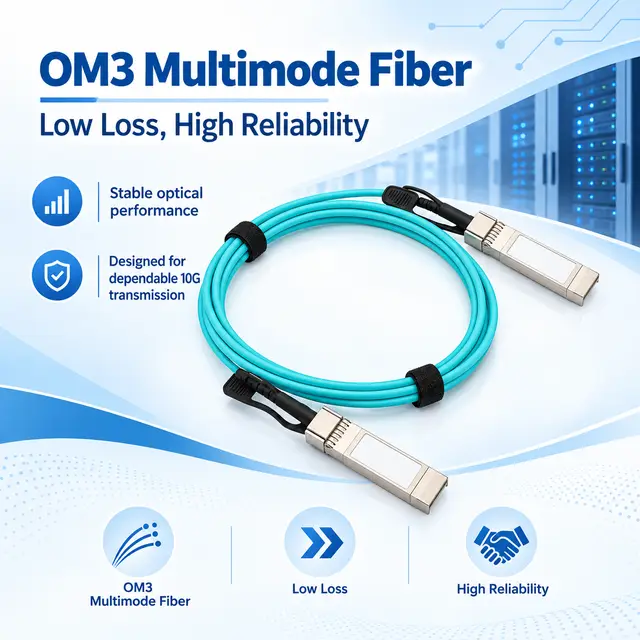

  • **OM3 Multimode Fiber** — Low loss and high reliability for dependable optical transmission.

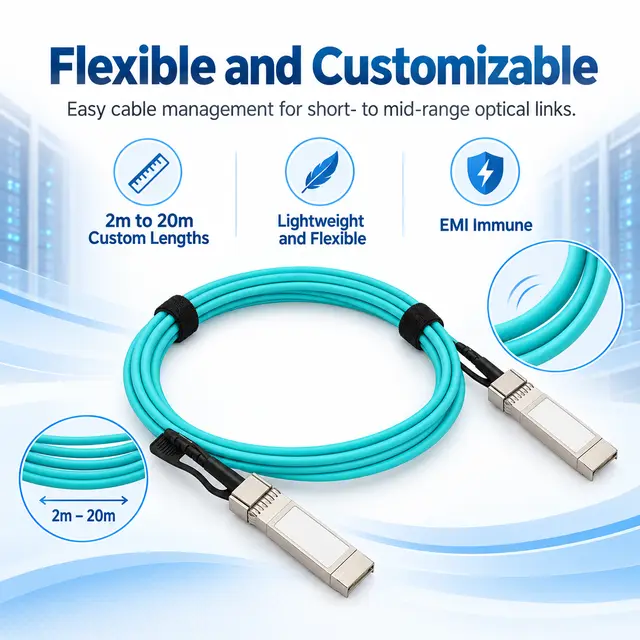

  • **Flexible & Customizable** — 2m to 20m lengths; lightweight, flexible aqua jacket for easy routing.
Data rate
10G
Interface
SFP+ to SFP+
Fibre / media
OM3 Multimode
Request a quotation Compare
  • Coded and confirmed for your host platform before production
  • Samples for evaluation in the intended port
  • Specification, test data and compliance paperwork with the order

Overview

What this module is for.

This 10G SFP+ Active Optical Cable (AOC) integrates two SFP+ optical connectors with a lightweight, flexible OM3 multimode fiber cable, delivering reliable 10Gbps transmission for short- to mid-range data center and FTTX links. Powered by VCSEL laser technology, the AOC combines the reach and EMI immunity of fiber with the plug-and-play simplicity of a direct attach cable.

Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.

Check the optical budget for your path

Key selling points

  • **10G High Speed** — Stable 10Gbps SFP+ to SFP+ data transmission.
  • **Active Optical Cable** — Integrated VCSEL laser design for enhanced signal performance on 10G links.
  • **OM3 Multimode Fiber** — Low loss and high reliability for dependable optical transmission.
  • **Flexible & Customizable** — 2m to 20m lengths; lightweight, flexible aqua jacket for easy routing.
  • **EMI Immune** — Optical fiber core is immune to electromagnetic interference and crosstalk.

Technical detail

Listed specifications.

Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

High Speed 10G SFP+ AOC Active Optical Cable — listed specifications
ParameterListed value
Data Rate10G
ConnectorSFP+ to SFP+
TypeActive Optical Cable (AOC)
FiberOM3 Multimode
LaserVCSEL
Length2m ~ 20m (customizable)
Operating Temperature0 ~ 70°C
CertificationCE, FCC, RoHS
Warranty12-Month Warranty
ApplicationData Center, FTTX / FTTH / FTTP

Technical drawings

Dimensions, structure and interfaces.

Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.

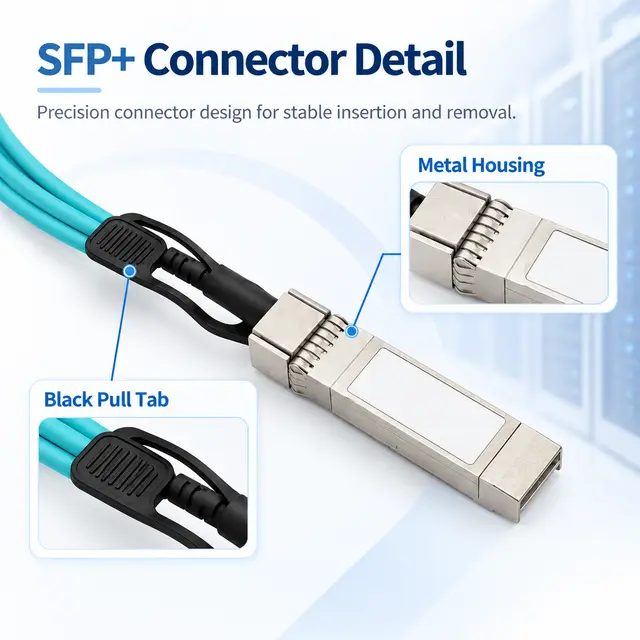

Drawing 1 of 4 — click to enlarge

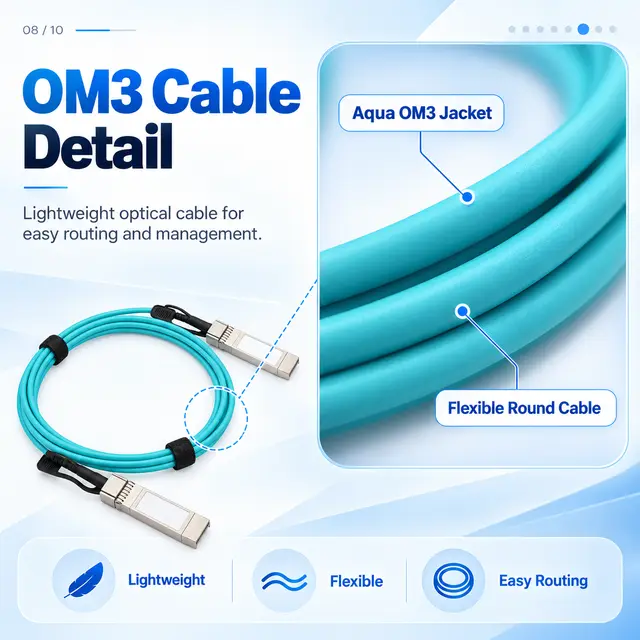

Drawing 2 of 4 — click to enlarge

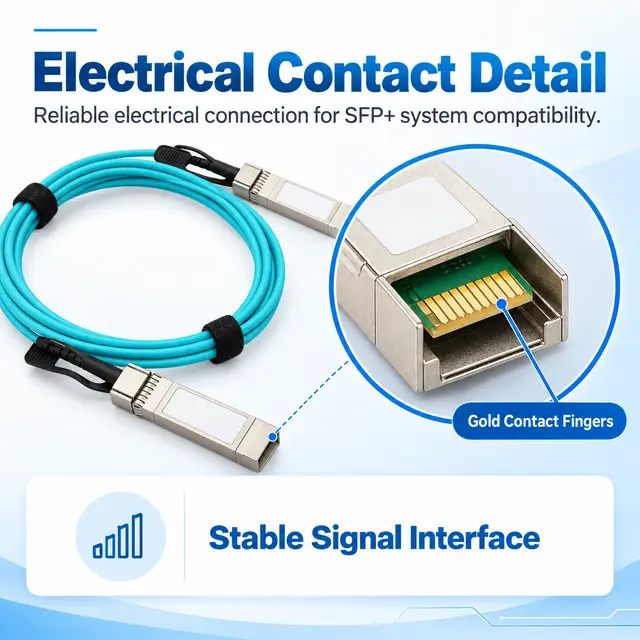

Drawing 3 of 4 — click to enlarge

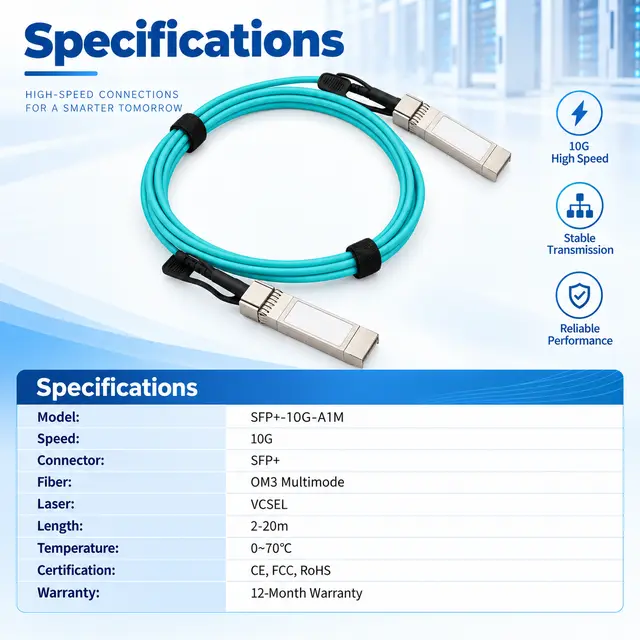

Drawing 4 of 4 — click to enlarge

Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

Where it is used

Typical applications.

  • Data center switch interconnects
  • short- to mid-range 10G high-speed links
  • FTTX / FTTH / FTTP network deployments

Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.

Application concepts
Network equipment in a data centre aisle

Ordering

What is confirmed, and what we need from you.

Listed ordering information

Include this in your inquiry

  • Product reference and required quantity
  • Host brand, model, port and software version
  • Fibre or cable type, connector and installed reach
  • Operating environment and temperature grade
  • Destination, sample needs and requested schedule

MOQ, lead time, warranty and applicable documents are confirmed in the quotation.

FAQ

Questions about this model.

What connector and fibre does it need?

The listed interface is SFP+ to SFP+ on OM3 Multimode. Check that your patch cords, panel adapters and polarity match before installation.

Is an industrial temperature version available?

The listed operating temperature is 0 ~ 70°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.

Can it be coded for my switch?

Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.

Can I evaluate a sample first?

Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
