25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI
- Data Rate25G
- Wavelength850 / 1310nm
- ConnectorLC Duplex
Product renders for reference. Housing marking, label and bail colour follow the confirmed order.
Optical Transceiver Module Series — SFP / SFP+ / SFP28
Optical Transceiver Module Series — SFP / SFP+ / SFP28 / QSFP+ / QSFP28
A complete family of optical transceiver modules covering 1.25G to 100G+ across SFP, SFP+, SFP28, QSFP+, and QSFP28 form factors. Supporting a wide range of wavelengths, distances, and single-mode / multi-mode fiber, this series is a one-stop sourcing solution for data center, enterprise, telecom, and FTTX networks.
- **Full Rate Range** — One-stop sourcing from 155M / 1.25G / 10G / 25G / 40G to 100G and beyond.
- **Multiple Wavelengths & Distances** — 850–1550nm, 100m to 200km, single-mode and multi-mode coverage.
- **Multiple Connectors** — LC / SC / MPO interfaces compatible with major networking brands.
- **Smart Monitoring** — DDM / DDMI digital diagnostics with real-time optical performance data.
- Data rate
- 155M ~ 400G
- Wavelength
- 850 ~ 1550nm
- Reach
- 100m ~ 200km
- Interface
- LC / SC / MPO
- Fibre / media
- SMF / MMF
- Diagnostics
- Yes
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
A complete family of optical transceiver modules covering 1.25G to 100G+ across SFP, SFP+, SFP28, QSFP+, and QSFP28 form factors. Supporting a wide range of wavelengths, distances, and single-mode / multi-mode fiber, this series is a one-stop sourcing solution for data center, enterprise, telecom, and FTTX networks. All modules feature DDM digital diagnostics, 3.3V low-power operation, and OEM customization for compatibility with major switch brands.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- **Full Rate Range** — One-stop sourcing from 155M / 1.25G / 10G / 25G / 40G to 100G and beyond.
- **Multiple Wavelengths & Distances** — 850–1550nm, 100m to 200km, single-mode and multi-mode coverage.
- **Multiple Connectors** — LC / SC / MPO interfaces compatible with major networking brands.
- **Smart Monitoring** — DDM / DDMI digital diagnostics with real-time optical performance data.
- **OEM Customization** — Custom coding, labeling, and wavelengths; 3.3V low-power design.
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Form Factor | SFP / SFP+ / SFP28 / QSFP+ / QSFP28 |
| Data Rate | 155M ~ 400G |
| Wavelength | 850 ~ 1550nm |
| Transmission Distance | 100m ~ 200km |
| Fiber Type | SMF / MMF |
| Connector | LC / SC / MPO |
| Supply Voltage | 3.3V |
| DDM | Yes |
| Operating Temperature | 0 ~ 70°C |
| OEM | Yes |
| Certification | CE, RoHS, FCC |
| Warranty | 12-Month Warranty |

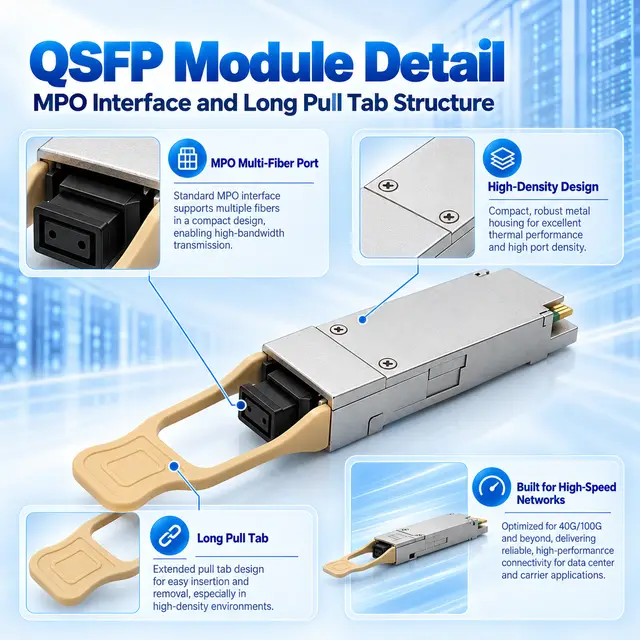

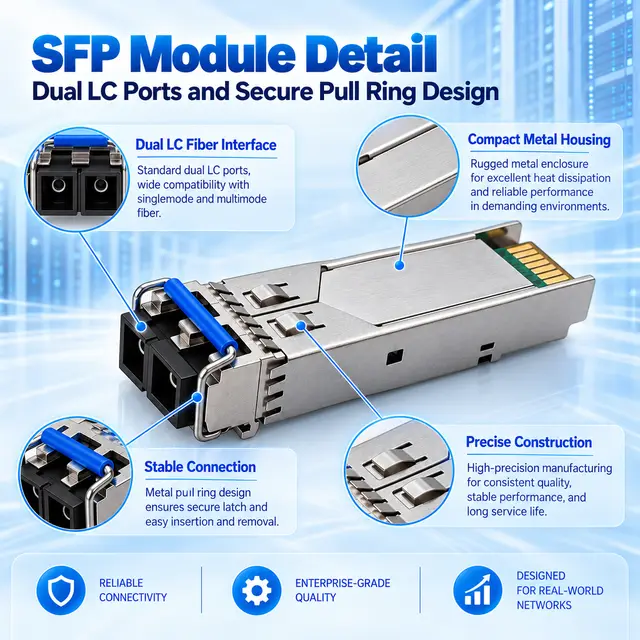

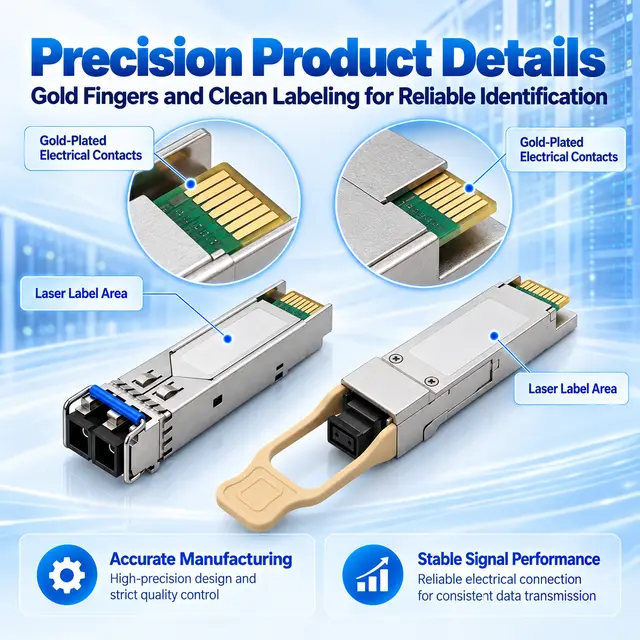

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Where it is used
Typical applications.
- Data center
- enterprise
- metro
- and long-haul networks
- switch and router uplinks
- telecom and FTTX deployments
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
Ordering
What is confirmed, and what we need from you.
Listed ordering information
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the Optical Transceiver Module Series — SFP / SFP+ / SFP28?
The listed reach is 100m ~ 200km. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 850 ~ 1550nm. Both ends of a duplex link must use the same wavelength plan.
What connector and fibre does it need?
The listed interface is LC / SC / MPO on SMF / MMF. Check that your patch cords, panel adapters and polarity match before installation.
Does it support DDM / DOM diagnostics?
Listed as: Yes. Digital diagnostics report optical transmit power, receive power, bias current, supply voltage and module temperature through the host, which makes commissioning and fault isolation far faster than swapping parts.
Is an industrial temperature version available?
The listed operating temperature is 0 ~ 70°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
More in the procurement FAQ.
Related
Other models in this family.
Next step
Confirm this configuration with us.
Send the host platform, the installed link and the quantity. We will confirm coding, reach and lead time in the quotation.
