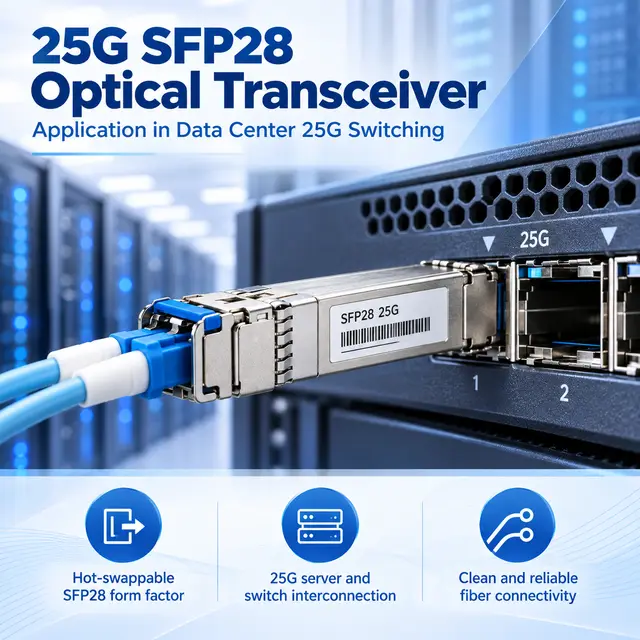

25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI — In a host switch 2
In a host switch · 2 / 6
25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI — Application view 3
Application view · 3 / 6
25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI — Application view 4
Application view · 4 / 6
25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI — Application view 5
Application view · 5 / 6
25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI — Application view 6
Application view · 6 / 6

Product renders for reference. Housing marking, label and bail colour follow the confirmed order.

Multi-Rate & Other

25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI

25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI Series

This 25G SFP28 optical transceiver module delivers high-density, hot-swappable connectivity for data center and enterprise 25G switching. Available in SR, LR, ER, and BIDI variants across multimode and single-mode fiber, it covers short- to long-reach links with a standard LC duplex interface.

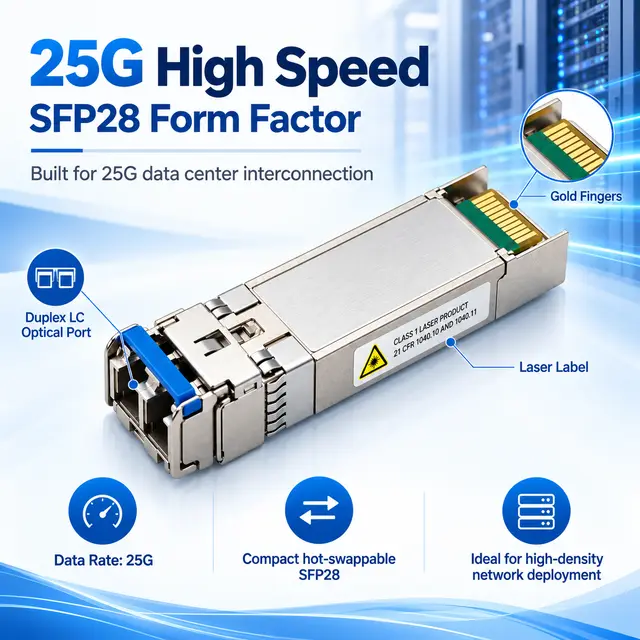

  • **25G High Speed** — Compact SFP28 form factor built for 25G data center interconnection.

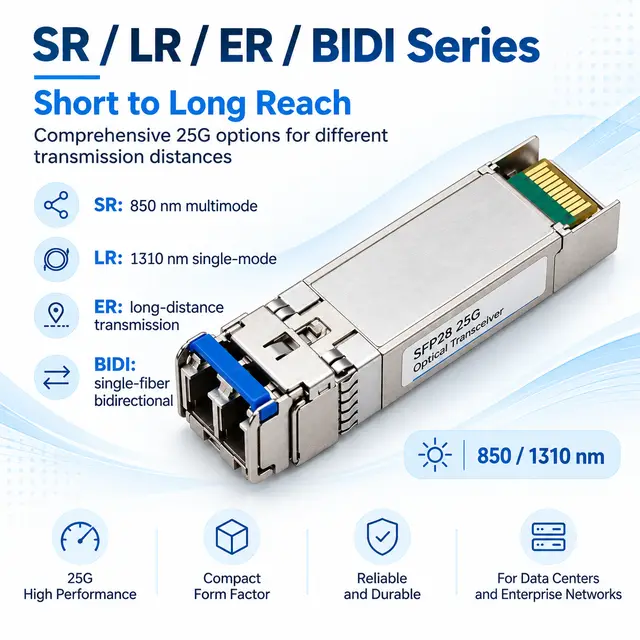

  • **SR / LR / ER / BIDI Series** — SR (850nm MMF), LR (1310nm SMF), ER long-reach, and single-fiber BIDI options.

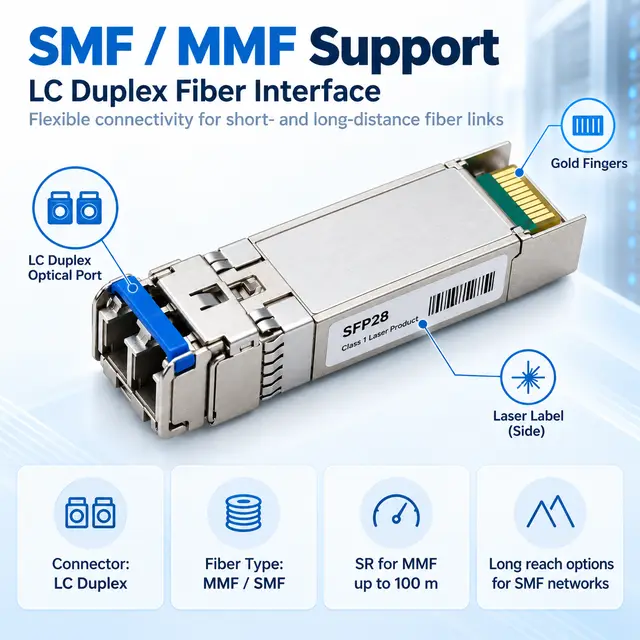

  • **SMF / MMF Support** — LC duplex interface for flexible short- and long-distance fiber links.

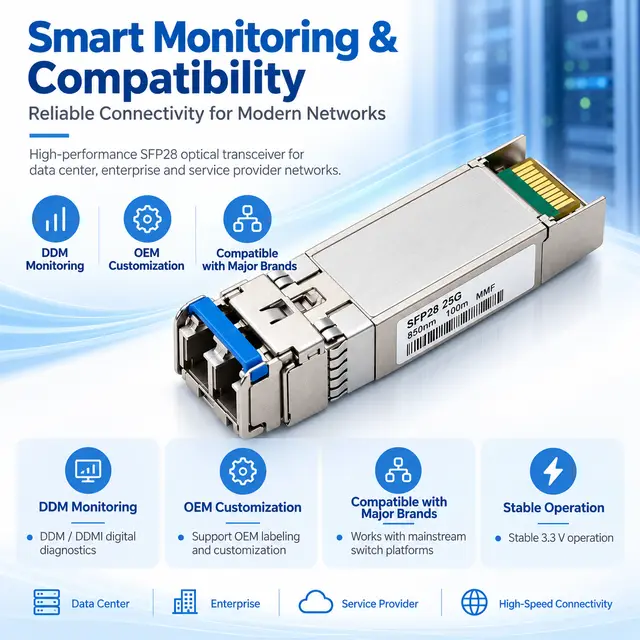

  • **Smart Monitoring** — DDM / DDMI digital diagnostics with OEM customization support.
Data rate
25G
Wavelength
850 / 1310nm
Interface
LC Duplex
Fibre / media
MMF / SMF
Diagnostics
Yes
Request a quotation Compare
  • Coded and confirmed for your host platform before production
  • Samples for evaluation in the intended port
  • Specification, test data and compliance paperwork with the order

Overview

What this module is for.

This 25G SFP28 optical transceiver module delivers high-density, hot-swappable connectivity for data center and enterprise 25G switching. Available in SR, LR, ER, and BIDI variants across multimode and single-mode fiber, it covers short- to long-reach links with a standard LC duplex interface. DDM digital diagnostics, 3.3V low-power operation, and OEM customization ensure broad compatibility with mainstream switch brands.

Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.

Check the optical budget for your path

Key selling points

  • **25G High Speed** — Compact SFP28 form factor built for 25G data center interconnection.
  • **SR / LR / ER / BIDI Series** — SR (850nm MMF), LR (1310nm SMF), ER long-reach, and single-fiber BIDI options.
  • **SMF / MMF Support** — LC duplex interface for flexible short- and long-distance fiber links.
  • **Smart Monitoring** — DDM / DDMI digital diagnostics with OEM customization support.
  • **Broad Compatibility** — Works with mainstream switch platforms; stable 3.3V operation.

Technical detail

Listed specifications.

Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

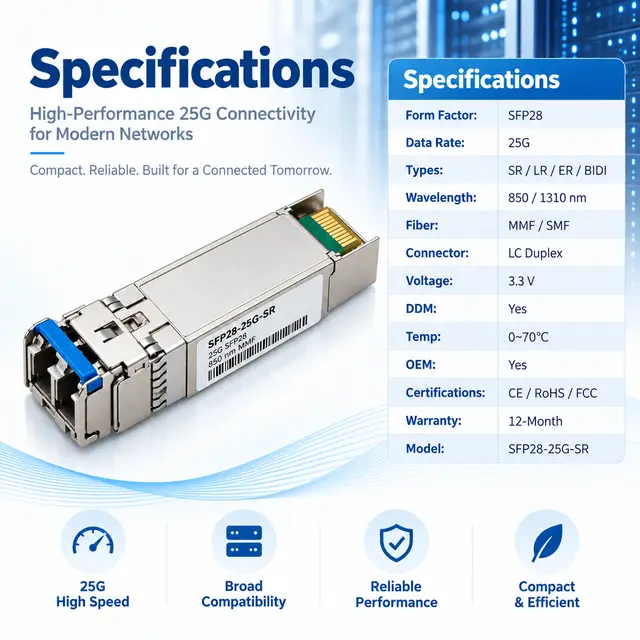

25G SFP28 Optical Transceiver Module — SR / LR / ER / BIDI — listed specifications
ParameterListed value
Form FactorSFP28
Data Rate25G
TypesSR / LR / ER / BIDI
Wavelength850 / 1310nm
Fiber TypeMMF / SMF
ConnectorLC Duplex
Supply Voltage3.3V
DDMYes
Operating Temperature0 ~ 70°C
OEMYes
CertificationCE, RoHS, FCC
Warranty12-Month Warranty
ModelSFP28-25G-SR

Technical drawings

Dimensions, structure and interfaces.

Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.

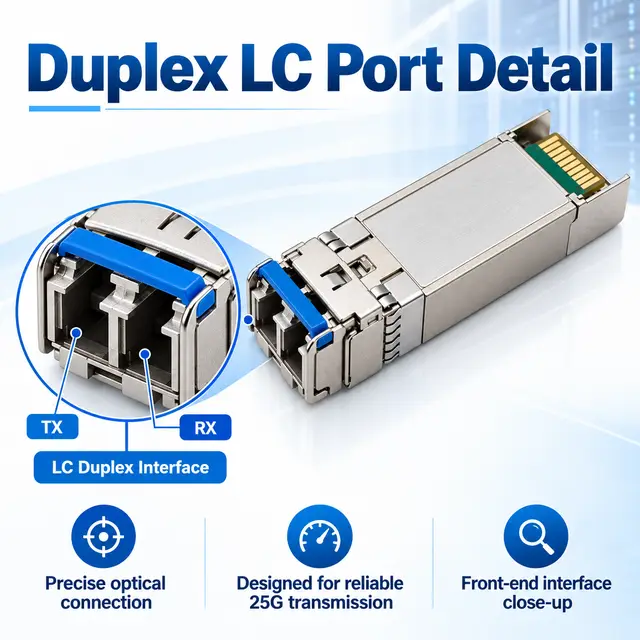

Drawing 1 of 4 — click to enlarge

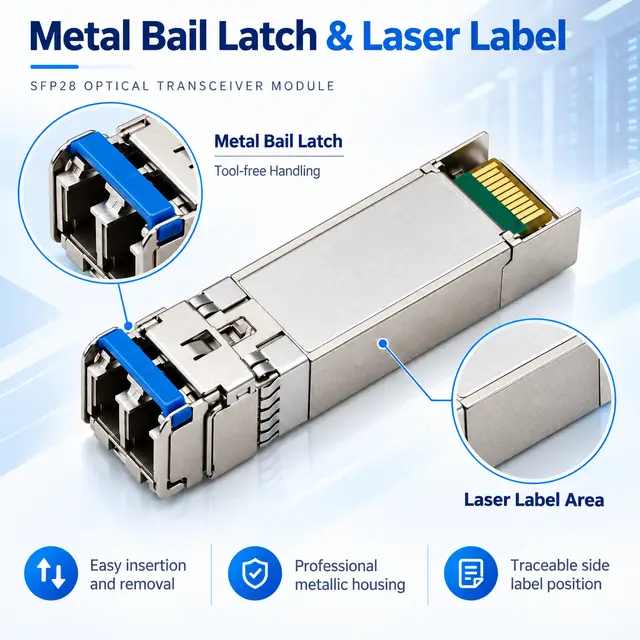

Drawing 2 of 4 — click to enlarge

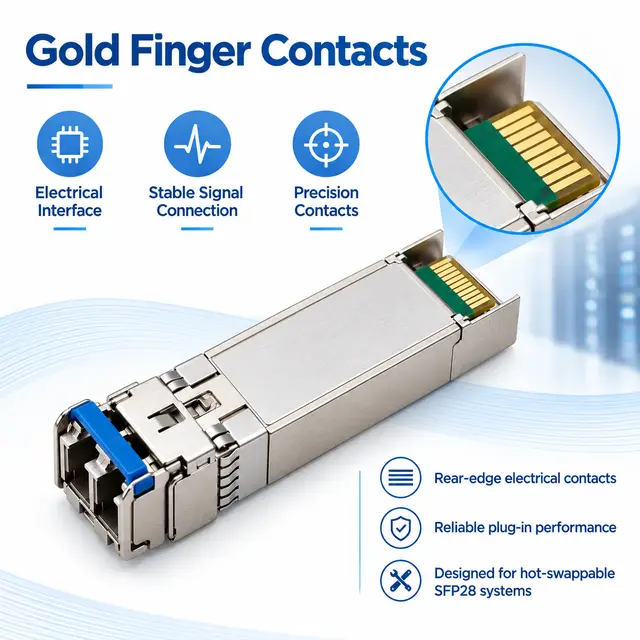

Drawing 3 of 4 — click to enlarge
Drawing 4 of 4 — click to enlarge

Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

Where it is used

Typical applications.

  • Data center 25G switching
  • server and switch interconnection
  • enterprise and service-provider networks
  • FTTX

Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.

Application concepts
Network equipment in a data centre aisle

Ordering

What is confirmed, and what we need from you.

Listed ordering information

Include this in your inquiry

  • Product reference and required quantity
  • Host brand, model, port and software version
  • Fibre or cable type, connector and installed reach
  • Operating environment and temperature grade
  • Destination, sample needs and requested schedule

MOQ, lead time, warranty and applicable documents are confirmed in the quotation.

FAQ

Questions about this model.

Which wavelength does this module use?

It is listed at 850 / 1310nm. Single-fibre BiDi modules must be ordered as matched A/B pairs so the transmit wavelength at one end matches the receive wavelength at the other. Ordering two of the same end will not link.

What connector and fibre does it need?

The listed interface is LC Duplex on MMF / SMF. Check that your patch cords, panel adapters and polarity match before installation.

Does it support DDM / DOM diagnostics?

Listed as: Yes. Digital diagnostics report optical transmit power, receive power, bias current, supply voltage and module temperature through the host, which makes commissioning and fault isolation far faster than swapping parts.

Is an industrial temperature version available?

The listed operating temperature is 0 ~ 70°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.

Can it be coded for my switch?

Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.

Can I evaluate a sample first?

Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
