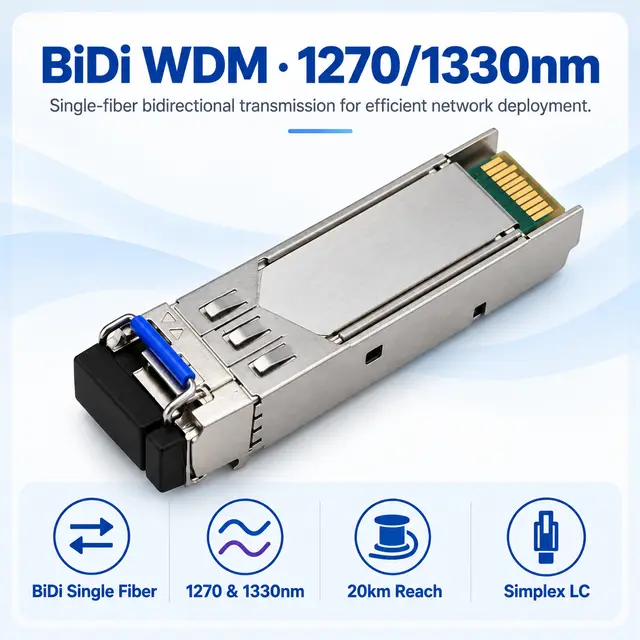

OEM 25G SFP28 WDM BiDi Single-Fiber 1270/1330nm 20km
OEM 25G SFP28 WDM BiDi | Single-Fiber 1270/1330nm 20km Simplex LC Transceiver with DDM

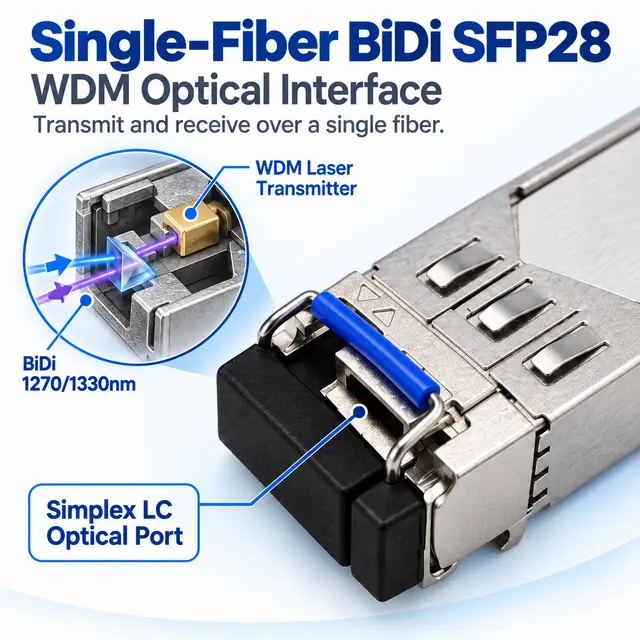

This OEM 25 Gigabit SFP28 WDM BiDi optical transceiver carries transmit and receive over a single strand of single-mode fiber. Using 1270 nm / 1330 nm WDM wavelengths and a simplex LC interface, it delivers 25 Gbps over up to 20 km for metro and data center links.

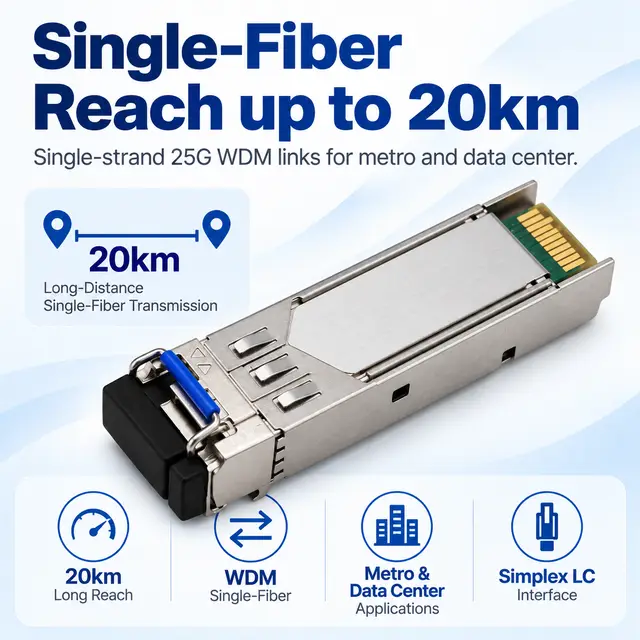

- Single-fiber 25G WDM transmission up to 20 km
- BiDi single-strand operation halves fiber usage (1270/1330 nm)
- Simplex LC connector on single-mode fiber (SMF)
- OEM coding and custom labeling supported
- Data rate
- 25 Gbps
- Wavelength
- 1270 nm / 1330 nm
- Reach
- 20 km
- Interface
- Simplex LC
- Fibre / media
- Single-Mode (SMF)
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
This OEM 25 Gigabit SFP28 WDM BiDi optical transceiver carries transmit and receive over a single strand of single-mode fiber. Using 1270 nm / 1330 nm WDM wavelengths and a simplex LC interface, it delivers 25 Gbps over up to 20 km for metro and data center links. Hot-pluggable with DDM and programmable OEM coding, it is CE / FCC / RoHS certified.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.

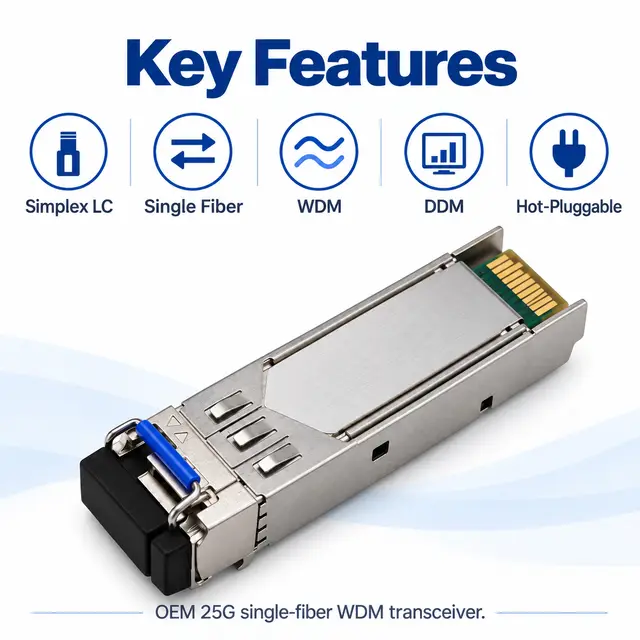

Check the optical budget for your pathKey selling points
- Single-fiber 25G WDM transmission up to 20 km
- BiDi single-strand operation halves fiber usage (1270/1330 nm)
- Simplex LC connector on single-mode fiber (SMF)
- OEM coding and custom labeling supported
- Standard SFP28 form factor, hot-pluggable
- Digital Diagnostic Monitoring (DDM) supported
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Model Number | SFP28-25G-BX20-1270/1330 |
| Data Rate | 25 Gbps |
| Transmission Mode | BiDi, Single Fiber, WDM |
| Wavelength | 1270 nm / 1330 nm |
| Transmission Distance | 20 km |
| Connector Type | Simplex LC |
| Fiber Type | Single-Mode (SMF) |
| Digital Diagnostics | DDM supported |
| Form Factor | SFP28, Hot-Pluggable |
| Application | Data Center, Metro |
| Certification | CE, FCC, RoHS |
| Warranty | 12 Months |

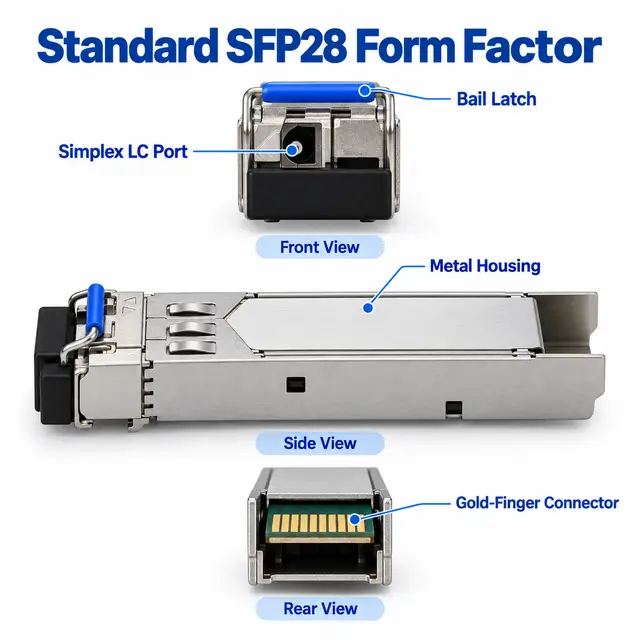

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

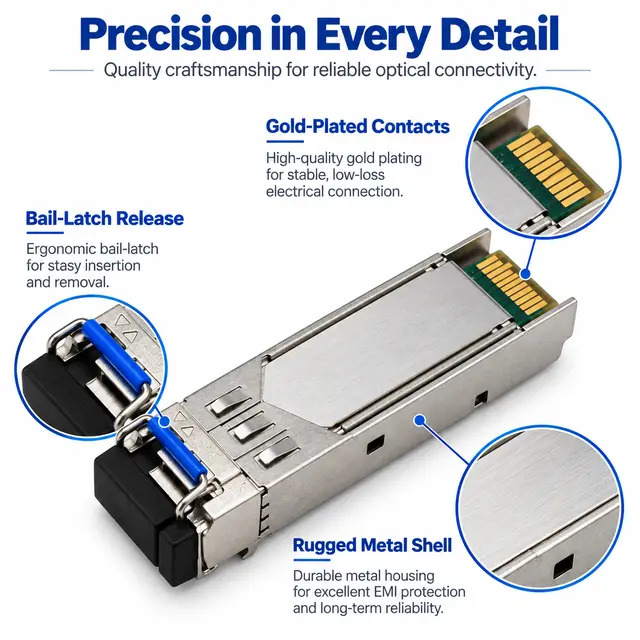

Build quality
Details that decide reliability.
Programmable OEM coding for broad interoperability
Real-time DDM monitoring of module status
Rugged metal housing for durability and EMI protection

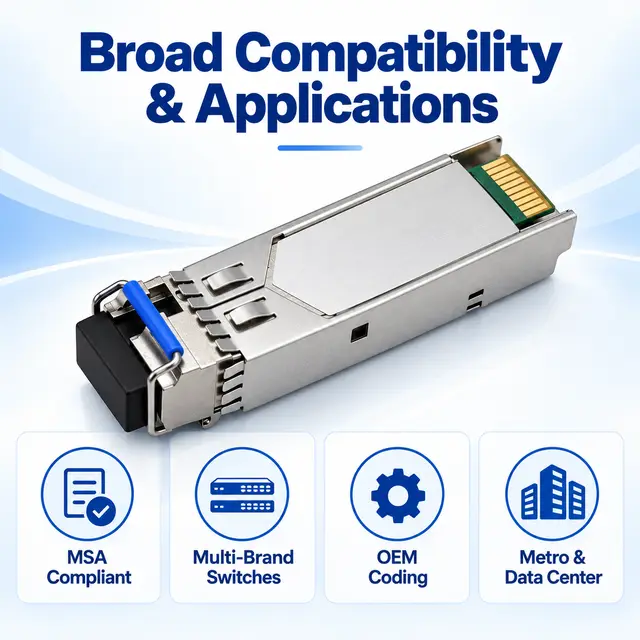

Where it is used
Typical applications.
- Metro and access single-fiber networks
- Data center interconnect over medium distances
- Carrier and ISP single-fiber deployments
- Enterprise campus long-distance links
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts

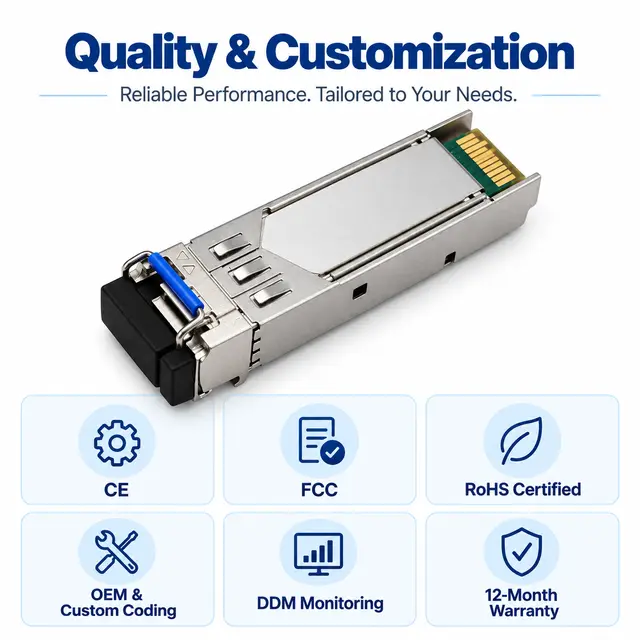

OEM / ODM
Customization options.
- OEM and custom coding for major switch brands
- Paired BiDi wavelength sets (1270/1330 and 1330/1270) supplied to match
- Custom labeling and bulk supply
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- Model
- SFP28-25G-BX20-1270/1330 (supplied in matched pairs)
- Note
- MOQ, lead time, and custom coding available on request
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the OEM 25G SFP28 WDM BiDi Single-Fiber 1270/1330nm 20km?
The listed reach is 20 km. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 1270 nm / 1330 nm. Single-fibre BiDi modules must be ordered as matched A/B pairs so the transmit wavelength at one end matches the receive wavelength at the other. Ordering two of the same end will not link.
What connector and fibre does it need?
The listed interface is Simplex LC on Single-Mode (SMF). Check that your patch cords, panel adapters and polarity match before installation.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
