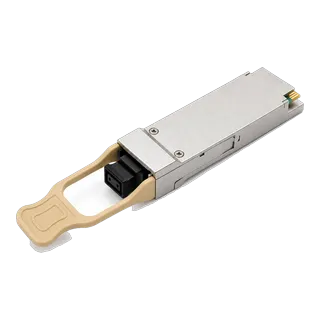

40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm — Product view 1
Product view · 1 / 6

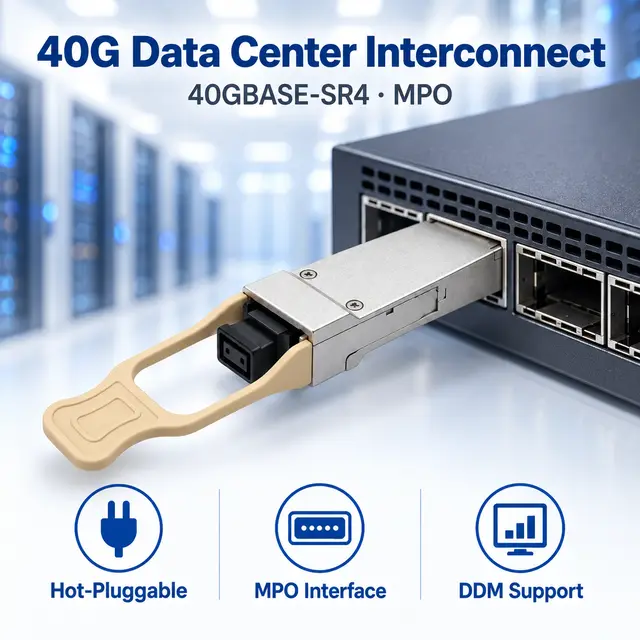

40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm — In a host switch 2
In a host switch · 2 / 6
40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm — Application view 3
Application view · 3 / 6
40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm — Application view 4
Application view · 4 / 6

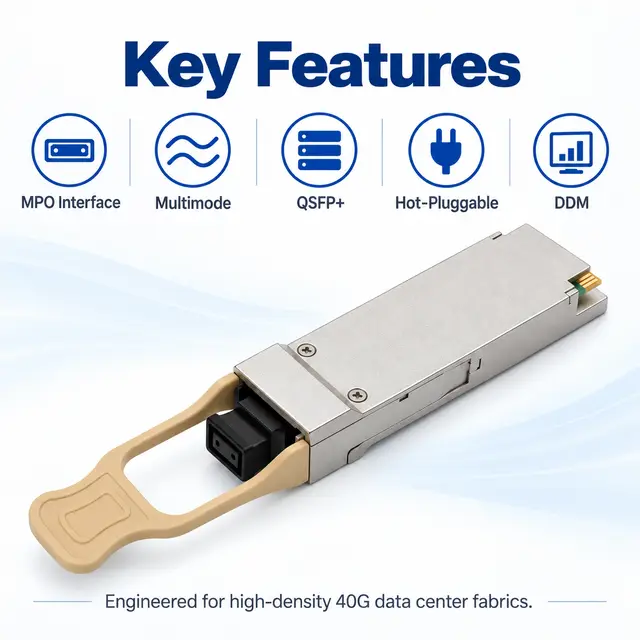

40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm — Application view 5
Application view · 5 / 6
40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm — Application view 6
Application view · 6 / 6

Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.

40G QSFP+

40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm

40GBASE-SR4 QSFP+ | 850nm 100-150m Multimode MPO Transceiver — All-Brand Compatible

The QSFP+-40G-SR4 is a 40 Gigabit 40GBASE-SR4 QSFP+ short-reach optical transceiver using four parallel 850 nm lanes over an MPO/MTP multimode interface, delivering 40 Gbps up to 100 m (OM3) / 150 m (OM4). Compatible with all major switch brands, it is hot-pluggable, DDM-capable, and CE / FCC / RoHS certified.

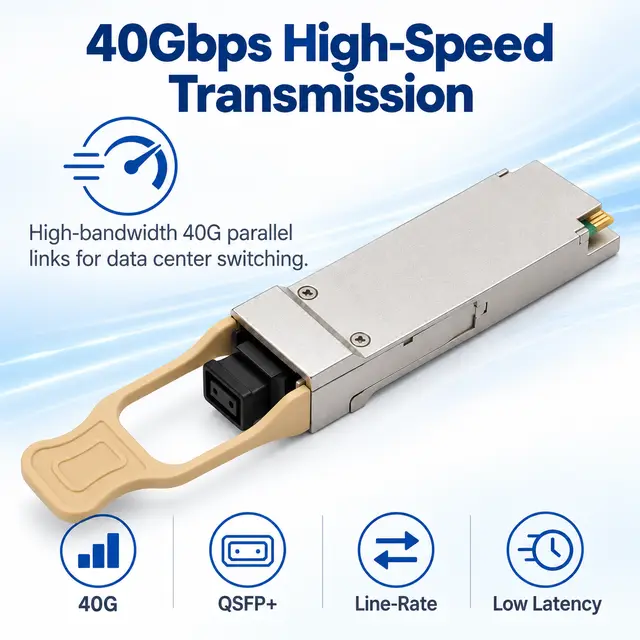

  • 40 Gbps parallel links for data center and IP networks

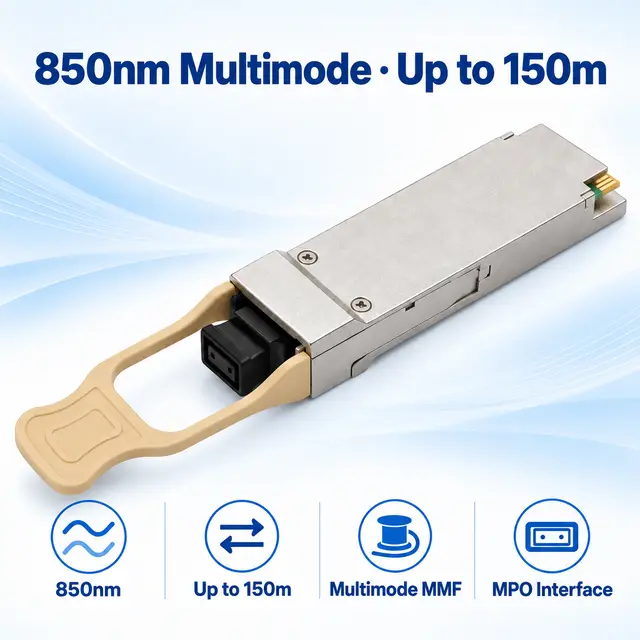

  • 850 nm multimode over MPO/MTP, reach up to 150 m

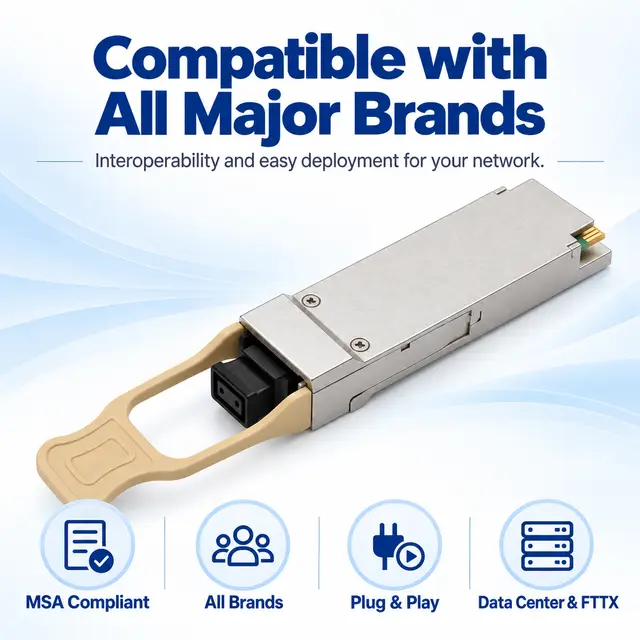

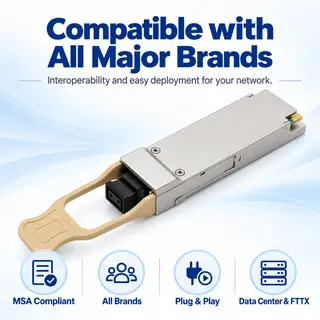

  • Compatible with all major switch brands
  • DDM monitoring for real-time module status
Data rate
40 Gbps
Wavelength
850 nm
Reach
100 m (OM3) / 150 m (OM4)
Interface
MPO / MTP
Fibre / media
Multimode (MMF)
Request a quotation Compare
  • Coded and confirmed for your host platform before production
  • Samples for evaluation in the intended port
  • Specification, test data and compliance paperwork with the order

Overview

What this module is for.

The QSFP+-40G-SR4 is a 40 Gigabit 40GBASE-SR4 QSFP+ short-reach optical transceiver using four parallel 850 nm lanes over an MPO/MTP multimode interface, delivering 40 Gbps up to 100 m (OM3) / 150 m (OM4). Compatible with all major switch brands, it is hot-pluggable, DDM-capable, and CE / FCC / RoHS certified.

Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.

Check the optical budget for your path

Key selling points

  • 40 Gbps parallel links for data center and IP networks
  • 850 nm multimode over MPO/MTP, reach up to 150 m
  • Compatible with all major switch brands
  • DDM monitoring for real-time module status
  • Hot-pluggable QSFP+ with heatsink housing

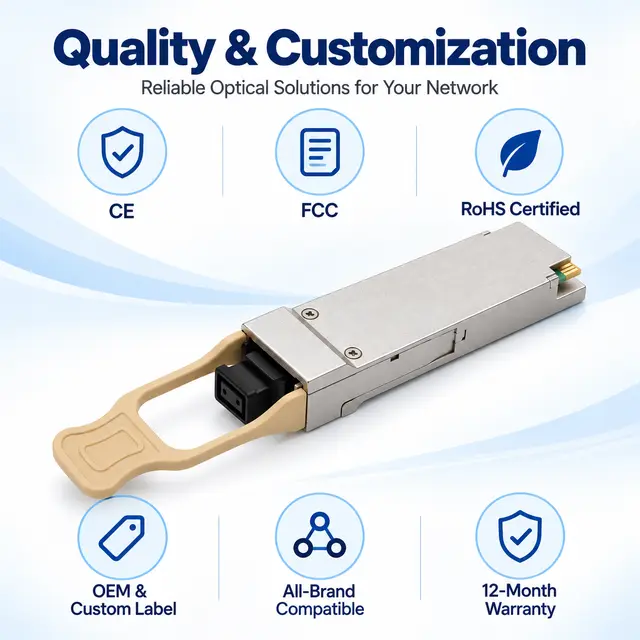

  • CE / FCC / RoHS certified; OEM and custom label supported

Technical detail

Listed specifications.

Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm — listed specifications
ParameterListed value
Model NumberQSFP+-40G-SR4
Data Rate40 Gbps
Wavelength850 nm
Transmission Distance100 m (OM3) / 150 m (OM4)
Connector TypeMPO / MTP
Fiber TypeMultimode (MMF)
Form FactorQSFP+, Hot-Pluggable
Digital DiagnosticsDDM supported
Operating Temperature0 ~ 70 °C
ApplicationData Center, IP Network, FTTX
CertificationCE, FCC, RoHS
Warranty12 Months

Technical drawings

Dimensions, structure and interfaces.

Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.

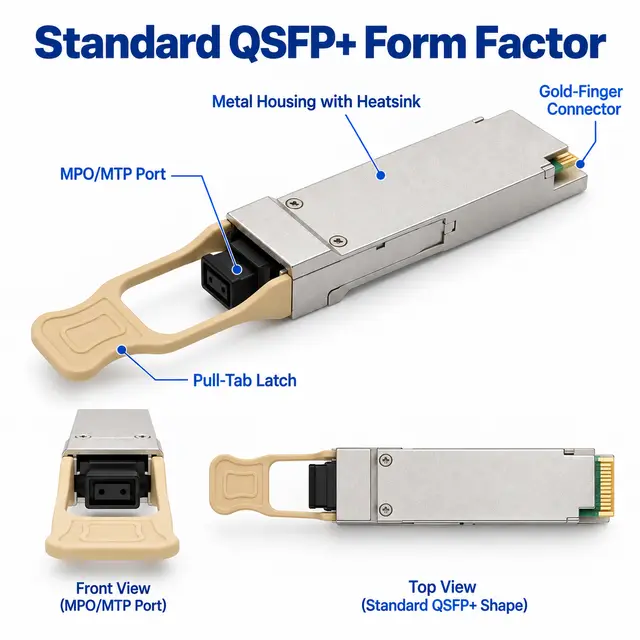

Drawing 1 of 4 — click to enlarge
Drawing 2 of 4 — click to enlarge
Drawing 3 of 4 — click to enlarge
Drawing 4 of 4 — click to enlarge

Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

Build quality

Details that decide reliability.

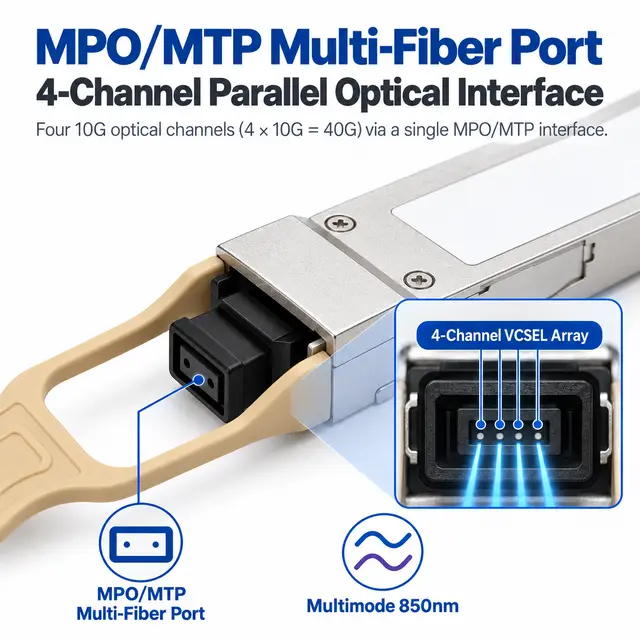

Four-channel 850 nm parallel optics for 40G aggregate bandwidth

Broad interoperability across all major switch platforms

Real-time DDM monitoring of module status

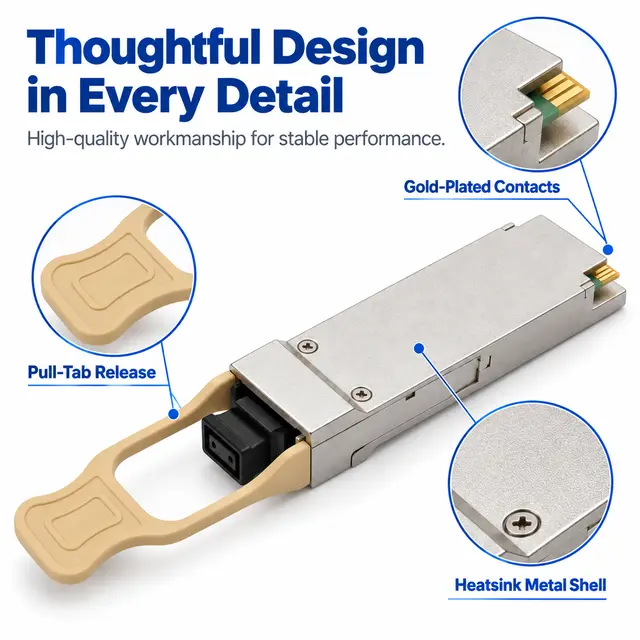

Rugged metal housing with heatsink for thermal stability

Where it is used

Typical applications.

  • Data center 40G switch-to-switch and ToR links
  • IP network and FTTX aggregation
  • High-performance computing (HPC) interconnects
  • Storage and enterprise aggregation

Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.

Application concepts
Network equipment in a data centre aisle

OEM / ODM

Customization options.

  • OEM and custom label / coding supported
  • Compatible coding for all major switch brands

Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.

Discuss a custom configuration
Optical module coding and test

Ordering

What is confirmed, and what we need from you.

Listed ordering information

Model
QSFP+-40G-SR4
Note
MOQ, lead time, and custom coding available on request

Include this in your inquiry

  • Product reference and required quantity
  • Host brand, model, port and software version
  • Fibre or cable type, connector and installed reach
  • Operating environment and temperature grade
  • Destination, sample needs and requested schedule

MOQ, lead time, warranty and applicable documents are confirmed in the quotation.

FAQ

Questions about this model.

What link distance is listed for the 40GBASE-SR4 QSFP+ 850nm 100-150m Multimode MPO Transceiver - 850 nm?

The listed reach is 100 m (OM3) / 150 m (OM4). Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.

Which wavelength does this module use?

It is listed at 850 nm. Both ends of a duplex link must use the same wavelength plan.

What connector and fibre does it need?

The listed interface is MPO / MTP on Multimode (MMF). Check that your patch cords, panel adapters and polarity match before installation.

Is an industrial temperature version available?

The listed operating temperature is 0 ~ 70 °C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.

Can it be coded for my switch?

Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.

Can I evaluate a sample first?

Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.

More in the procurement FAQ.

Related

Other models in this family.

All 40G QSFP+

Next step

Confirm this configuration with us.

Send the host platform, the installed link and the quantity. We will confirm coding, reach and lead time in the quotation.

Request a quotation
