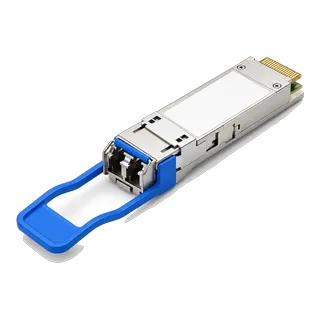

40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul — Product view 1
Product view · 1 / 6

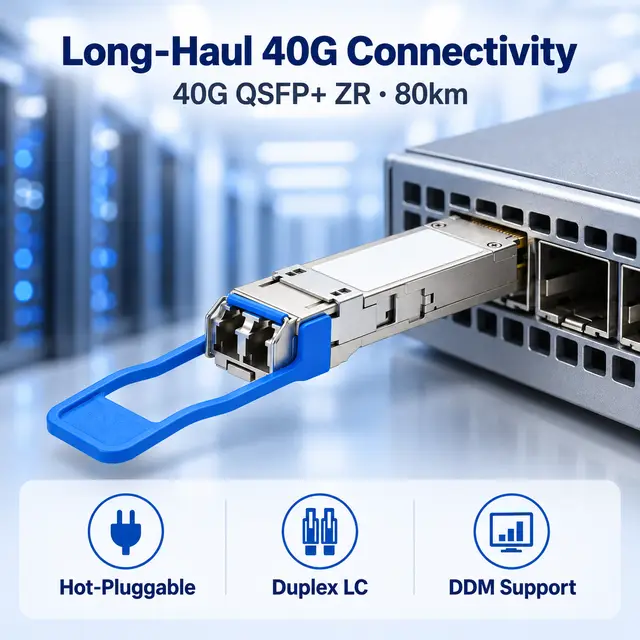

40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul — In a host switch 2
In a host switch · 2 / 6
40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul — Application view 3
Application view · 3 / 6
40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul — Application view 4
Application view · 4 / 6
40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul — Application view 5
Application view · 5 / 6
40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul — Application view 6
Application view · 6 / 6

Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.

40G QSFP+

40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul

40G QSFP+ ZR | 1310nm 80km Single-Mode Duplex LC Long-Haul Transceiver with DDM

The QSFP-40G-ZR is a 40 Gigabit QSFP+ long-haul optical transceiver operating at 1310 nm over a duplex LC single-mode interface, delivering 40 Gbps connectivity up to 80 km. It suits FTTH, metro, and IP network extension.

  • 40 Gbps long-haul single-mode links up to 80 km
  • 1310 nm over duplex LC single-mode fiber
  • Extended reach for FTTH and IP networks
  • DDM monitoring for real-time module status
Data rate
40 Gbps
Wavelength
1310 nm
Reach
80 km
Interface
Duplex LC
Fibre / media
Single-Mode (SMF)
Request a quotation Compare
  • Coded and confirmed for your host platform before production
  • Samples for evaluation in the intended port
  • Specification, test data and compliance paperwork with the order

Overview

What this module is for.

The QSFP-40G-ZR is a 40 Gigabit QSFP+ long-haul optical transceiver operating at 1310 nm over a duplex LC single-mode interface, delivering 40 Gbps connectivity up to 80 km. It suits FTTH, metro, and IP network extension. Hot-pluggable with DDM and a rugged heatsink housing, it is CE / FCC / RoHS certified.

Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.

Check the optical budget for your path

Key selling points

  • 40 Gbps long-haul single-mode links up to 80 km
  • 1310 nm over duplex LC single-mode fiber
  • Extended reach for FTTH and IP networks
  • DDM monitoring for real-time module status
  • Hot-pluggable QSFP+ with heatsink housing
  • CE / FCC / RoHS certified; OEM and custom label supported

Technical detail

Listed specifications.

Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul — listed specifications
ParameterListed value
Model NumberQSFP-40G-ZR
Data Rate40 Gbps
Wavelength1310 nm
Transmission Distance80 km
Connector TypeDuplex LC
Fiber TypeSingle-Mode (SMF)
Form FactorQSFP+, Hot-Pluggable
Digital DiagnosticsDDM supported
Operating Temperature0 ~ 70 °C
ApplicationFTTH, IP Network, Metro
CertificationCE, FCC, RoHS
Warranty12 Months

Technical drawings

Dimensions, structure and interfaces.

Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.

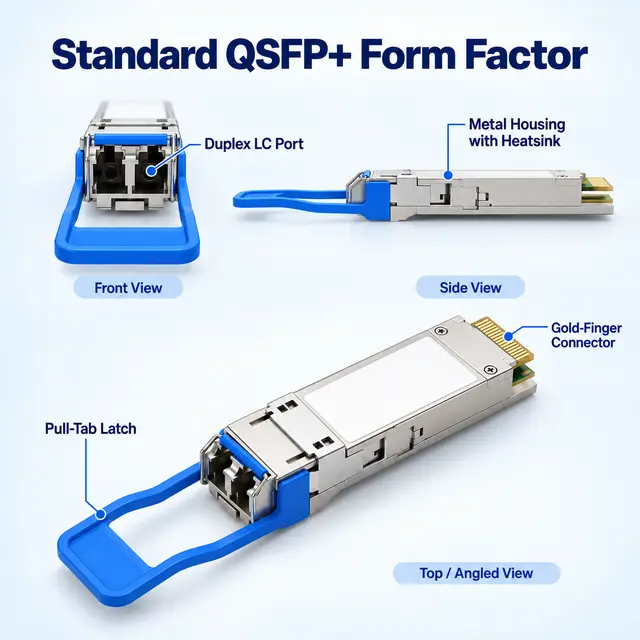

Drawing 1 of 4 — click to enlarge
Drawing 2 of 4 — click to enlarge

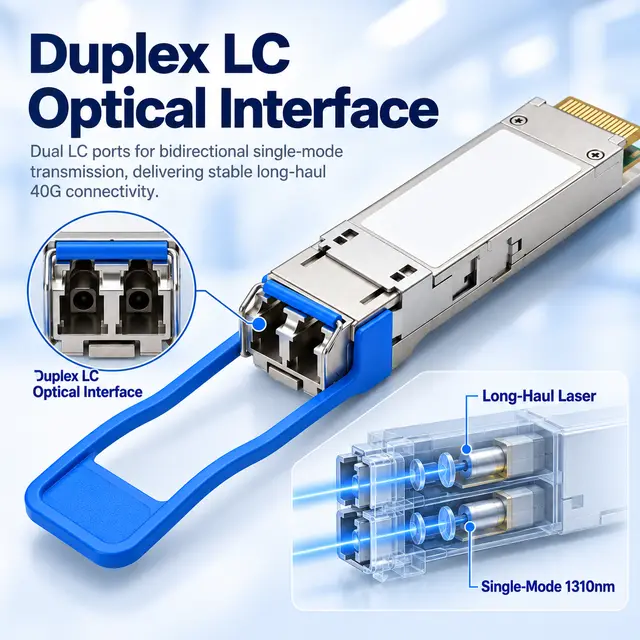

Drawing 3 of 4 — click to enlarge
Drawing 4 of 4 — click to enlarge

Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

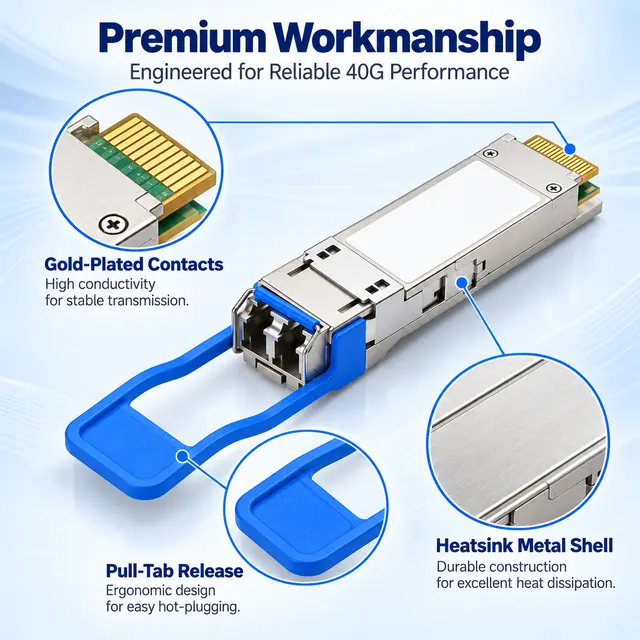

Build quality

Details that decide reliability.

Long-haul 80 km single-mode performance

Real-time DDM monitoring of module status

Hot-swappable QSFP+ design for zero-downtime maintenance

Rugged metal housing with heatsink for thermal stability

Where it is used

Typical applications.

  • FTTH and long-haul access networks
  • Metro and IP network extension
  • Carrier and ISP single-mode backbone
  • Enterprise campus long-distance links

Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.

Application concepts
Network equipment in a data centre aisle

OEM / ODM

Customization options.

  • OEM and custom label / coding supported
  • Compatible coding for major switch brands on request

Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.

Discuss a custom configuration
Optical module coding and test

Ordering

What is confirmed, and what we need from you.

Listed ordering information

Model
QSFP-40G-ZR
Note
MOQ, lead time, and custom coding available on request

Include this in your inquiry

  • Product reference and required quantity
  • Host brand, model, port and software version
  • Fibre or cable type, connector and installed reach
  • Operating environment and temperature grade
  • Destination, sample needs and requested schedule

MOQ, lead time, warranty and applicable documents are confirmed in the quotation.

FAQ

Questions about this model.

What link distance is listed for the 40G QSFP+ ZR 1310nm 80km Single-Mode Duplex LC Long-Haul?

The listed reach is 80 km. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.

Which wavelength does this module use?

It is listed at 1310 nm. Both ends of a duplex link must use the same wavelength plan.

What connector and fibre does it need?

The listed interface is Duplex LC on Single-Mode (SMF). Check that your patch cords, panel adapters and polarity match before installation.

Is an industrial temperature version available?

The listed operating temperature is 0 ~ 70 °C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.

Can it be coded for my switch?

Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.

Can I evaluate a sample first?

Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
