Four-channel 850 nm parallel optics for 40G aggregate bandwidth
Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.
40G QSFP+ SR4 850nm 100-300m Multimode MPO Transceiver —
40G QSFP+ SR4 | 850nm 100-300m Multimode MPO Transceiver — Widespread Compatibility, Factory Outlet
The QSFP+40G-SR4 is a 40 Gigabit QSFP+ short-reach optical transceiver using four parallel 850 nm lanes over an MPO/MTP multimode interface, delivering 40 Gbps up to 100 m (OM3) / 300 m (OM4). Designed for widespread switch compatibility and offered factory-direct, it is hot-pluggable, DDM-capable, and CE / FCC / RoHS certified.

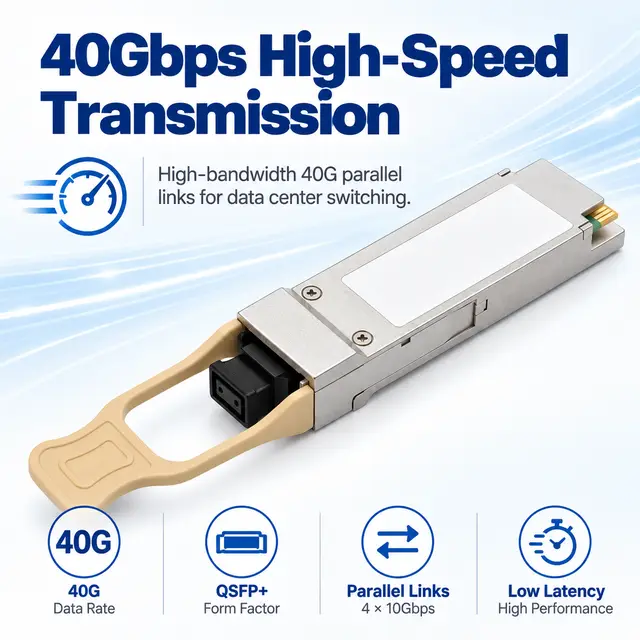

- 40 Gbps parallel links for data center switching

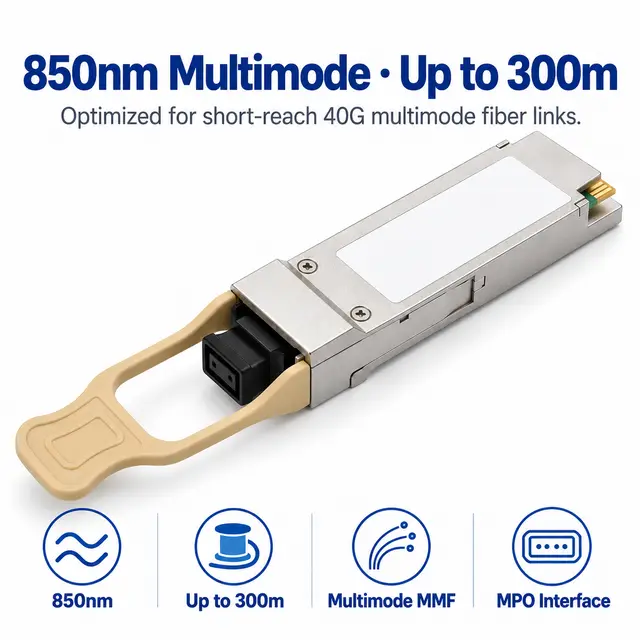

- 850 nm multimode over MPO/MTP, reach up to 300 m

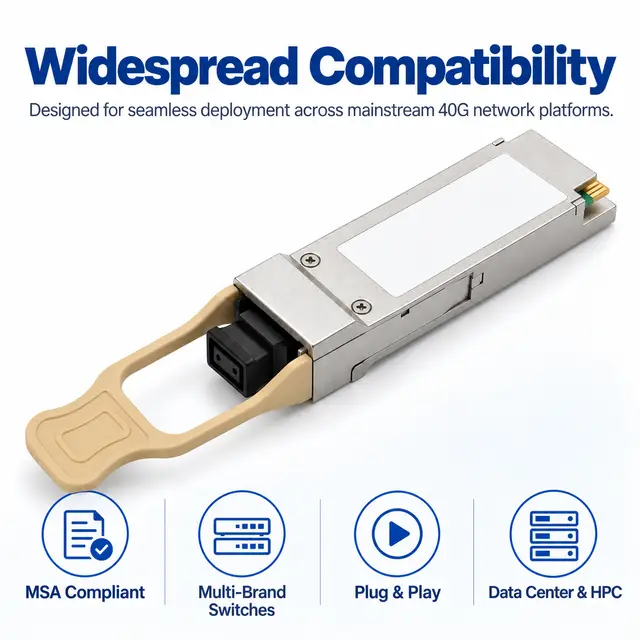

- Widespread compatibility with major switch platforms
- DDM monitoring for real-time module status
- Data rate
- 40 Gbps
- Wavelength
- 850 nm
- Reach
- 100 m (OM3) / 300 m (OM4)
- Interface
- MPO / MTP
- Fibre / media
- Multimode (MMF)
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
The QSFP+40G-SR4 is a 40 Gigabit QSFP+ short-reach optical transceiver using four parallel 850 nm lanes over an MPO/MTP multimode interface, delivering 40 Gbps up to 100 m (OM3) / 300 m (OM4). Designed for widespread switch compatibility and offered factory-direct, it is hot-pluggable, DDM-capable, and CE / FCC / RoHS certified.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points

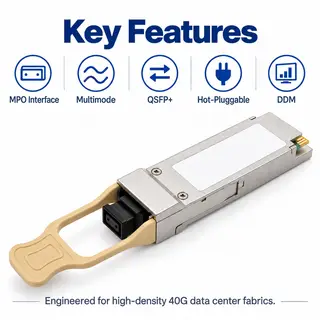

- 40 Gbps parallel links for data center switching
- 850 nm multimode over MPO/MTP, reach up to 300 m
- Widespread compatibility with major switch platforms
- DDM monitoring for real-time module status
- Hot-pluggable QSFP+ with heatsink housing
- CE / FCC / RoHS certified; factory-outlet pricing
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Model Number | QSFP+40G-SR4 |
| Data Rate | 40 Gbps |
| Wavelength | 850 nm |
| Transmission Distance | 100 m (OM3) / 300 m (OM4) |
| Connector Type | MPO / MTP |
| Fiber Type | Multimode (MMF) |
| Form Factor | QSFP+, Hot-Pluggable |
| Digital Diagnostics | DDM supported |
| Operating Temperature | 0 ~ 70 °C |
| Application | Data Center, IP Network |

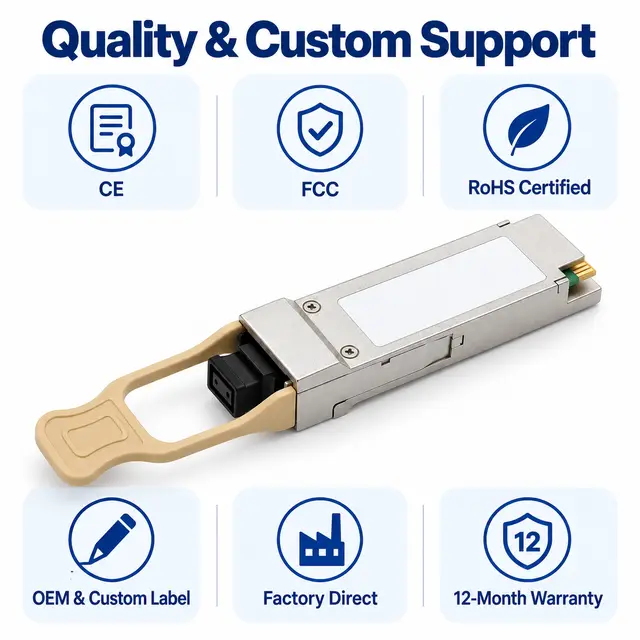

| Certification | CE, FCC, RoHS |
| Warranty | 12 Months |

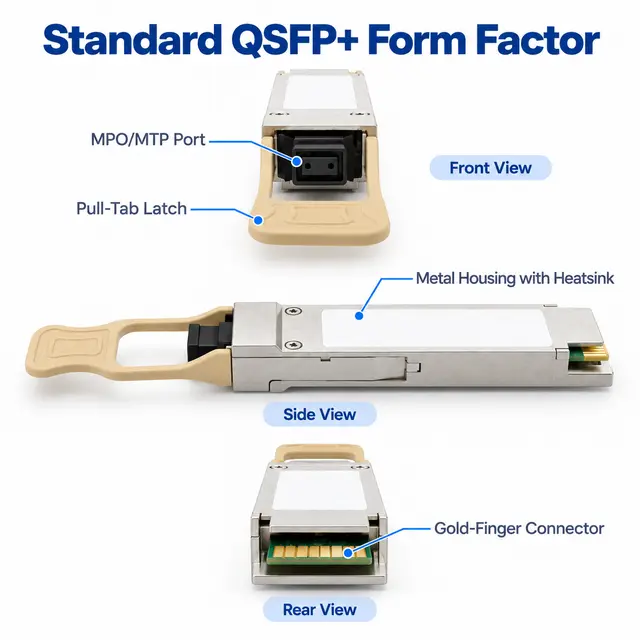

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Build quality
Details that decide reliability.

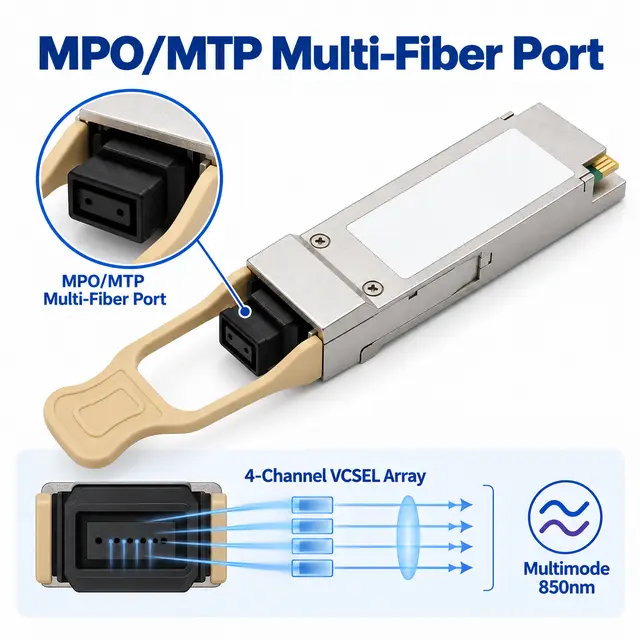

MPO/MTP multi-fiber interface for high-density cabling
Real-time DDM monitoring of module status
Rugged metal housing with heatsink for thermal stability
Where it is used
Typical applications.

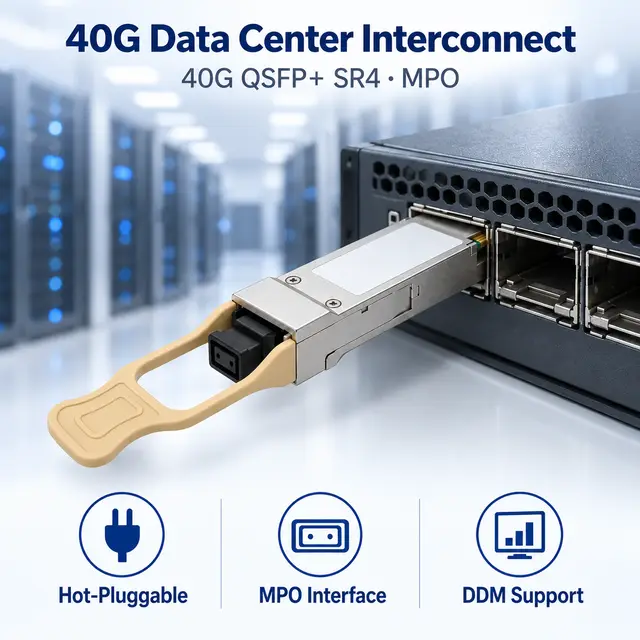

- Data center 40G switch-to-switch and ToR links
- High-density parallel-optics fabrics
- High-performance computing (HPC) interconnects
- Storage and enterprise aggregation
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
OEM / ODM
Customization options.
- OEM and custom label / coding supported
- Compatible coding for major switch brands on request
- Factory-outlet wholesale supply
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- Model
- QSFP+40G-SR4
- Note
- MOQ, lead time, and custom coding available on request
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 40G QSFP+ SR4 850nm 100-300m Multimode MPO Transceiver —?
The listed reach is 100 m (OM3) / 300 m (OM4). Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 850 nm. Both ends of a duplex link must use the same wavelength plan.
What connector and fibre does it need?
The listed interface is MPO / MTP on Multimode (MMF). Check that your patch cords, panel adapters and polarity match before installation.
Is an industrial temperature version available?
The listed operating temperature is 0 ~ 70 °C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
