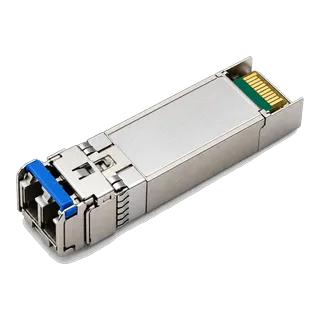

25G SFP28 SR 850nm 100m Multimode Transceiver
25G SFP28 SR | 850nm 100m Multimode Transceiver for Data Center ToR, Server Uplinks & HPC
The SFP28-25G-SR is a 25 Gigabit SFP28 short-reach optical transceiver purpose-built for data center fabrics. Using an 850 nm VCSEL over duplex LC multimode fiber, it delivers reliable 25 Gbps connectivity up to 100 m for top-of-rack (ToR) switching, server uplinks, HPC interconnects, and storage networking.

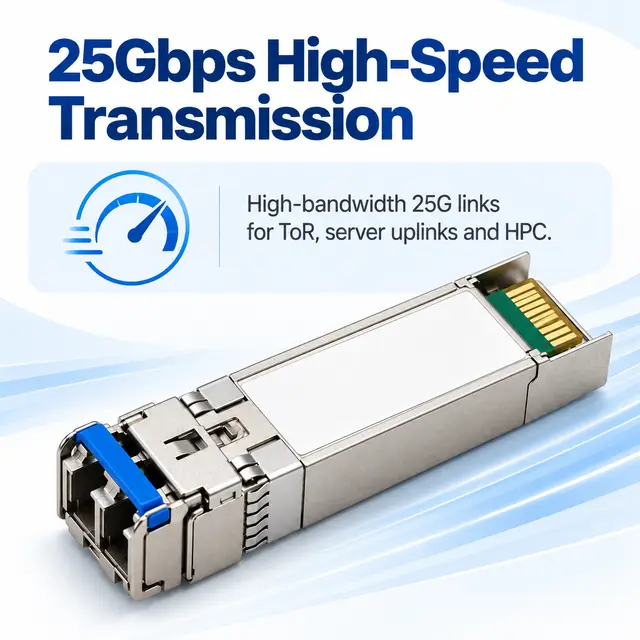

- 25 Gbps high-bandwidth links for ToR, server uplinks and HPC

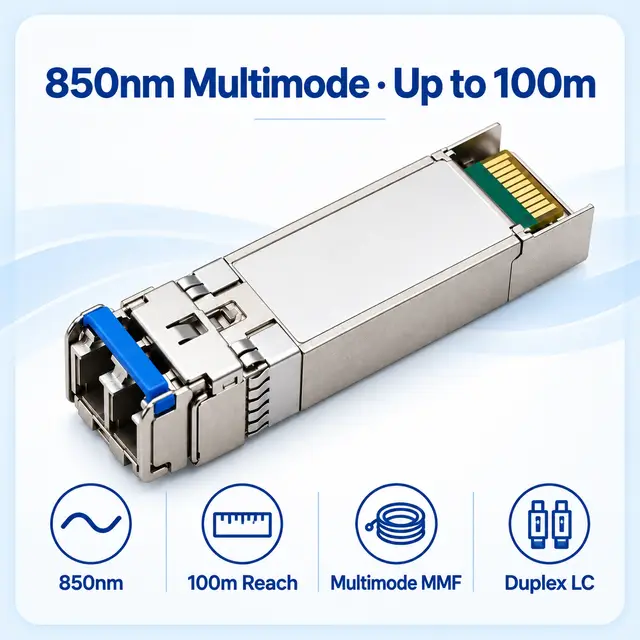

- 850 nm multimode transmission, reach up to 100 m
- Duplex LC connector on multimode fiber (MMF)
- Reliable VCSEL transmitter with DDM support
- Data rate
- 25 Gbps
- Wavelength
- 850 nm
- Reach
- 100 m
- Interface
- Duplex LC
- Fibre / media
- Multimode (MMF)
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
The SFP28-25G-SR is a 25 Gigabit SFP28 short-reach optical transceiver purpose-built for data center fabrics. Using an 850 nm VCSEL over duplex LC multimode fiber, it delivers reliable 25 Gbps connectivity up to 100 m for top-of-rack (ToR) switching, server uplinks, HPC interconnects, and storage networking. Hot-pluggable, SFP28 MSA-compliant, and CE / FCC / RoHS certified.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points

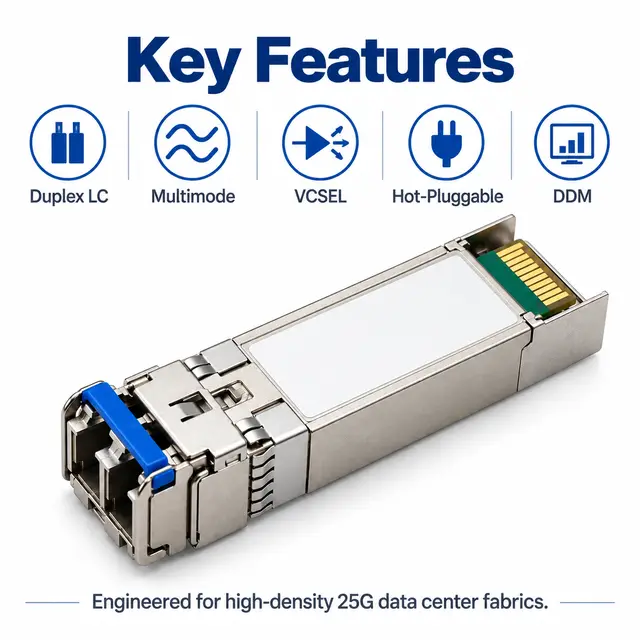

- 25 Gbps high-bandwidth links for ToR, server uplinks and HPC
- 850 nm multimode transmission, reach up to 100 m
- Duplex LC connector on multimode fiber (MMF)
- Reliable VCSEL transmitter with DDM support
- Standard SFP28 form factor, hot-pluggable
- CE / FCC / RoHS certified; 3-year warranty, factory-direct
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Model Number | SFP28-25G-SR |
| Data Rate | 25 Gbps |
| Wavelength | 850 nm |
| Transmission Distance | 100 m |
| Connector Type | Duplex LC |
| Fiber Type | Multimode (MMF) |
| Transmitter | VCSEL |
| Digital Diagnostics | DDM supported |
| Form Factor | SFP28, Hot-Pluggable |
| Application | Data Center ToR, HPC, Storage |
| Certification | CE, FCC, RoHS |
| Warranty | 3 Years |

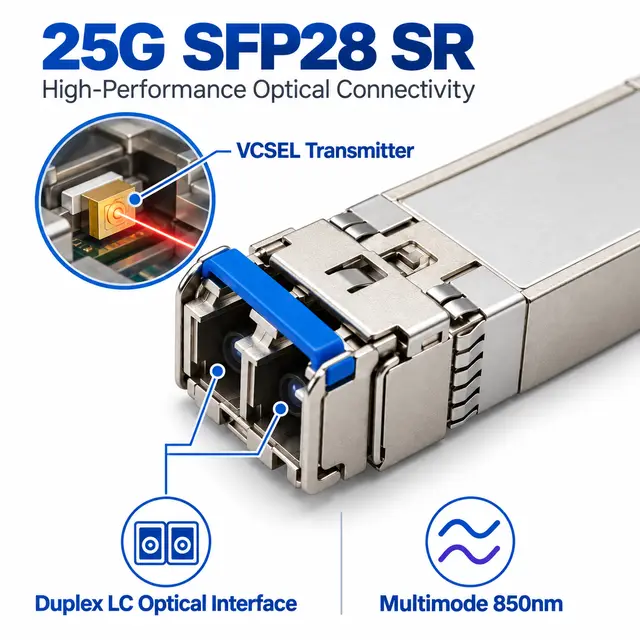

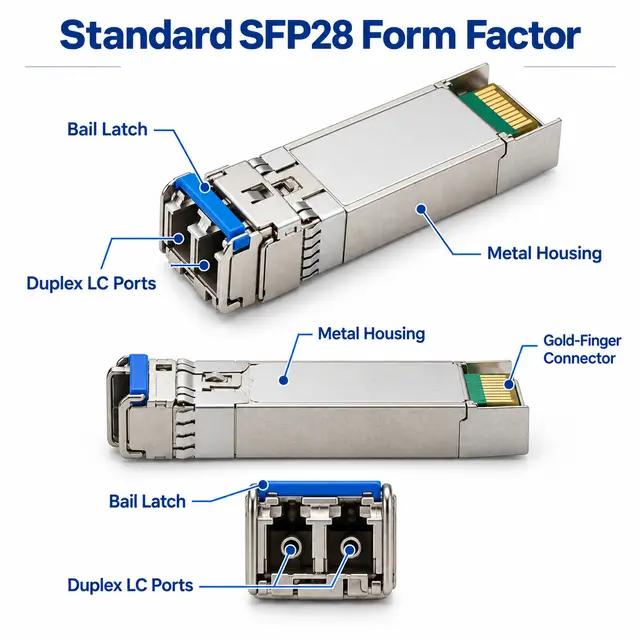

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

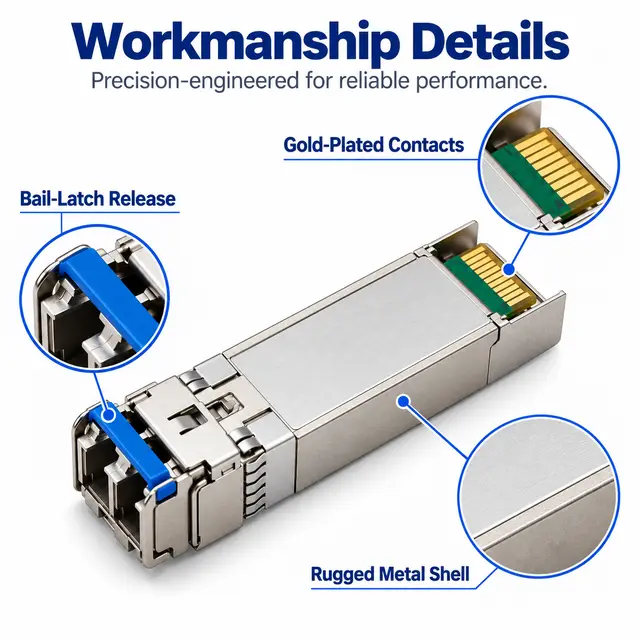

Build quality
Details that decide reliability.
Real-time DDM monitoring of module status
Hot-swappable SFP28 design for zero-downtime maintenance
Rugged metal housing for durability and EMI protection

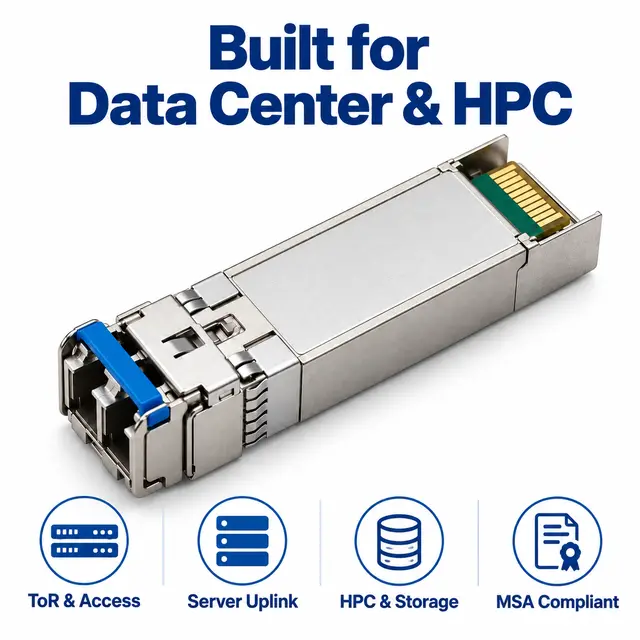

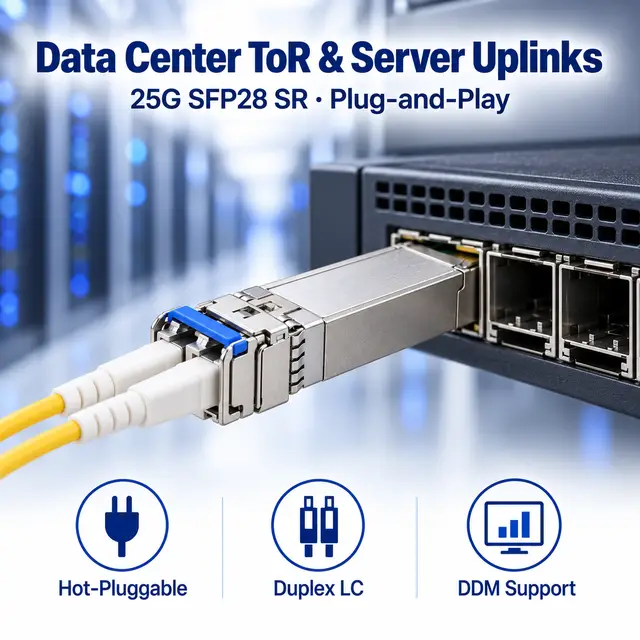

Where it is used
Typical applications.
- Data center top-of-rack (ToR) and access-edge switching
- 25G server and NIC uplinks
- High-performance computing (HPC) clusters
- Storage networking and east-west fabric links
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts

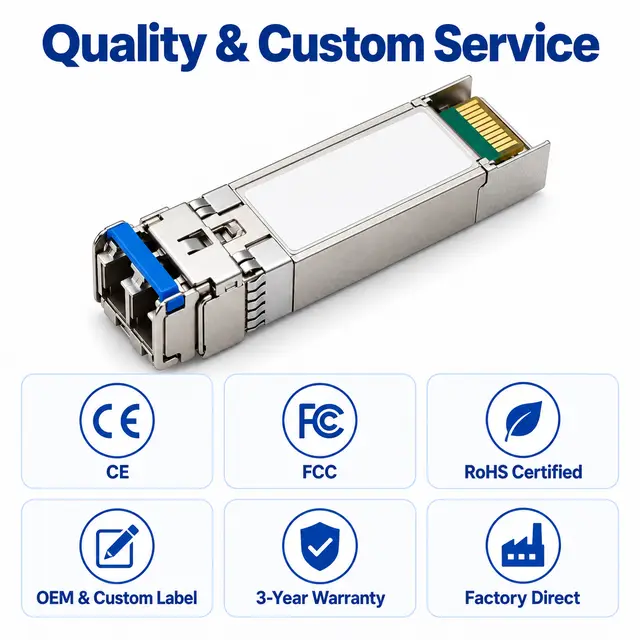

OEM / ODM
Customization options.
- OEM and custom label / coding supported
- Compatible coding for major switch brands on request
- Factory-direct wholesale and bulk supply
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- Model
- SFP28-25G-SR
- Note
- MOQ, lead time, and custom coding available on request
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 25G SFP28 SR 850nm 100m Multimode Transceiver?
The listed reach is 100 m. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 850 nm. Both ends of a duplex link must use the same wavelength plan.
What connector and fibre does it need?
The listed interface is Duplex LC on Multimode (MMF). Check that your patch cords, panel adapters and polarity match before installation.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
