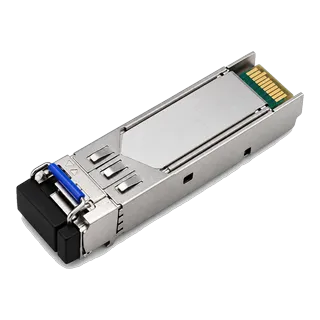

25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex — Product view 1
Product view · 1 / 6

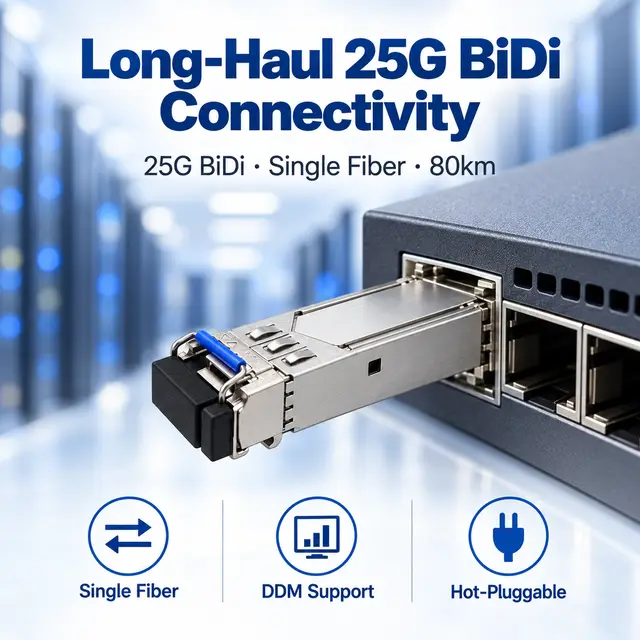

25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex — In a host switch 2
In a host switch · 2 / 6

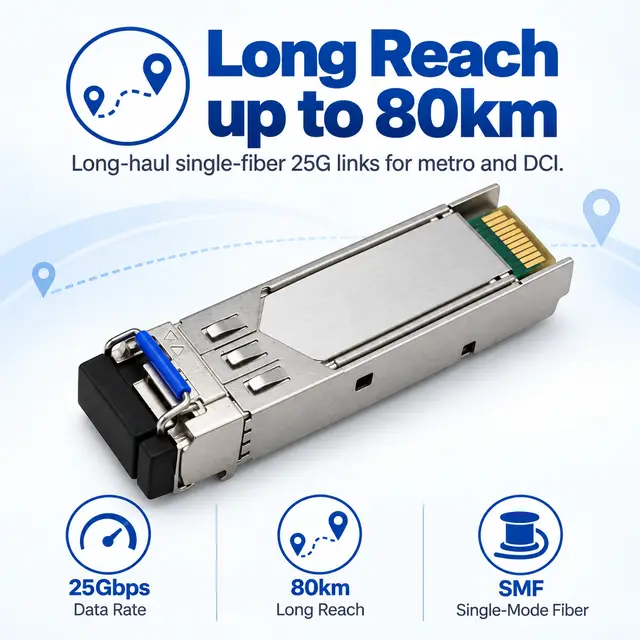

25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex — Application view 3
Application view · 3 / 6

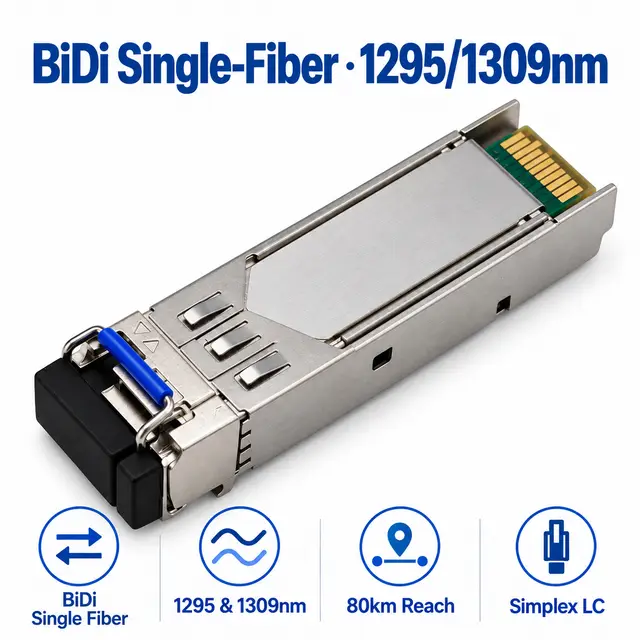

25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex — Application view 4
Application view · 4 / 6

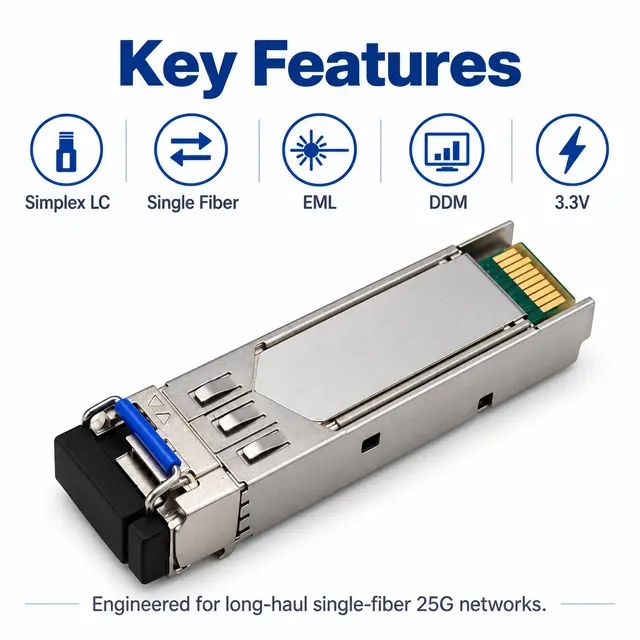

25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex — Application view 5
Application view · 5 / 6

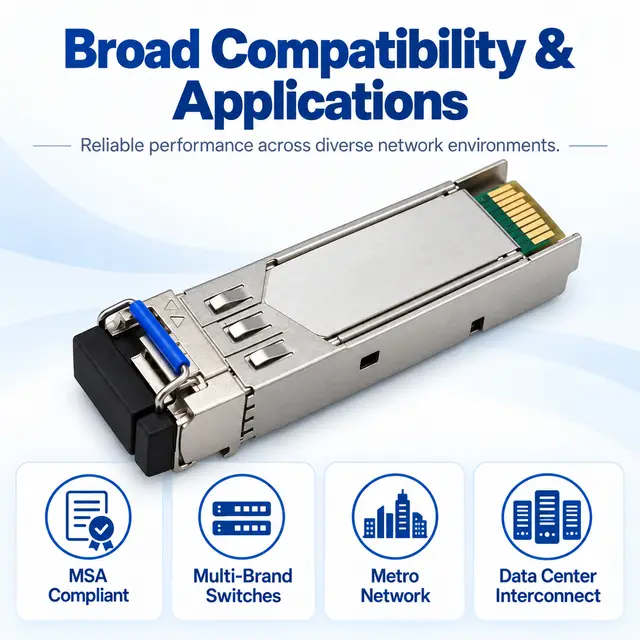

25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex — Application view 6
Application view · 6 / 6

Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.

25G SFP28

25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex

25G SFP28 BiDi BX80 | Single-Fiber 1295/1309nm 80km Simplex LC Transceiver with DDM

The SFP28-25G-BX80 is a 25 Gigabit bidirectional (BiDi) SFP28 optical transceiver that carries transmit and receive over a single strand of single-mode fiber. Using 1295 nm / 1309 nm wavelengths, an EML transmitter, and a simplex LC interface, it delivers long-haul reach up to 80 km for metro and data center interconnect.

  • Long-haul single-fiber 25G transmission up to 80 km
  • BiDi single-strand operation halves fiber usage (1295/1309 nm)
  • Simplex LC connector on single-mode fiber (SMF)
  • EML transmitter for high-power long-reach performance
Data rate
25 Gbps
Wavelength
1295 nm / 1309 nm
Reach
80 km
Interface
Simplex LC
Fibre / media
Single-Mode (SMF)
Request a quotation Compare
  • Coded and confirmed for your host platform before production
  • Samples for evaluation in the intended port
  • Specification, test data and compliance paperwork with the order

Overview

What this module is for.

The SFP28-25G-BX80 is a 25 Gigabit bidirectional (BiDi) SFP28 optical transceiver that carries transmit and receive over a single strand of single-mode fiber. Using 1295 nm / 1309 nm wavelengths, an EML transmitter, and a simplex LC interface, it delivers long-haul reach up to 80 km for metro and data center interconnect. It runs on 3.3 V, is hot-pluggable, and includes digital diagnostic monitoring (DDM).

Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.

Check the optical budget for your path

Key selling points

  • Long-haul single-fiber 25G transmission up to 80 km
  • BiDi single-strand operation halves fiber usage (1295/1309 nm)
  • Simplex LC connector on single-mode fiber (SMF)
  • EML transmitter for high-power long-reach performance
  • 3.3 V supply, hot-pluggable SFP28 form factor
  • Digital Diagnostic Monitoring (DDM) supported

Technical detail

Listed specifications.

Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.

25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex — listed specifications
ParameterListed value
Model NumberSFP28-25G-BX80
Data Rate25 Gbps
Transmission ModeBiDi, Single Fiber
Wavelength1295 nm / 1309 nm
Transmission Distance80 km
Connector TypeSimplex LC
Fiber TypeSingle-Mode (SMF)
TransmitterEML
Supply Voltage3.3 V
Operating Temperature0 ~ 70 °C
Digital DiagnosticsDDM supported
Form FactorSFP28, Hot-Pluggable
ApplicationData Center, Metro
Warranty12 Months

Technical drawings

Dimensions, structure and interfaces.

Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.

Drawing 1 of 4 — click to enlarge

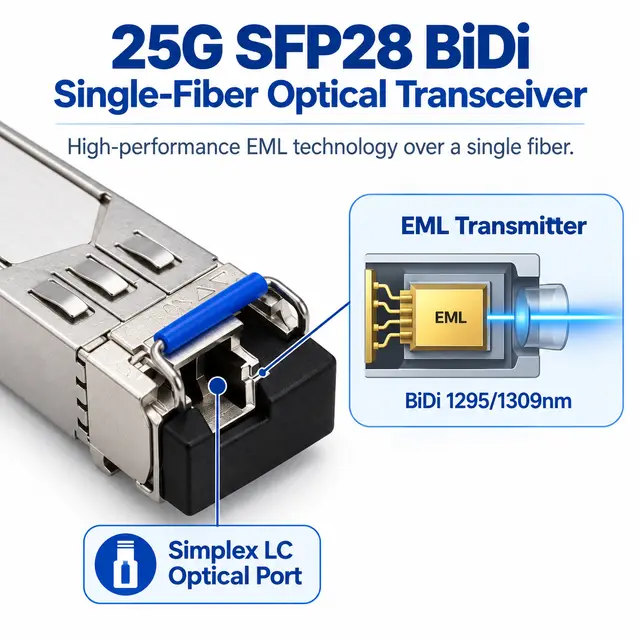

Drawing 2 of 4 — click to enlarge

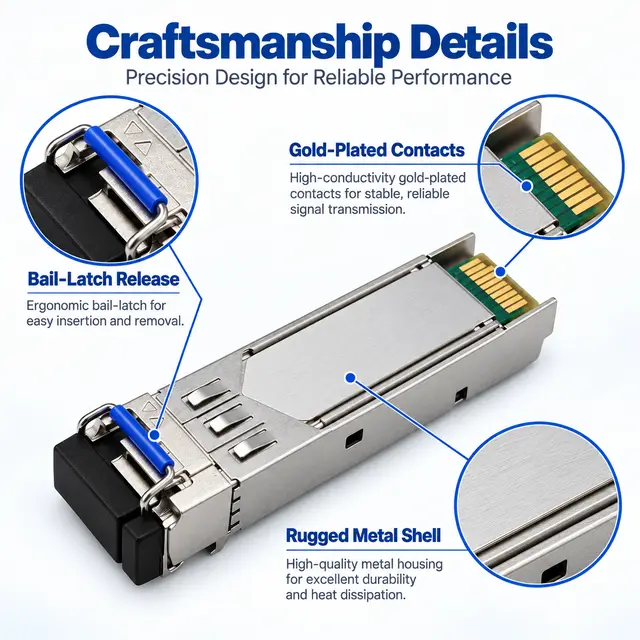

Drawing 3 of 4 — click to enlarge

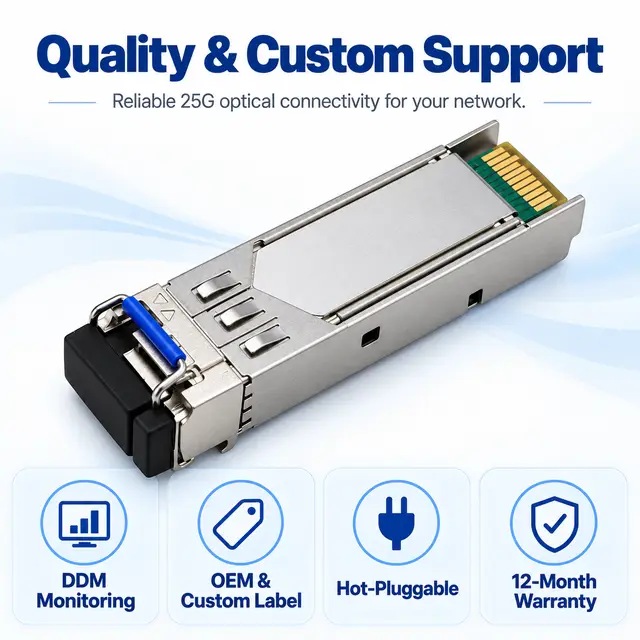

Drawing 4 of 4 — click to enlarge

Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

Build quality

Details that decide reliability.

Single-fiber BiDi design reduces fiber infrastructure cost

EML transmitter for 80 km long-haul reach

Real-time DDM monitoring of module status

Rugged metal housing for durability and EMI protection

Where it is used

Typical applications.

  • Metro and long-haul 25G transport
  • Data center interconnect (DCI) over long distances
  • Carrier and ISP single-fiber deployments
  • IP network backbone extension

Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.

Application concepts
Network equipment in a data centre aisle

OEM / ODM

Customization options.

  • OEM and custom label / coding supported
  • Paired BiDi wavelength sets supplied to match
  • Compatible coding for major switch brands on request

Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.

Discuss a custom configuration
Optical module coding and test

Ordering

What is confirmed, and what we need from you.

Listed ordering information

Model
SFP28-25G-BX80 (supplied in matched pairs; MOQ 1 pair)
Note
MOQ, lead time, and custom coding available on request

Include this in your inquiry

  • Product reference and required quantity
  • Host brand, model, port and software version
  • Fibre or cable type, connector and installed reach
  • Operating environment and temperature grade
  • Destination, sample needs and requested schedule

MOQ, lead time, warranty and applicable documents are confirmed in the quotation.

FAQ

Questions about this model.

What link distance is listed for the 25G SFP28 BiDi BX80 Single-Fiber 1295/1309nm 80km Simplex?

The listed reach is 80 km. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.

Which wavelength does this module use?

It is listed at 1295 nm / 1309 nm. Single-fibre BiDi modules must be ordered as matched A/B pairs so the transmit wavelength at one end matches the receive wavelength at the other. Ordering two of the same end will not link.

What connector and fibre does it need?

The listed interface is Simplex LC on Single-Mode (SMF). Check that your patch cords, panel adapters and polarity match before installation.

Is an industrial temperature version available?

The listed operating temperature is 0 ~ 70 °C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.

Can it be coded for my switch?

Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.

Can I evaluate a sample first?

Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
