10G SFP+ BiDi BX20 20km Tx1330/Rx1270nm Simplex LC SMF DDM
10G SFP+ BiDi BX20 20km Tx1330/Rx1270nm Simplex LC SMF DDM Low-Power Transceiver for PON/FTTH
This low-power 10G SFP+ single-fiber bidirectional (BiDi) transceiver transmits at 1330nm and receives at 1270nm over one strand of single-mode fiber up to 20km, with an LC simplex interface and DDM. Built to the SFP+ MSA standard, it is well suited to PON and FTTH access networks.
- Single-fiber BiDi design — 50% fiber saving over dual-fiber links
- Low power consumption for dense access deployments
- 20km reach on single-mode fiber at 10Gb/s

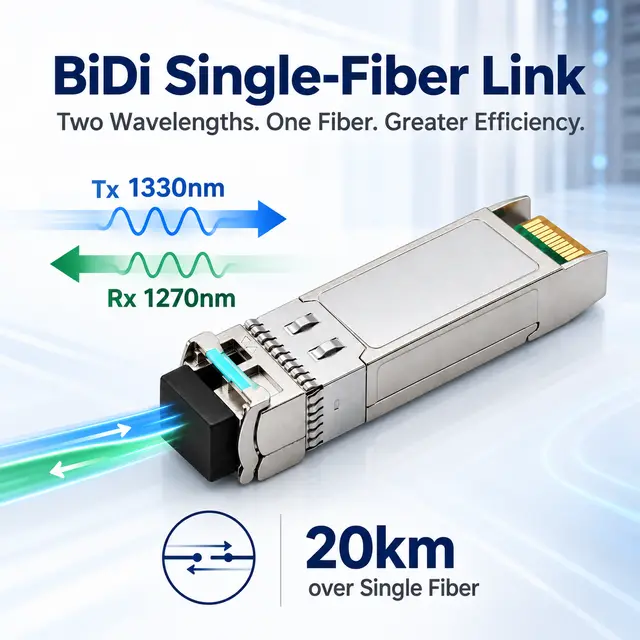

- Tx1330nm/Rx1270nm WDM with real-time DDM monitoring
- Data rate
- 10 Gb/s
- Wavelength
- Tx 1330nm / Rx 1270nm (single fiber BiDi)
- Reach
- 20 km
- Interface
- LC (Simplex)
- Fibre / media
- Single-Mode, Single Fiber
- Diagnostics
- Yes
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
This low-power 10G SFP+ single-fiber bidirectional (BiDi) transceiver transmits at 1330nm and receives at 1270nm over one strand of single-mode fiber up to 20km, with an LC simplex interface and DDM. Built to the SFP+ MSA standard, it is well suited to PON and FTTH access networks.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- Single-fiber BiDi design — 50% fiber saving over dual-fiber links
- Low power consumption for dense access deployments
- 20km reach on single-mode fiber at 10Gb/s
- Tx1330nm/Rx1270nm WDM with real-time DDM monitoring
- SFP+ MSA-compliant, hot-pluggable — plug-and-play with mainstream switches
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Type | Fiber Optic Transceiver (SFP+) |
| Data Rate | 10 Gb/s |
| Wavelength | Tx 1330nm / Rx 1270nm (single fiber BiDi) |
| Transmission Distance | 20 km |
| Connector | LC (Simplex) |
| Fiber Type | Single-Mode, Single Fiber |
| Optical Output Power | +5 dBm |
| Supply Voltage | 3.3 V |
| Operating Temperature | 0 ~ 70°C |
| DDM / DOM | Yes |
| Certification | CE |

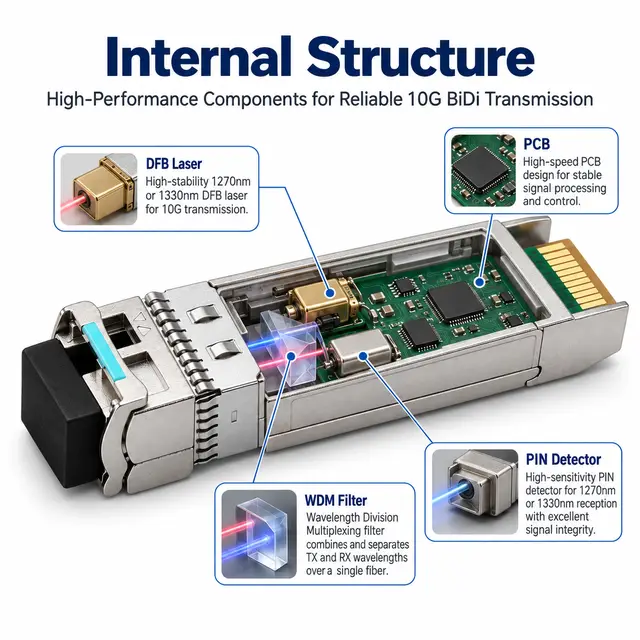

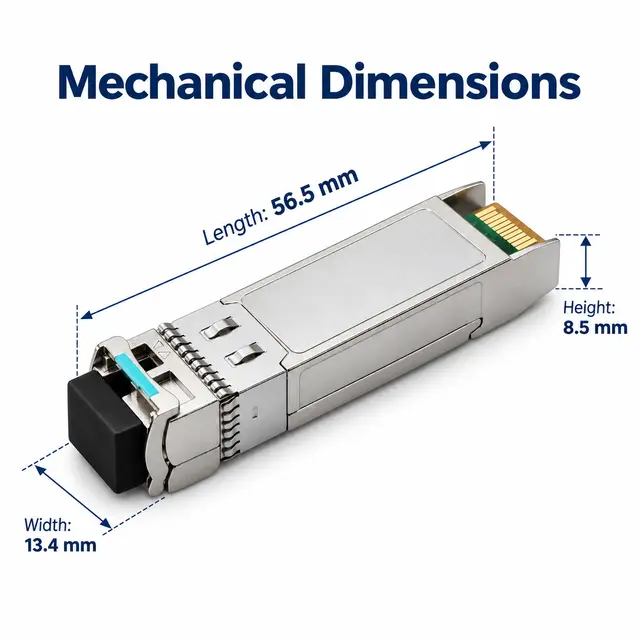

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Build quality
Details that decide reliability.

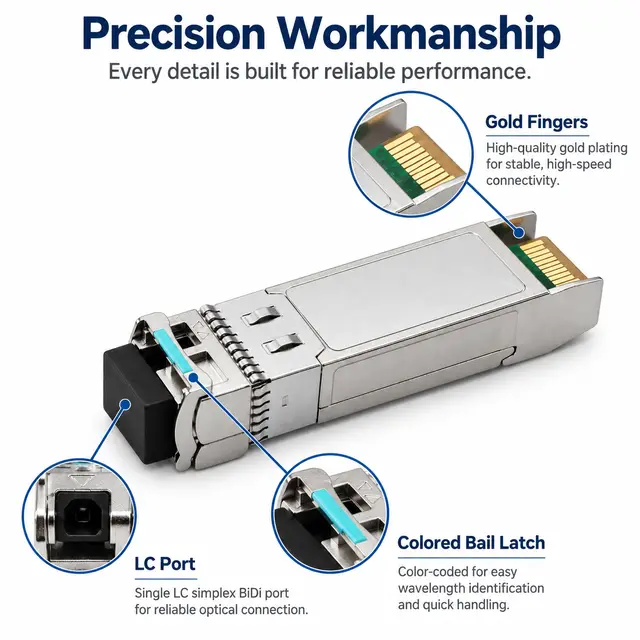

Color-coded bail latch for fast single-fiber pairing
Gold-plated edge connector for stable signaling
Reliable long-term operation with strong thermal stability
Where it is used
Typical applications.
- PON and FTTH access networks
- Metro and enterprise Ethernet
- Switch and data-center interconnect
- 20km single-fiber point-to-point links
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
OEM / ODM
Customization options.

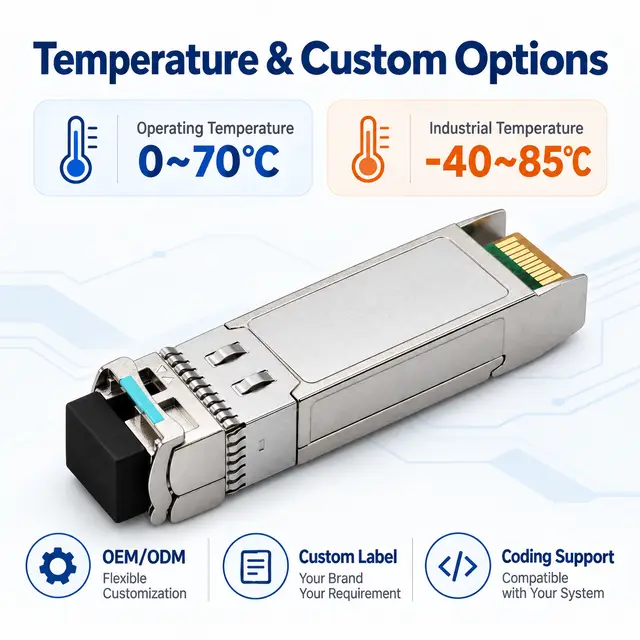

- Commercial (0~70°C) and Industrial (-40~85°C) temperature grades
- OEM/ODM coding for major switch platforms
- Alternative reach options (10–80km)
- Neutral / custom export packaging
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- MOQ
- 1 piece
- Single package size
- 21.9 × 16.9 × 6.2 cm
- Warranty
- 1 year
- Lead time
- samples in stock; bulk built to order
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 10G SFP+ BiDi BX20 20km Tx1330/Rx1270nm Simplex LC SMF DDM?
The listed reach is 20 km. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at Tx 1330nm / Rx 1270nm (single fiber BiDi). Single-fibre BiDi modules must be ordered as matched A/B pairs so the transmit wavelength at one end matches the receive wavelength at the other. Ordering two of the same end will not link.
What connector and fibre does it need?
The listed interface is LC (Simplex) on Single-Mode, Single Fiber. Check that your patch cords, panel adapters and polarity match before installation.
Does it support DDM / DOM diagnostics?
Listed as: Yes. Digital diagnostics report optical transmit power, receive power, bias current, supply voltage and module temperature through the host, which makes commissioning and fault isolation far faster than swapping parts.
Is an industrial temperature version available?
The listed operating temperature is 0 ~ 70°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
More in the procurement FAQ.
