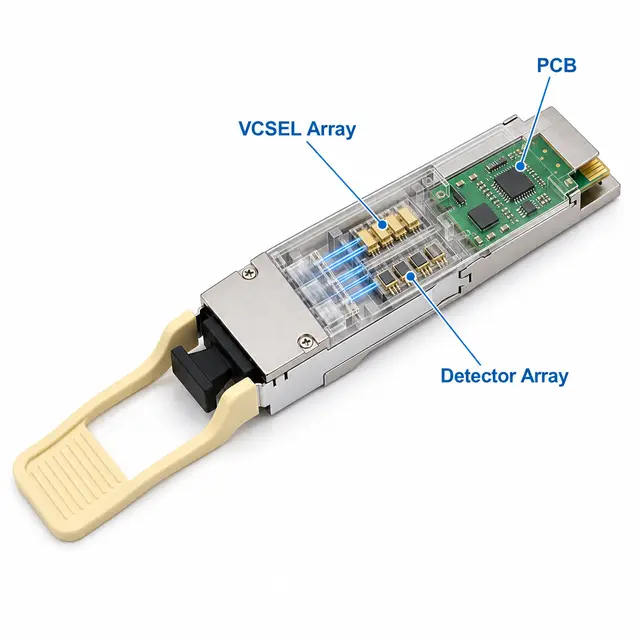

VCSEL array for cost-effective short-reach parallel optics
Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.
100G QSFP28-SR4 100Gb/s 850nm MPO-12 Multimode Fiber Optic
100G QSFP28-SR4 100Gb/s 850nm MPO-12 Multimode Fiber Optic Transceiver

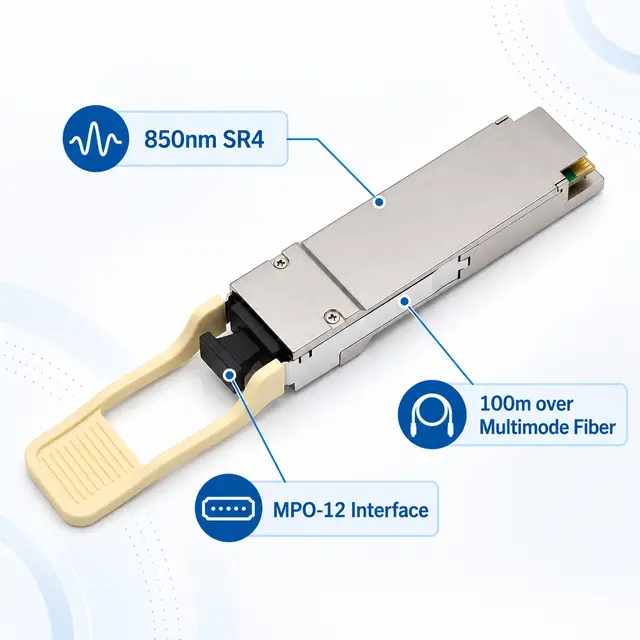

This 100G QSFP28 SR4 transceiver provides short-reach multimode connectivity at 850nm up to 100m over an MPO-12 parallel interface, with DDM monitoring. Built to 100GBASE-SR4 MSA, it is the standard high-density module for data-center switch and Ethernet 100G links.
- 100Gb/s in a compact QSFP28 form factor
- 100GBASE-SR4 multimode short reach up to 100m
- MPO-12 parallel interface for high-density cabling
- Real-time DDM monitoring of optical power, temperature and voltage
- Data rate
- 100 Gb/s
- Wavelength
- 850 nm
- Reach
- 100 m
- Interface
- MPO-12
- Fibre / media
- Multimode Fiber (MMF)
- Diagnostics
- Yes
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
This 100G QSFP28 SR4 transceiver provides short-reach multimode connectivity at 850nm up to 100m over an MPO-12 parallel interface, with DDM monitoring. Built to 100GBASE-SR4 MSA, it is the standard high-density module for data-center switch and Ethernet 100G links.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- 100Gb/s in a compact QSFP28 form factor
- 100GBASE-SR4 multimode short reach up to 100m
- MPO-12 parallel interface for high-density cabling
- Real-time DDM monitoring of optical power, temperature and voltage

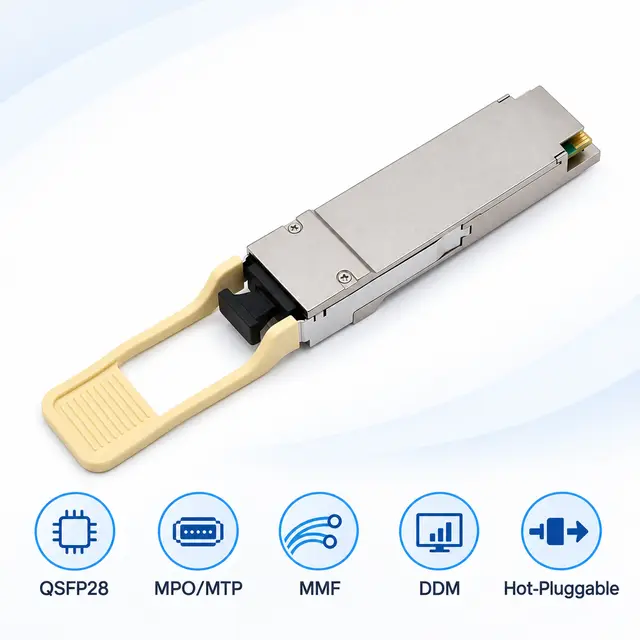

- QSFP28 MSA-compliant, hot-pluggable, plug-and-play
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Type | Fiber Optic Transceiver (QSFP28) |
| Standard | 100GBASE-SR4 |
| Data Rate | 100 Gb/s |
| Form Factor | QSFP28 |
| Wavelength | 850 nm |
| Transmission Distance | 100 m |
| Connector | MPO-12 |
| Fiber Type | Multimode Fiber (MMF) |
| Supply Voltage | 3.3 V |
| Operating Temperature | 0 ~ 70°C |
| DDM / DOM | Yes |

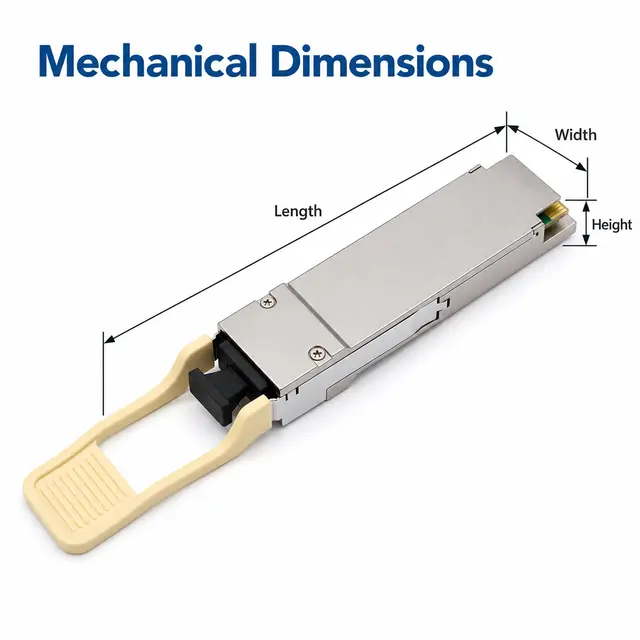

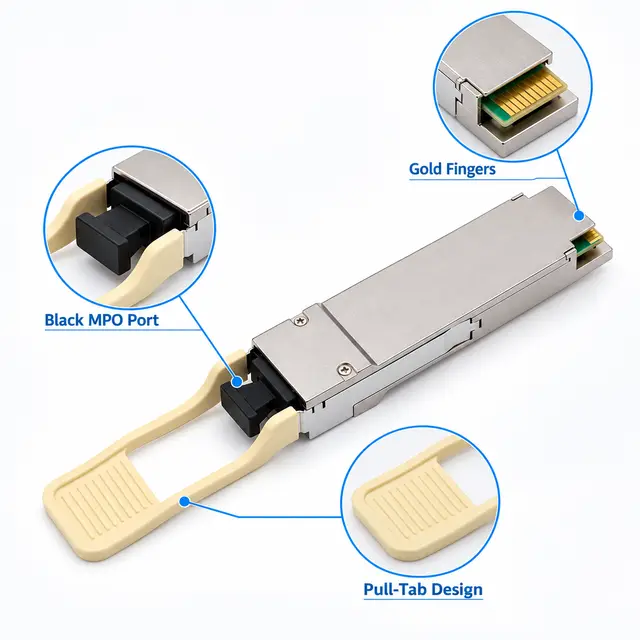

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.
Build quality
Details that decide reliability.
Pull-tab release for high-density QSFP28 port access
Gold-plated edge connector for stable signaling
Efficient thermal design for sustained 100G operation

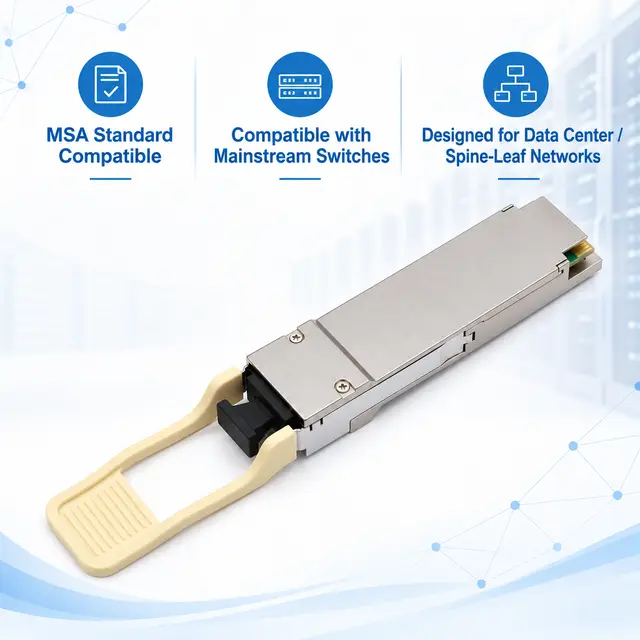

Where it is used
Typical applications.

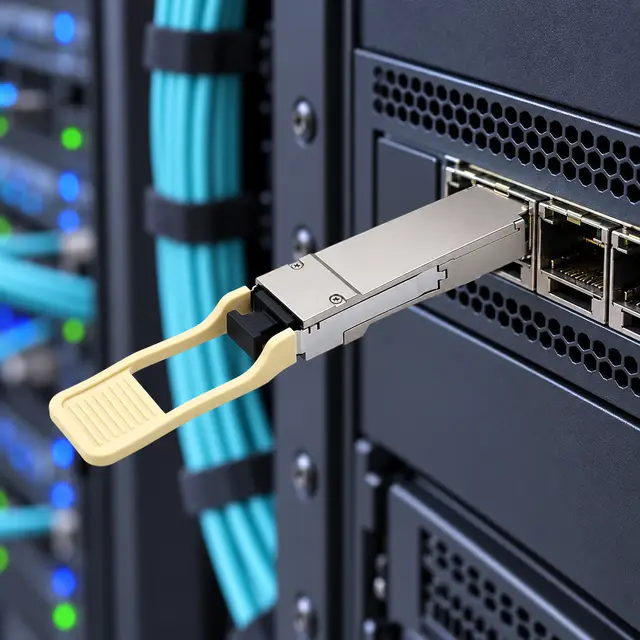

- Data center spine-leaf and ToR-server 100G links
- In-row switch interconnect
- HPC and storage fabrics
- Parallel-optics 100G cabling
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
OEM / ODM
Customization options.
- Commercial (0~70°C) and Industrial (-40~85°C) temperature grades
- OEM/ODM coding for major switch platforms
- OM3/OM4 multimode fiber options
- Neutral / custom export packaging
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- MOQ
- 1 piece
- Single package size
- 23 × 18 × 8 cm; gross weight ~1.5 kg
- Warranty
- 12 months
- Lead time
- samples in stock; bulk built to order
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 100G QSFP28-SR4 100Gb/s 850nm MPO-12 Multimode Fiber Optic?
The listed reach is 100 m. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 850 nm. Both ends of a duplex link must use the same wavelength plan.
What connector and fibre does it need?
The listed interface is MPO-12 on Multimode Fiber (MMF). Check that your patch cords, panel adapters and polarity match before installation.
Does it support DDM / DOM diagnostics?
Listed as: Yes. Digital diagnostics report optical transmit power, receive power, bias current, supply voltage and module temperature through the host, which makes commissioning and fault isolation far faster than swapping parts.
Is an industrial temperature version available?
The listed operating temperature is 0 ~ 70°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
