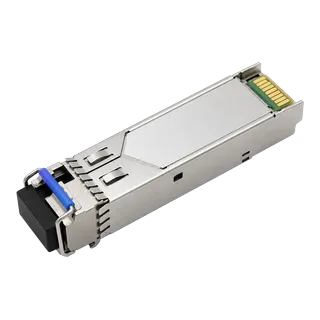

Color-coded bail latch for fast, error-free single-fiber A/B pairing
Product images are illustrative renders for marketing reference; final delivered product is built to order per confirmed specifications.
1.25G BiDi SFP 20km 1310nm/1550nm LC DDM Single-Fiber
1.25G BiDi SFP 20km 1310nm/1550nm LC DDM Single-Fiber Single-Mode Optical Transceiver
This 1.25G Gigabit single-fiber bidirectional (BiDi) SFP transceiver uses an LC simplex interface to transmit and receive over one strand of single-mode fiber up to 20km, pairing 1310nm and 1550nm WDM wavelengths. Built to the SFP MSA standard with DDM, it halves fiber usage for Ethernet, data-center and access links.
- Single-fiber BiDi design — 50% fiber saving over dual-fiber links

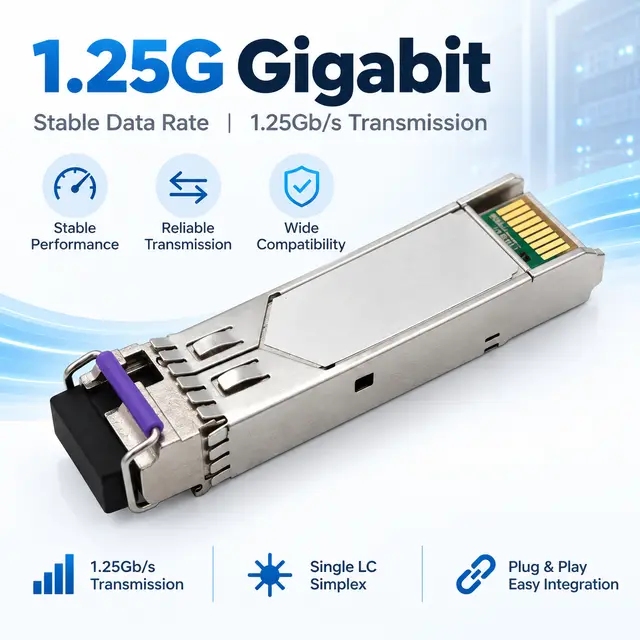

- 1.25Gb/s Gigabit rate with stable optical transmission

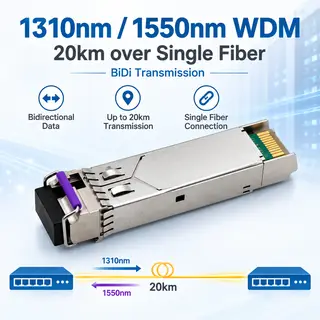

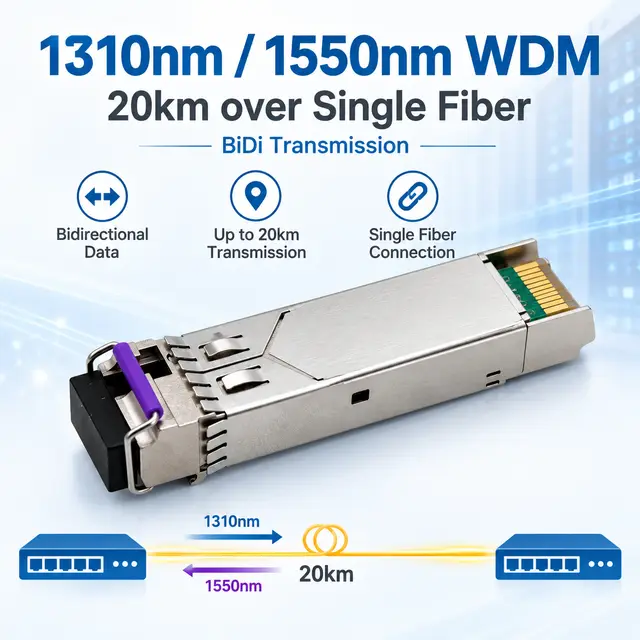

- 1310nm/1550nm WDM pairing, 20km reach on single-mode fiber
- Real-time DDM monitoring of optical power, temperature and voltage
- Data rate
- 1.25 Gb/s
- Wavelength
- 1310nm / 1550nm (WDM, single fiber BiDi)
- Reach
- 20 km
- Interface
- LC (Simplex)
- Fibre / media
- Single-Mode Fiber (SMF)
- Diagnostics
- Yes
- Coded and confirmed for your host platform before production
- Samples for evaluation in the intended port
- Specification, test data and compliance paperwork with the order
Overview
What this module is for.
This 1.25G Gigabit single-fiber bidirectional (BiDi) SFP transceiver uses an LC simplex interface to transmit and receive over one strand of single-mode fiber up to 20km, pairing 1310nm and 1550nm WDM wavelengths. Built to the SFP MSA standard with DDM, it halves fiber usage for Ethernet, data-center and access links.
Review the exact module, host platform and complete link requirement before ordering. Our inquiry keeps the configuration, host details and quantity together in one record.
Check the optical budget for your pathKey selling points
- Single-fiber BiDi design — 50% fiber saving over dual-fiber links
- 1.25Gb/s Gigabit rate with stable optical transmission
- 1310nm/1550nm WDM pairing, 20km reach on single-mode fiber
- Real-time DDM monitoring of optical power, temperature and voltage

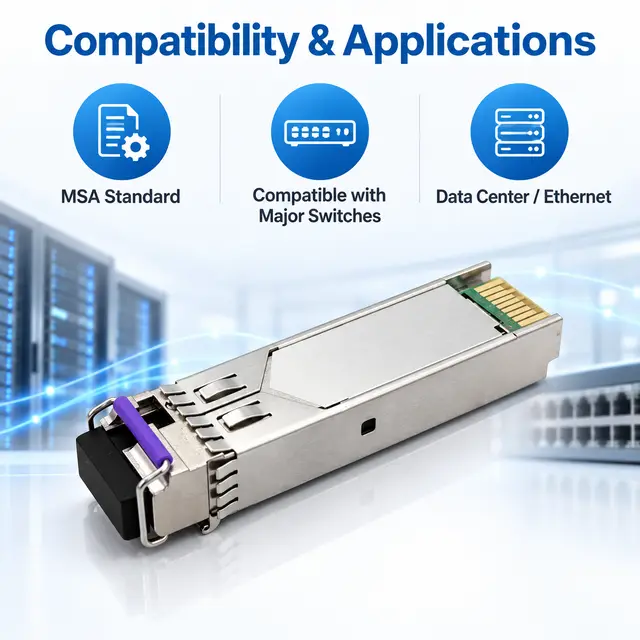

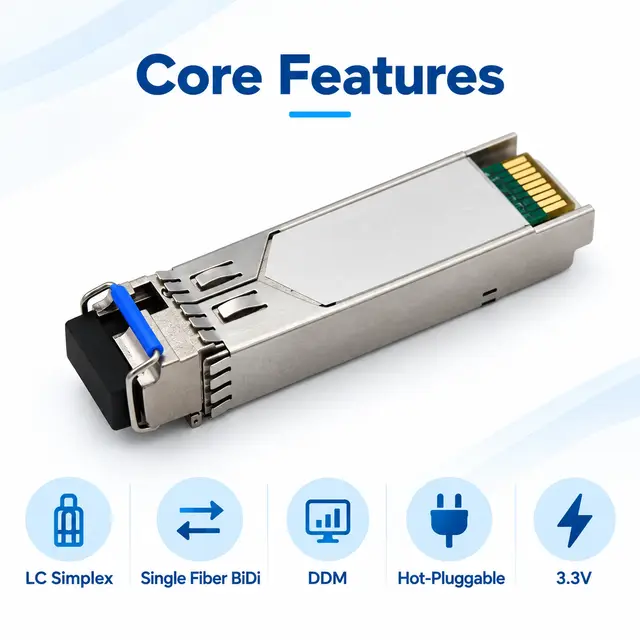

- MSA-compliant, hot-pluggable, 3.3V — plug-and-play with mainstream switches
Technical detail
Listed specifications.
Fields published for initial selection. The production datasheet, coding and marking are confirmed with the quotation.
| Parameter | Listed value |
|---|---|
| Type | Fiber Optic Transceiver (SFP) |
| Data Rate | 1.25 Gb/s |
| Wavelength | 1310nm / 1550nm (WDM, single fiber BiDi) |
| Transmission Distance | 20 km |
| Connector | LC (Simplex) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Optical Output Power | -9 ~ -3 dBm |
| Operating Temperature | 0 ~ 70°C |
| DDM / DOM | Yes |
| Application | Ethernet / Data Center |

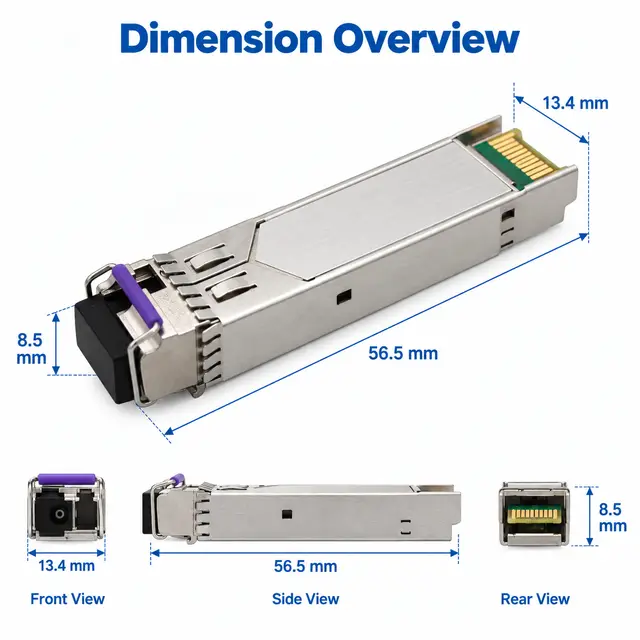

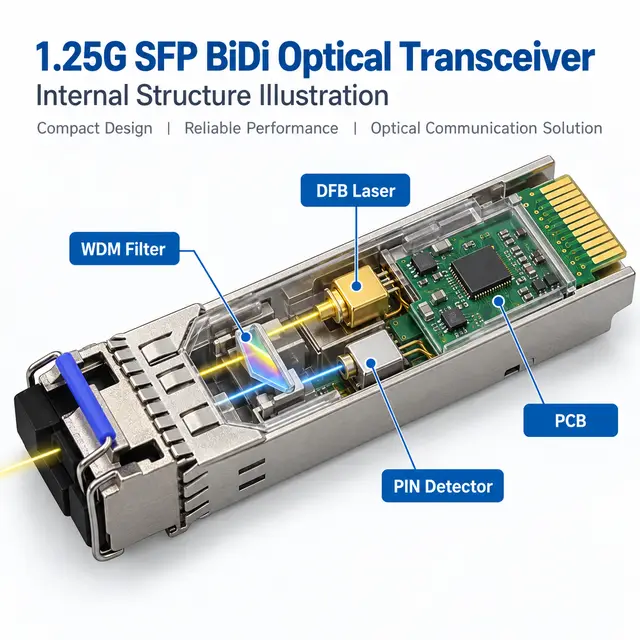

Technical drawings
Dimensions, structure and interfaces.
Supplier drawings for this product family. Click any drawing to enlarge it — the callouts are readable at full size.
Drawings are illustrative. Confirm mechanical dimensions and interface details against the production datasheet before design-in.

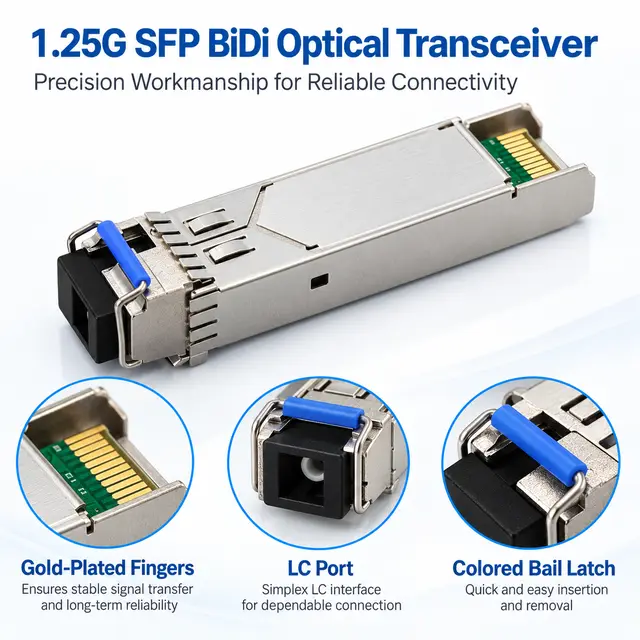

Build quality
Details that decide reliability.
Gold-plated edge connector for high conductivity and stable signaling
Precision LC optical port for reliable long-term connection
Low power consumption with strong thermal stability
Where it is used
Typical applications.

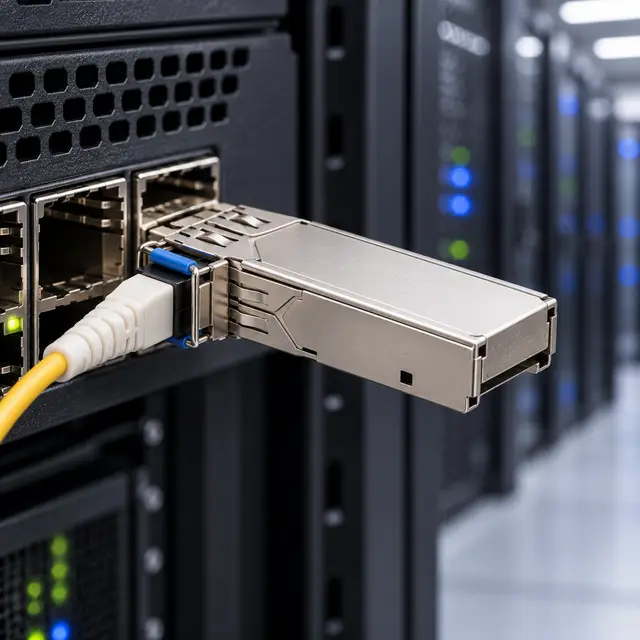

- Data center and IP network aggregation
- Enterprise, campus and metro Ethernet
- FTTX single-fiber access links
- 20km point-to-point single-fiber deployments
Application notes describe common deployments for this product type. Confirm the design of your own link with the responsible engineering team.
Application concepts
OEM / ODM
Customization options.

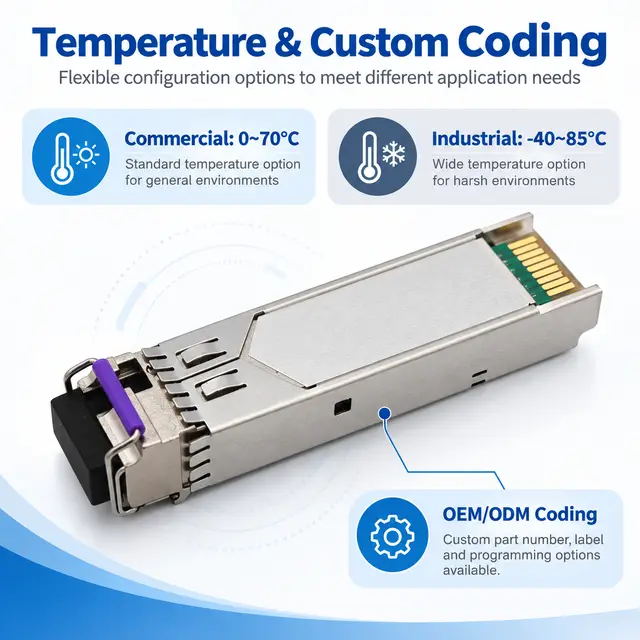

- Commercial (0~70°C) and Industrial (-40~85°C) temperature grades
- OEM/ODM coding for major switch platforms
- Alternative reach options (3–120km)
- Neutral / custom export packaging
Availability, minimum quantity and lead time for customized configurations are confirmed in the quotation.
Discuss a custom configuration
Ordering
What is confirmed, and what we need from you.
Listed ordering information
- MOQ
- 1 piece
- Single package size
- 23 × 18 × 8 cm; gross weight ~1.5 kg
- Warranty
- 12 months
- Lead time
- samples in stock; bulk built to order
Include this in your inquiry
- Product reference and required quantity
- Host brand, model, port and software version
- Fibre or cable type, connector and installed reach
- Operating environment and temperature grade
- Destination, sample needs and requested schedule
MOQ, lead time, warranty and applicable documents are confirmed in the quotation.
FAQ
Questions about this model.
What link distance is listed for the 1.25G BiDi SFP 20km 1310nm/1550nm LC DDM Single-Fiber?
The listed reach is 20 km. Actual distance depends on the installed fibre loss, the number of connectors and splices and the receiver sensitivity at both ends, so confirm the optical budget for your own path before ordering. Our link budget calculator works through the arithmetic in a minute.
Which wavelength does this module use?
It is listed at 1310nm / 1550nm (WDM, single fiber BiDi). Single-fibre BiDi modules must be ordered as matched A/B pairs so the transmit wavelength at one end matches the receive wavelength at the other. Ordering two of the same end will not link.
What connector and fibre does it need?
The listed interface is LC (Simplex) on Single-Mode Fiber (SMF). Check that your patch cords, panel adapters and polarity match before installation.
Does it support DDM / DOM diagnostics?
Listed as: Yes. Digital diagnostics report optical transmit power, receive power, bias current, supply voltage and module temperature through the host, which makes commissioning and fault isolation far faster than swapping parts.
Is an industrial temperature version available?
The listed operating temperature is 0 ~ 70°C. Commercial (0~70°C) and industrial (-40~85°C) grades can be quoted; state the installed environment in your inquiry so the right grade is offered.
Can it be coded for my switch?
Yes. Send the host manufacturer, the exact model and the software version with your inquiry. Coding is confirmed per platform before production — a connector that fits does not by itself prove the host will accept the module.
Can I evaluate a sample first?
Include the required quantity, host platform and destination in your inquiry. Sample availability, charges and lead time are confirmed in the quotation, and we recommend testing in the intended port before a bulk order.
